Product Number: CAT 6 Angled PP 24 1U

AX105360-CAT 6 Angled Patch Panel, 24 Port, 1U, Preloaded, UTP

Name: Belden CAT 6 Angled PP 24 1U
Brand: Belden
SKU: CAT 6 Angled PP 24 1U

Angled Patch Panel, 24-port, 1U with CAT6+ RJ45 Modular Jack

Ships from and sold by A5 IT.

Part numbers

CAT 6 Angled PP 24 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX105360	Black	611589007474	Order online

Suitable Applications	IBDN System CAT6+, TIA Category 6+

Overall Height	1.75 in
Overall Width	19.000 in
Overall Depth	10.440 in
Number of Ports	24 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	2.700 lbs

Description	Panel
Material	Steel

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Data Category	Category 6

Safety Listing	Bi-national Standard Listed

Related Parts	Compatible with CAT6+ Patch Cord and CAT6+ Pre-Terminated Cable Assemblies.

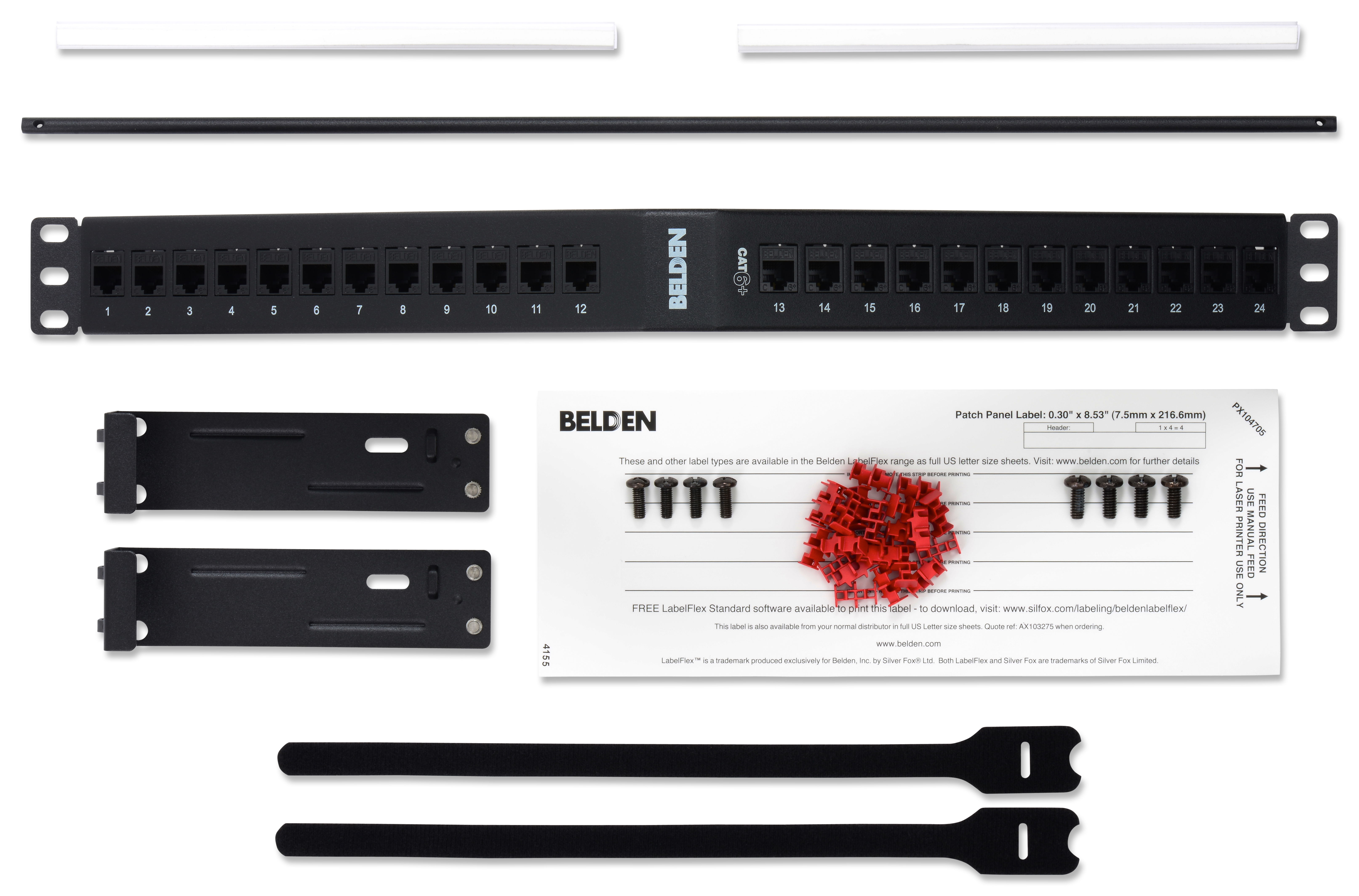

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar.
Notes	Refer to AX102283 for the Specifications of the Modular Jacks
