Product Number: CAT 5E HDPP BIX 48 2U

AX103261-CAT 5E HDPatch Panel, BIX 48 Port, 2U, Preloaded, UTP

Name: Belden CAT 5E HDPP BIX 48 2U
Brand: Belden
SKU: CAT 5E HDPP BIX 48 2U

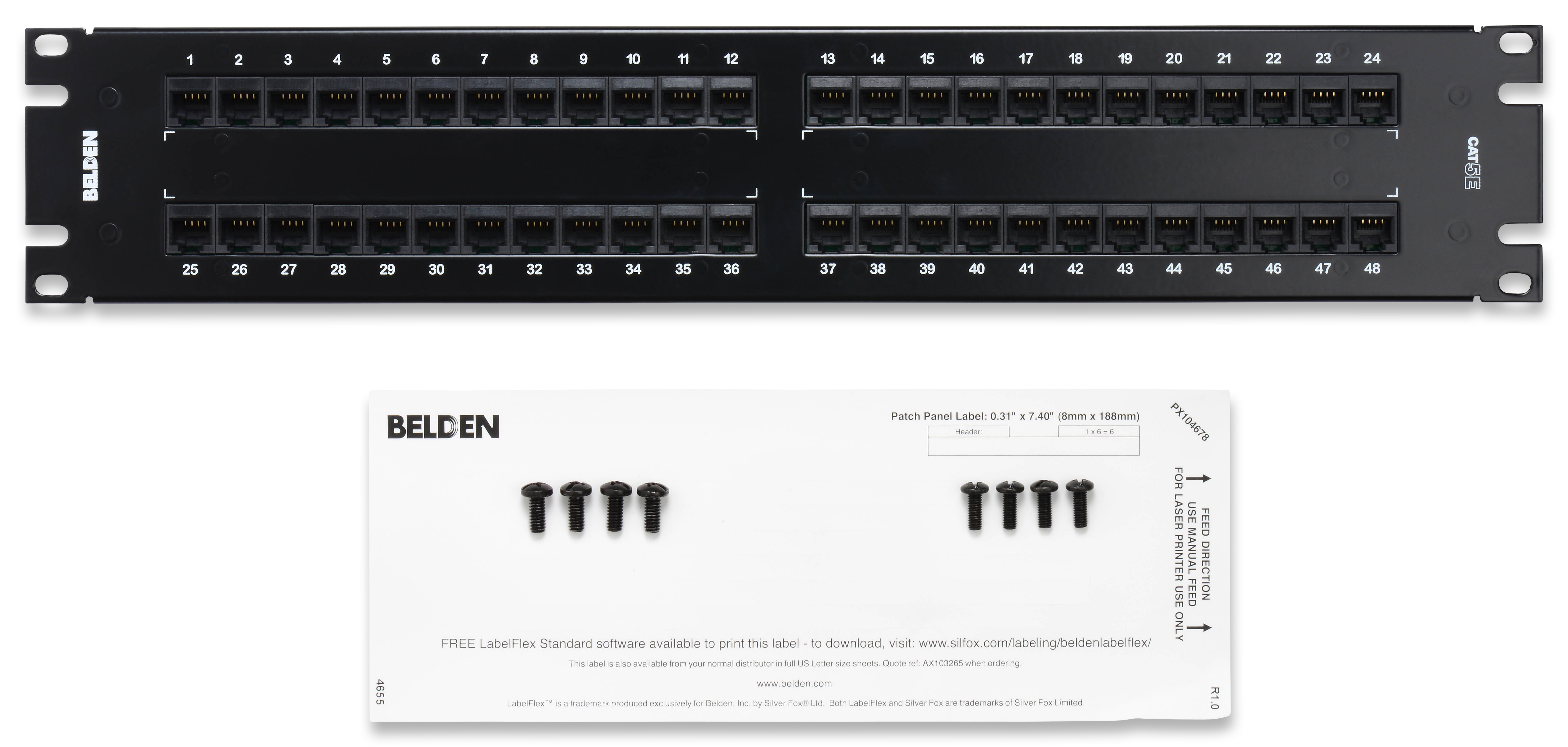

CAT5E HD-BIX Patch Panel, 48-port, 2U

Ships from and sold by A5 IT.

Part numbers

CAT 5E HDPP BIX 48 2U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX103261	Black	611589005791	Order online

Suitable Applications	IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T, 100BASE-T

Overall Height	3.440 in
Overall Width	19.000 in
Overall Depth	1.500 in
Number of Ports	48 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	1.700 lbs

Description	Panel
Material	Steel

Max Capacity	48 connectors (preloaded)

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Connector System Compatibility	HDPP
Tool Compatibility	BIX Connecting Tool (A0270165)
Plug /Jack Compatibility	RJ45
Termination Type	Universal T568A/B

Data Category	Category 5e
TIA/EIA Compliance	Category 5e - TIA 568.B.2, Category 5 - ISO/IEC 11801:2002 Ed.2
Other Standards	FCC Part 68, Subpart F, IEC 60603-7

Safety Listing	ACA, Bi-national Standard Listed

Related Parts	CAT5E Modular Cords

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet;, 1 Installation Guide.
Notes	For proper installation refer to Installation Guide PX100796 included with the product
