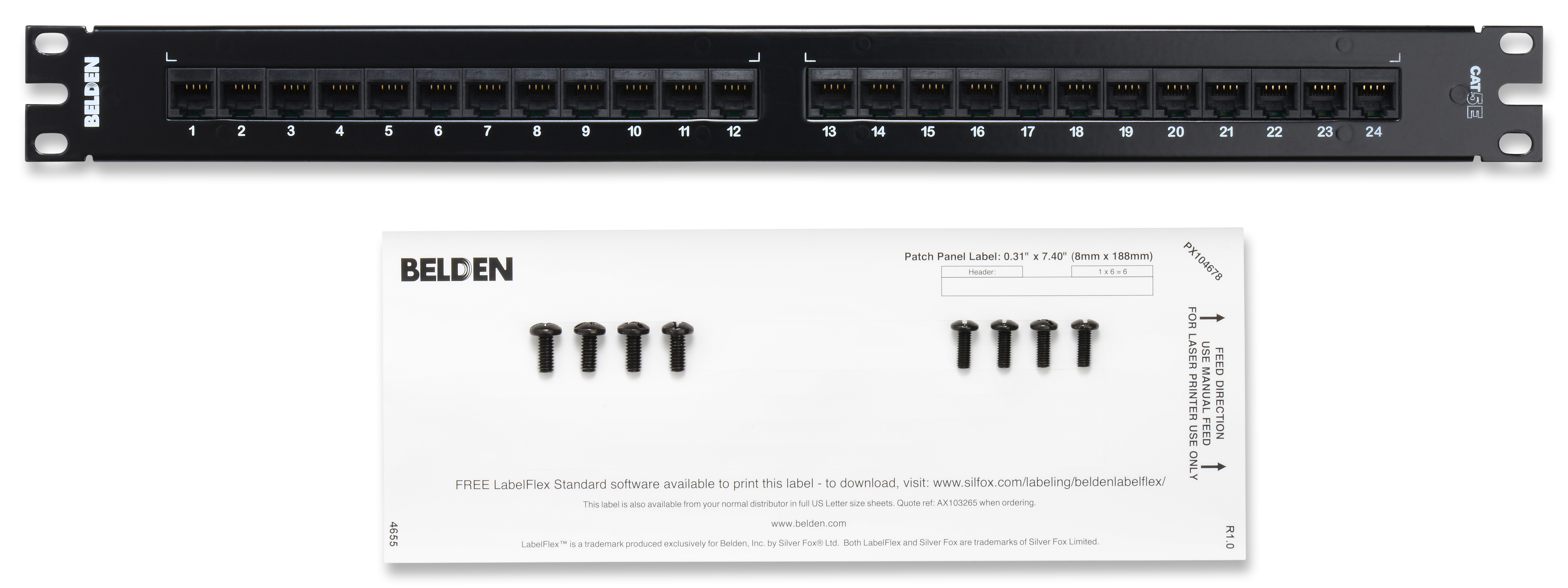

AX103260-CAT 5E HDPatch Panel, BIX 24 Port, 1U, Preloaded, UTP
CAT5E HD-BIX Patch Panel, 24-port, 1U
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T, 100BASE-T |
|---|
Physical Characteristics (Overall)
| Overall Height | 1.75 in |
|---|---|
| Overall Width | 19.000 in |
| Overall Depth | 1.500 in |
| Number of Ports | 24 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 1.200 lbs |
Connectors
Materials
| Description | Panel |
|---|---|
| Material | Steel |
Construction and Dimensions
| Max Capacity | 24 connectors (preloaded) |
|---|
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
| Current Rating | 1.500 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Termination Resistance | 2.5 mOhm |
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Connector System Compatibility | HDPP |
|---|---|
| Tool Compatibility | BIX Connecting Tool (A0270165) |
| Plug /Jack Compatibility | RJ45 |
| Termination Type | Universal T568A/B |
Standards
| Data Category | Category 5e |
|---|---|
| TIA/EIA Compliance | Category 5 - ISO/IEC 11801:2002 Ed.2 |
| Other Standards | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | CAT5E Modular Cords |
|---|
Product Notes
| Included Parts | 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet;, 1 Installation Guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX100796 included with the product |
History
| Update and Revision | Revision Number: 0.311 Revision Date: 02-20-2026 |
|---|
