Product Number: CAT 5E Angled PP 48 1U

AX105359-CAT 5E Angled Patch Panel, 48 Port, 1U, Preloaded, UTP

Name: Belden CAT 5E Angled PP 48 1U
Brand: Belden
SKU: CAT 5E Angled PP 48 1U

Angled Patch Panel, 48-port, 1U with CAT5E RJ45 Modular Jack

Ships from and sold by A5 IT.

Part numbers

CAT 5E Angled PP 48 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX105359	Black	611589007467	Order online

Suitable Applications	IBDN System CAT5E, TIA Category 5E

Overall Height	1.75 in
Overall Width	19.000 in
Overall Depth	10.19 in
Number of Ports	48 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	2.600 lbs

Description	Panel
Material	Steel

Max Capacity	48 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Data Category	Category 5e

Safety Listing	Bi-national Standard Listed

Related Parts	Compatible with CAT5E Patch Cord and CAT5E Pre-Terminated Cable Assemblies

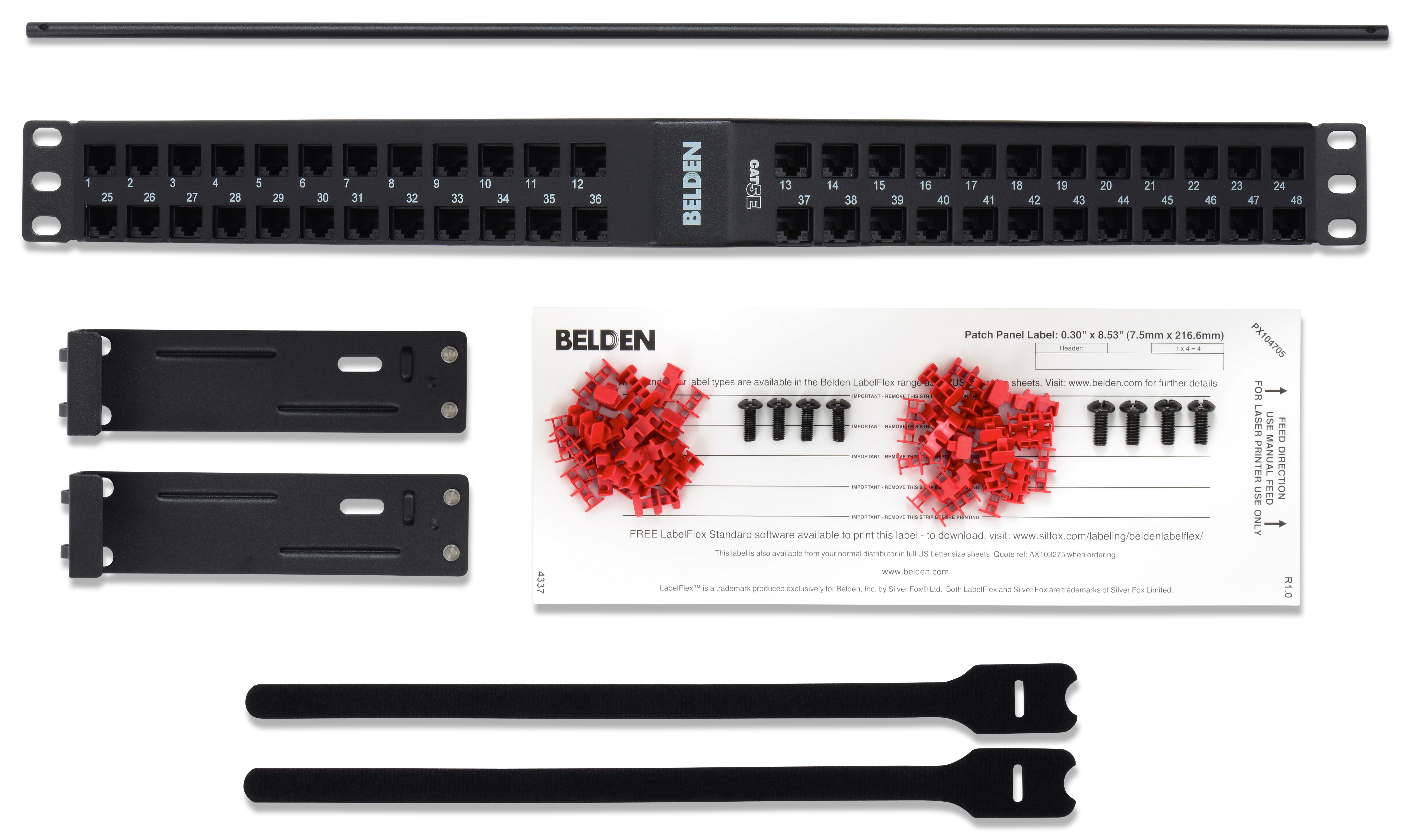

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar.
Notes	Refer to AX102283 for the Specifications of the Modular Jacks.
