Product Number: CAT 5E Angled PP 24 1U

AX105357-CAT 5E Angled Patch Panel, 24 Port, 1U, Preloaded, UTP

Name: Belden CAT 5E Angled PP 24 1U
Brand: Belden
SKU: CAT 5E Angled PP 24 1U

Angled Patch Panel, 24-port, 1U with CAT5E RJ45 Modular Jack

Ships from and sold by A5 IT.

Part numbers

CAT 5E Angled PP 24 1U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
AX105357	Black	611589007443	Order online

Suitable Applications	IBDN System CAT5E, TIA Category 5E

Overall Height	1.75 in
Overall Width	19.000 in
Overall Depth	10.440 in
Number of Ports	24 Port
Front Connection	Angled
Packaging	Individually packaged in a cardboard box.
Weight	2.700 lbs

Description	Panel
Material	Steel

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Data Category	Category 5e

Safety Listing	Bi-national Standard Listed

Related Parts	Compatible with CAT5E Patch Cord and CAT5E Pre-Terminated Cable Assemblies.

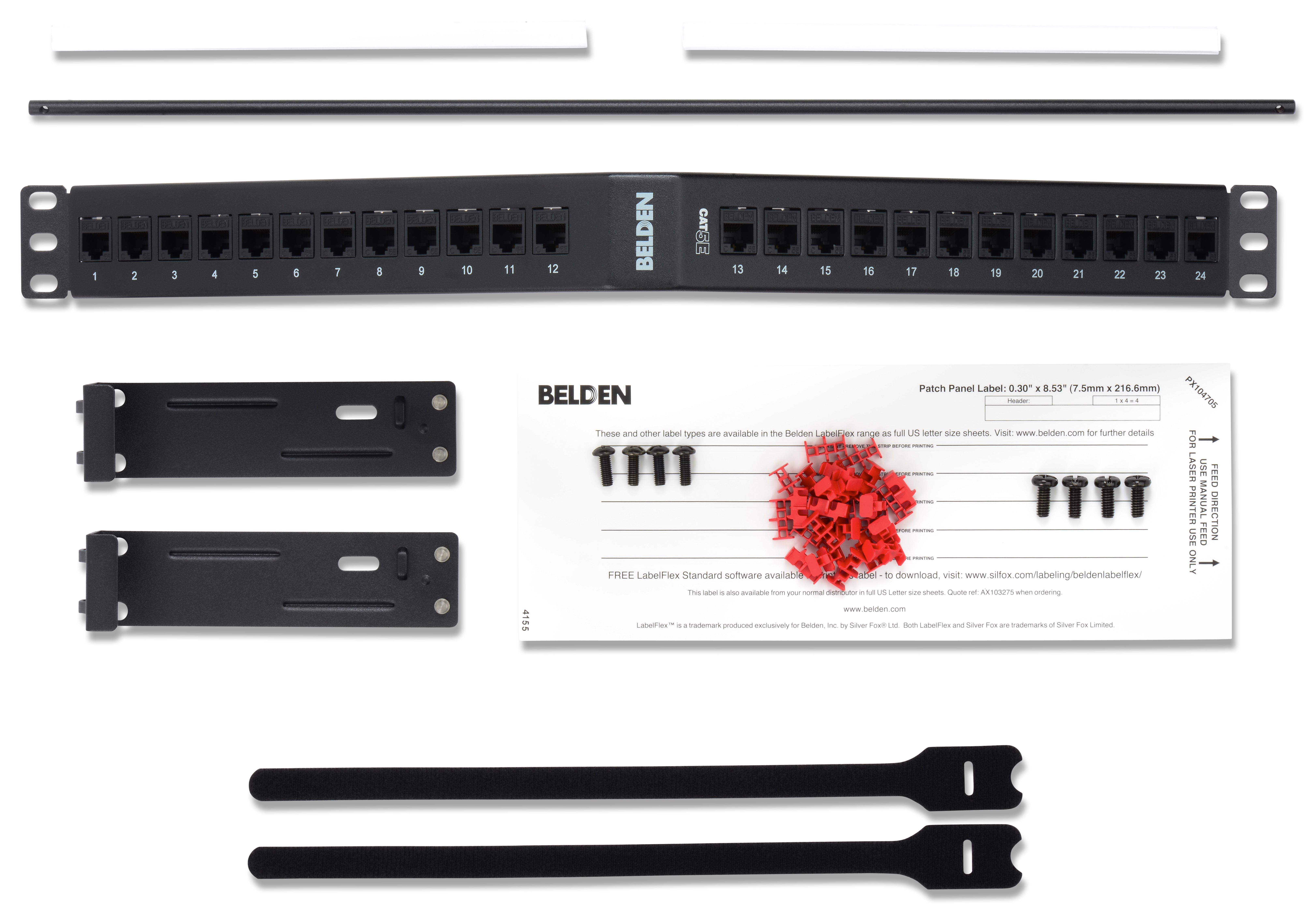

Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar
Notes	Refer to AX102283 for the Specifications of the Modular Jacks
