Product Number: AP106503

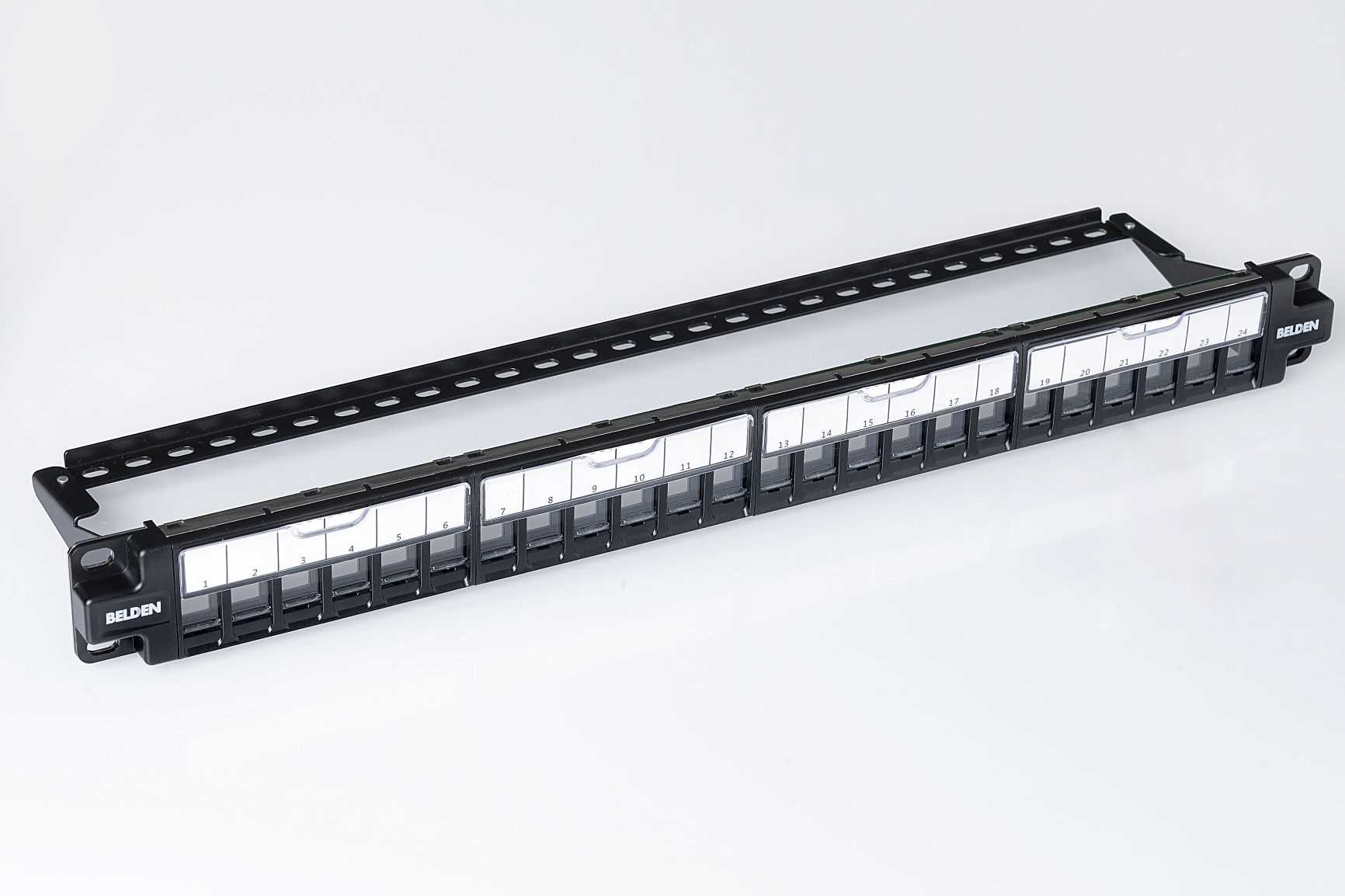

KeyConnect Shielded and Unshielded Patch Panel with Shutter, 24-Port, 1U, Black (Empty)

Name: Belden AP106503
Brand: Belden
SKU: AP106503

KeyConnect Shielded and Unshielded Patch Panel with Shutter, 24-Port, 1U Flat Style, Black (Empty)

Ships from and sold by A5 IT.

Part numbers

AP106503 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
AP106503	Black	1U	Order online

Suitable Applications	Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200.

Overall Height	44.5 mm
Overall Width	482.6 mm
Overall Depth	110 mm
Number of Ports	24 Port
Front Connection	Flush
Packaging	Individually packaged in a cardboard box.
Weight	0.8 kg

Description	Material
Panel Body	SPCC
Transparent Shutter & Label Holder	PC
Black Plastic	ABS

Max Capacity	24 connectors

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

EU Directive 2011/65/EU (RoHS 2)	Yes

Suitability - Indoor	Yes

Related Parts	Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks, REVConnect Modular Jacks as well as KeyConnect Multimedia Modules.

Included Parts	4 Screws (M6*16); 4 M6 Nuts; 1 Ground Wire(200mm), Rear Cable Management Bar, Cable Ties
Notes	For proper installation refer to Installation Guide PX105408 included with the product
