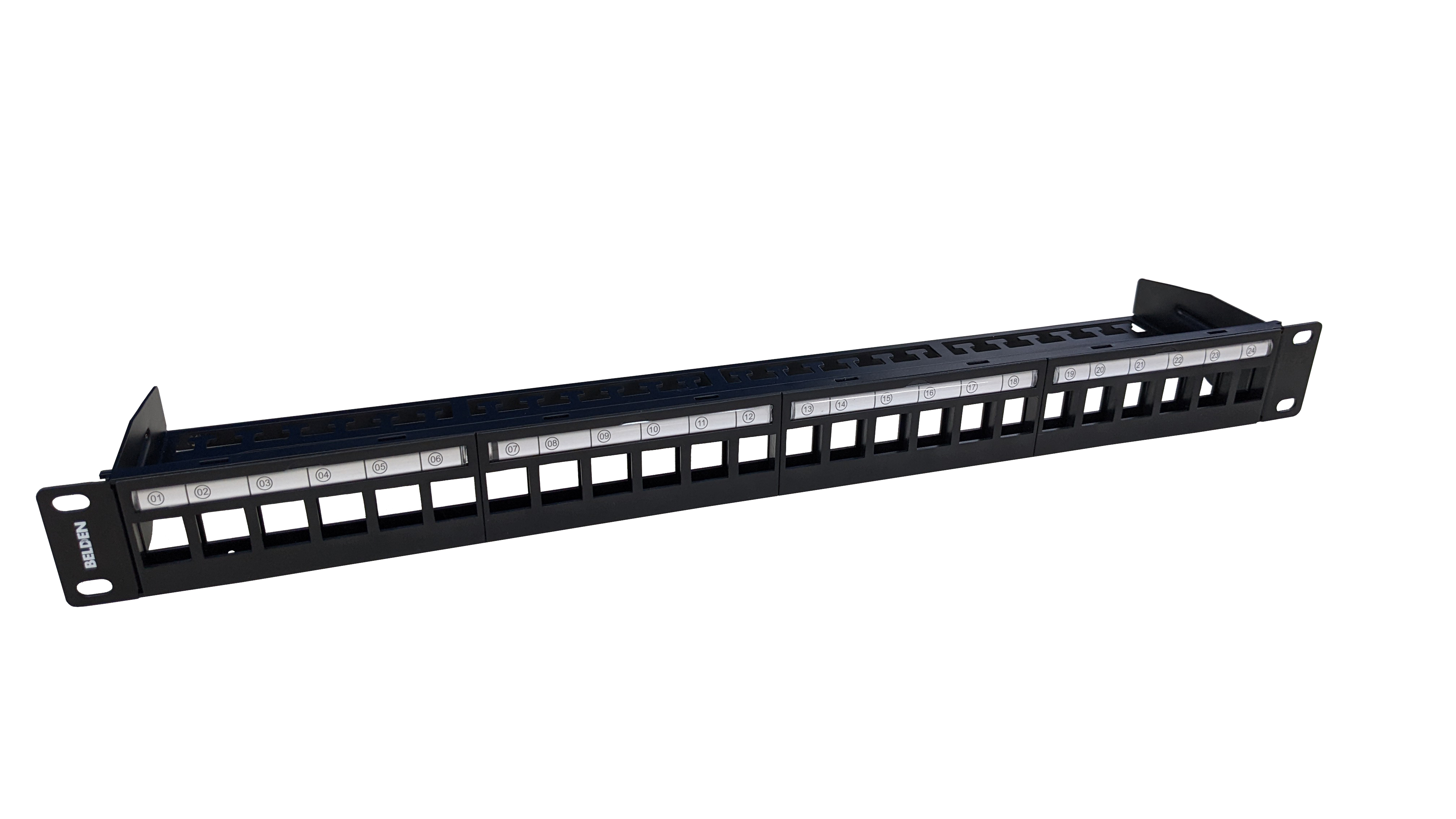

Unshielded Patch Panel, 24-Port, 1U, Black (Empty)
Unshielded Patch Panel, 24-Port, 1U Flush style, Black (Empty)
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of keystone multimedia modules that are suitable for Belden Cat 5e, Cat 6, and Cat 6A. |
|---|
Physical Characteristics (Overall)
| Overall Height | 44 mm |
|---|---|
| Overall Width | 483 mm |
| Overall Depth | 96.6 mm |
| Number of Ports | 24 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box. |
| Weight | 0.75 kg |
Connectors
Materials
| Description | Material |
|---|---|
| Frame | SPCC |
| Front Plastic Panel | ABS |
Construction and Dimensions
| Max Capacity | 24 connectors |
|---|
Temperature Range
| Storage Temperature Range | -40°C To +70°C |
|---|---|
| Operating Temperature Range | -10°C To +60°C |
Applicable Environmental and Other Programs
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|
Suitability
| Suitability - Indoor | Yes |
|---|
Related Part Numbers
| Related Parts | Compatible with 10GX, CAT6+ and CAT5E keystone UTP Modular Jacks as well as keystone Multimedia Modules. |
|---|
Product Notes
| Included Parts | 4 Screws (M6*15) Cross pan head screw; 4 Cable Ties 150mm; 4 M6 Cage nut; Cable Management Bar |
|---|---|
| Notes | Suitable for 19" wide rack, for proper installation refer to Installation Guide PX105408 included with the product |
History
| Update and Revision | Revision Number: 0.20 Revision Date: 10-06-2022 |
|---|
