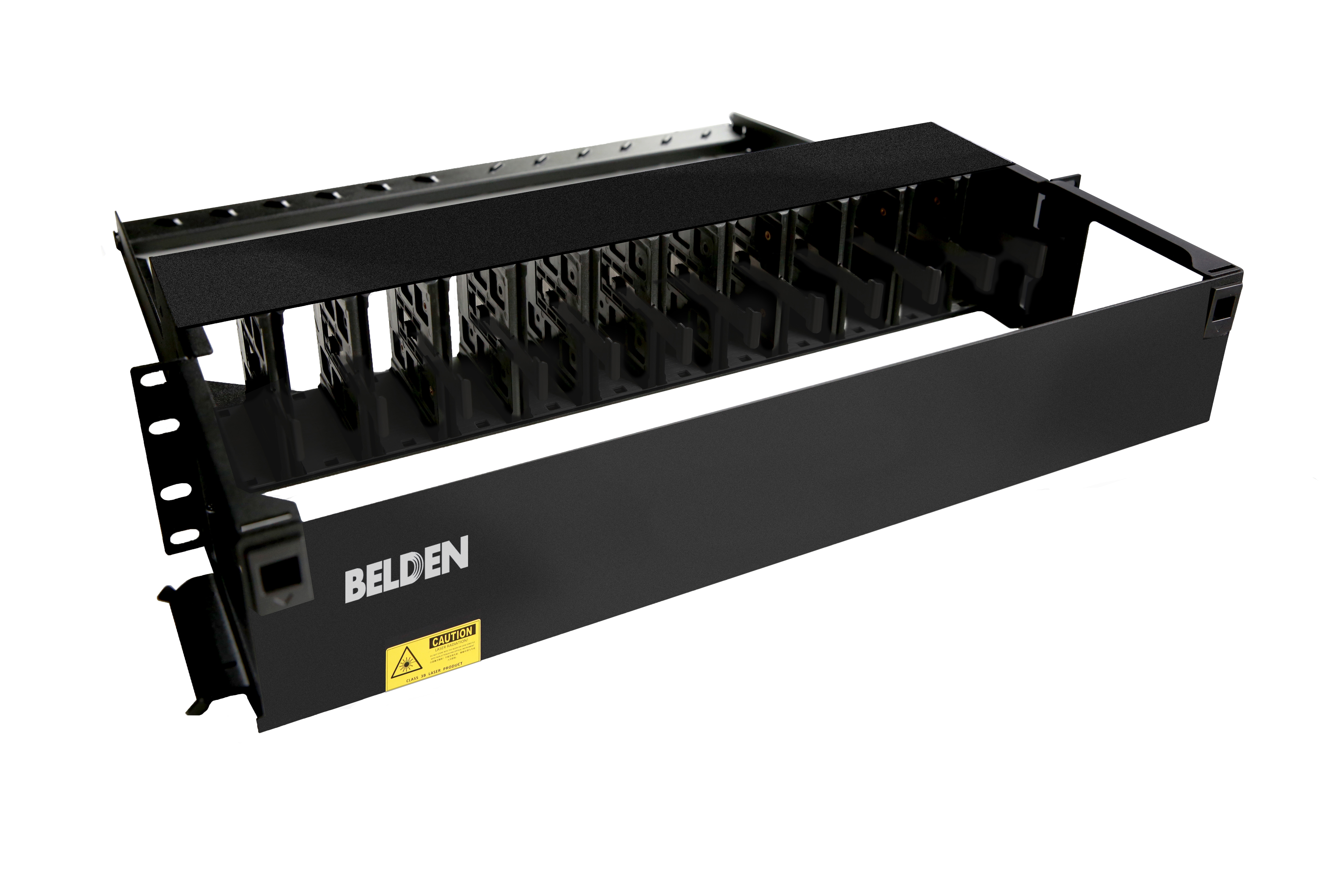

AP104220-FX 2U Rack Mount Patch Panel Housing
FX 2U Rack Mount Housing, front-access design, holds up to 12 KeyConnect module cassettes, Black (Empty)
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | This 2U/19 in. copper and fiber multipurpose patch panel is suitable to mount with 19 in. standard equipment rack and cabinet located in central office equipment bays and especially designed for hospitality one-to-one management. |
|---|
Physical Characteristics (Overall)
| Overall Height | 89 mm |
|---|---|
| Overall Width | 482 mm |
| Overall Depth | 385 mm |
| Number of Ports | 48 Port |
| Weight | 3.6 kg |
Connectors
Materials
| Material | Color |
|---|---|
| SPCC | Black |
| ABS | Black |
Temperature Range
| Storage Temperature Range | -40°C To +70°C |
|---|---|
| Operating Temperature Range | -10°C To +60°C |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| MII Order #39 (China RoHS) | Yes |
Related Part Numbers
| Related Parts | KeyConnect module cassettes: AP104223; Blank plate for unoccupied slot: AP104221 |
|---|
Product Notes
| Included Parts | Velcro tape, Cage nuts, Screws and Label |
|---|---|
| Notes | Number of Slots:12 Slots |
History
| Update and Revision | Revision Number: 0.20 Revision Date: 11-19-2024 |
|---|
