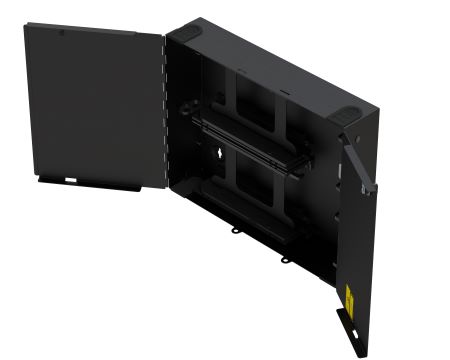

FX ECX Wall-Mount Patch Panel, 4-Module
FX ECX Wall-Mount Patch Panel, 4-Module, Black, Empty
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
ECX-04WM is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| ECX-04WM | Black | Order online |
| ECX-04WM | Black | Order online |
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
|---|
Construction
| Weight | 15.600 lbs |
|---|---|
| Overall Height | 16.2 in |
| Overall Width | 20.70 in |
| Overall Depth | 4.400 in |
Physical Specifications
| Max Capacity | 4 Cassettes/Frames: 128 Fibers (LC); 64 Fibers (SC) |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Wall Mount Module | Steel | Black |
| Cassette Rail Assembly | PC/ABS | Black |
| Grommet | Elastomer | Black |
| Management clip | Polycarbonate | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | ECX-WALLMOUNT-04; Bonding Wire Kit; (4) Wood Screws, (8) Velcro Straps; (8) Adhesive Velcro Hook ; Identification Label, Installation Guide |
|---|---|
| Related Parts | FiberExpress ECX Cassettes & Frames, Fiber Patch Cords, Distribution Fiber Cable |
Product Notes
| Notes | For more information, please refer to our web site at http://www.belden.com . Installation Guide: TBD |
|---|
History
| Update and Revision | Revision Number: 0.16 Revision Date: 02-12-2025 |
|---|
