Product Number: AP100045

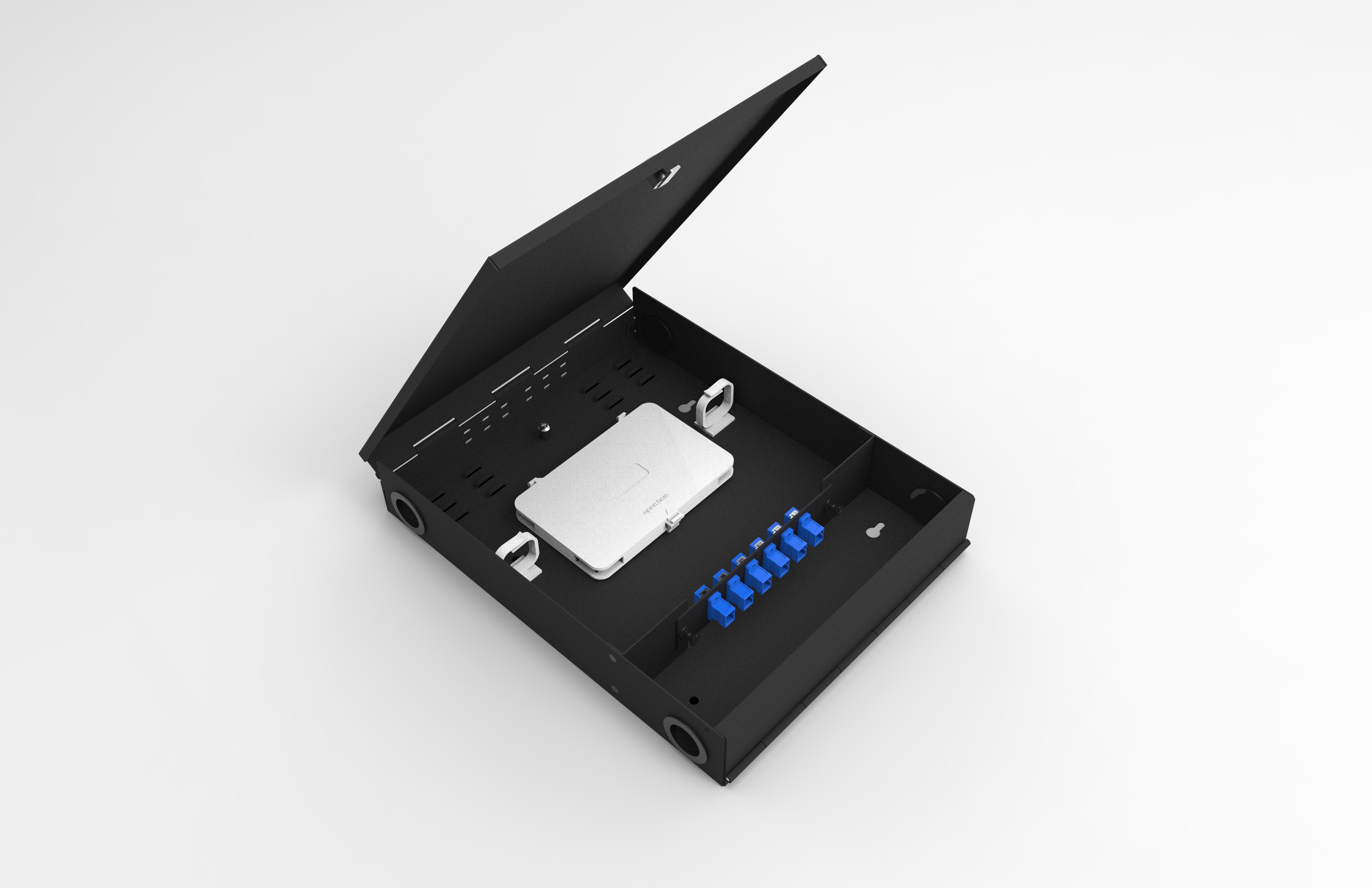

Fiber Wall Mount Patch Panel with Lock, Black

Availability: Asia Pacific
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

AP100045 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Order
AP100045	Black	Order online

Specifications

Product Overview

Environmental Space

Indoor

Suitable Applications

Space saving: the compact dimension (56.8mm*322.6mm*253.6mm) is suitable for applications with limited space, Flexible design for fiber accommodation: Support up to 24 fibers (LC connector), 12 fibers (SC connector), Splice tray and kit: support for fiber splicing and cable management, Lockable door to restrict unauthorized access, Easy installation and maintenance: foldable door is easy for installation and maintenance.

Construction

Overall Height	253.6 mm
Overall Width	322.6 mm
Overall Depth	56.8 mm

Physical Specifications

Max Capacity	upto 24F (LC adapter Strip)

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Description	Panel
Material	Aluminum

Standards

ISO/IEC Compliance	ISO 2768-1

Related Part Numbers

Included Parts	Wire management saddles, Velcro tapes, Fiber heat shrink tube, Lock key
Related Parts	This wall mount fiber patch panel is fully compatible with Belden fiber adapter strip & KeyConnect Frame (AP100065). KeyConnect Frame can support 6 ports unshielded KeyConnect modular jack or KeyConnect LC & SC adapter. Please contact our sales representatives for further information.

Product Notes

Notes	AP100065 KeyConnect Frame, KeyConnect modular jack or KeyConnect LC & SC adapters need to be purchased separately. Rubber Gromment Diameter: ø 28 mm
