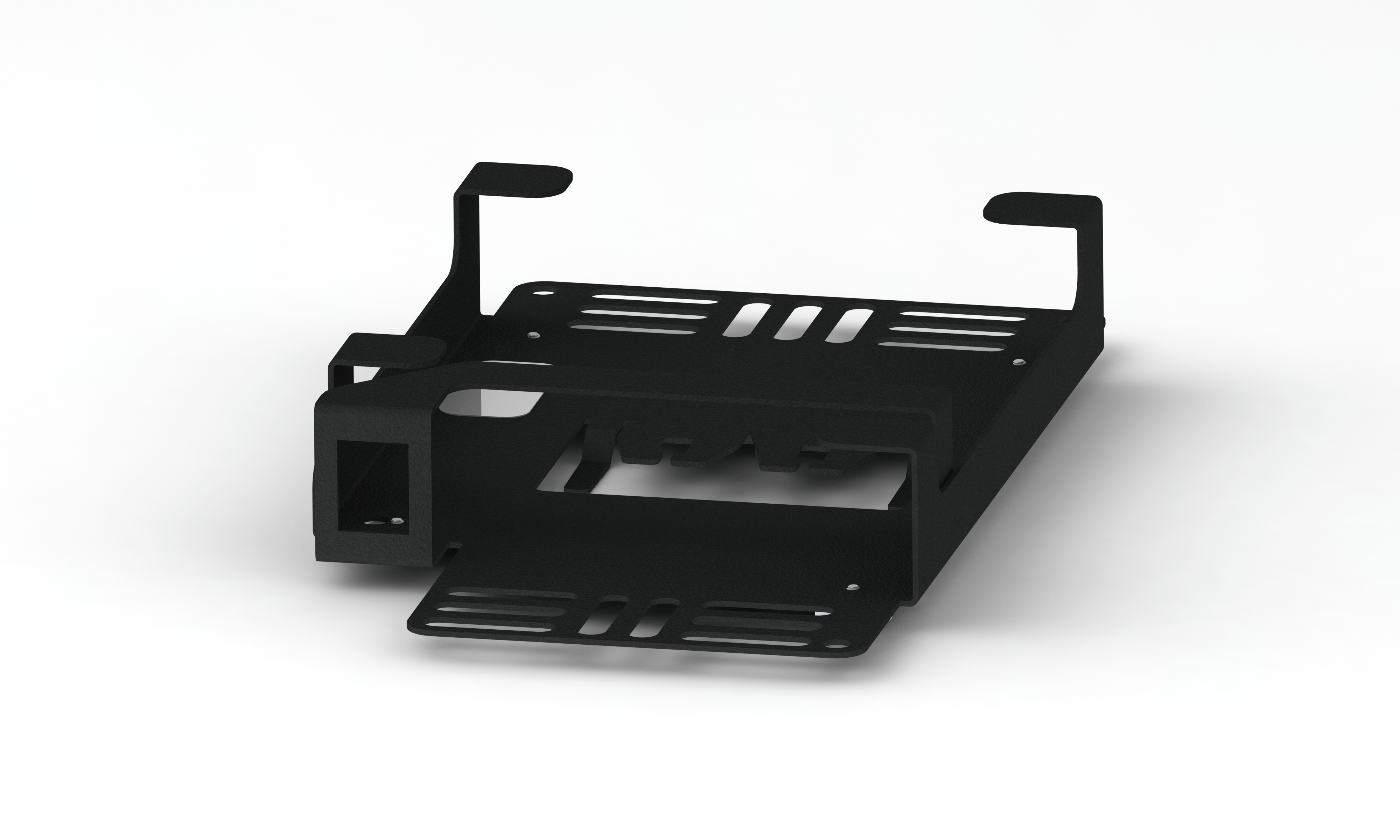

DCX 0U Magnetic Tray, Small
DCX Zero U Tray, Small, Holds 3 Cutouts (1 Base-12 Cassette) with Magnets
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
DCX-ZUTR-S is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| DCX-ZUTR-S | Black | Order online |
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
|---|
Construction
| Weight | 0.770 lbs |
|---|---|
| Overall Height | 1.530 in |
| Overall Width | 5.220 in |
| Overall Depth | 9.530 in |
Physical Specifications
| Max Capacity | 1 Cassette (Base-12) and 1 Copper Connectors |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -40°C to +70°C |
Product Material
Materials
| Description | Panel |
|---|---|
| Material | Steel |
Standards
| TIA/EIA Compliance | EIA/ECA 310 |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | (2x) Velcro Cable Ties; (4x) Screws |
|---|---|
| Related Parts | FX DCX Cassettes/Adapter Frames |
Product Notes
| Packaging | Individually packaged in a cardboard box. |
|---|---|
| Notes | For more information, please refer to the Quick Start Guide PX107082 on our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.94 Revision Date: 12-12-2022 |
|---|
