BeldenDCXS21-00000-22
Faceplates and Panels - DCX Cabinet RL

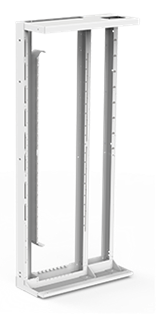

DCX CABINET SEISMIC 84x36x15, RIGHT-LEFT, WHITE, NO TOP PNL, NO BOTTOM PNL, NO DOORS, NO SIDE PNL, NO REAR PANL, 8 CBL ATTACH, 8 SPOOLS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room (Broadcast) |
|---|
Construction
| Weight | 165 lbs |
|---|---|
| Overall Height | 84 in |
| Overall Width | 36 in |
| Overall Depth | 15 in |
Physical Specifications
| Max Capacity | 4608 Terminations (LC) 8 Housings |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +60°C |
Product Material
Materials
| Description | Frame Unit |
|---|---|
| Material | Steel/Aluminum |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|---|
| Other Specification | Seismic Rating (Zone 4) |
Related Part Numbers
| Included Parts | 8 Cable Distribution Attachment assemblies, 8 spools |
|---|
Product Notes
| Notes | For more information, please refer to our web site at http://www.belden.com |
|---|
History
| Update and Revision | Revision Number: 0.73 Revision Date: 10-23-2025 |
|---|
