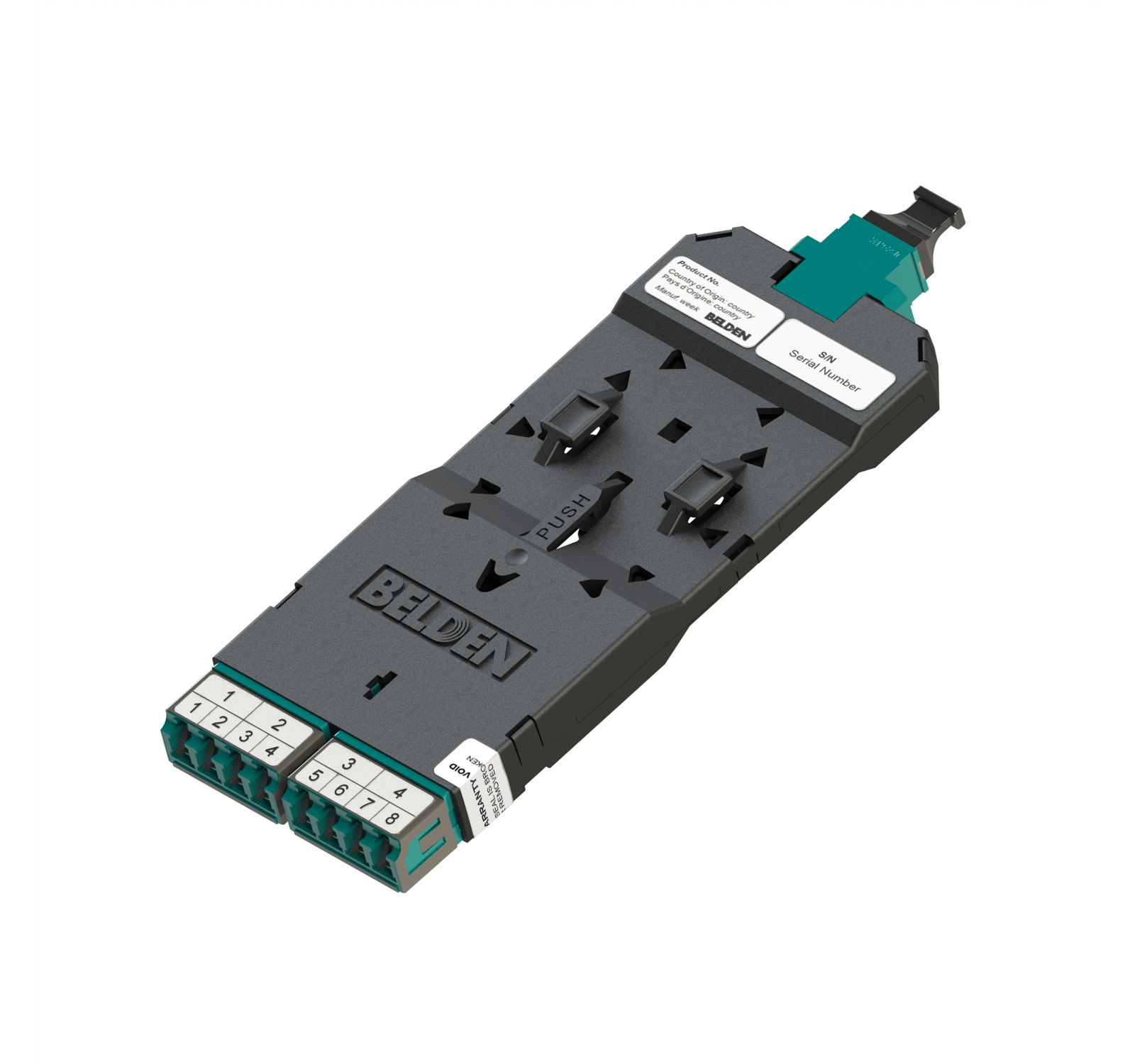

FX DCX Cassette, OM3, 04 Ports LC Duplex to MPO-12 (Female) Base 8
FX DCX Cassette, OM3, 04 Ports LC Duplex to MPO-12 (Female) Base 8, Aqua Adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FC3D04LD4F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Polarity Identification | Order |
|---|---|---|---|---|
| FC3D04LD4F | Aqua | LC Duplex | SR4 | Order online |
Specifications
Information
| Polarity Identification | SR4 |
|---|---|
| Update and Revision | Revision Number: 0.63 Revision Date: 10-21-2025 |
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Weight | 0.092 lbs |
|---|---|
| Overall Height | 0.448 in |
| Overall Width | 2.260 in |
| Overall Length | 4.795 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Aqua |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Patch Side | LC Duplex | 0.25 dB | 30 dB |
| Trunk Side | MPO12(F)/8F | 0.35 dB | 30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.63 Revision Date: 10-21-2025 |
|---|
Resources
Related optical distribution frame system
FC3D06LDMF
FX DCX Cassette, OM3, 06 Ports LC Duplex to MPO-12 (Female)
1 item

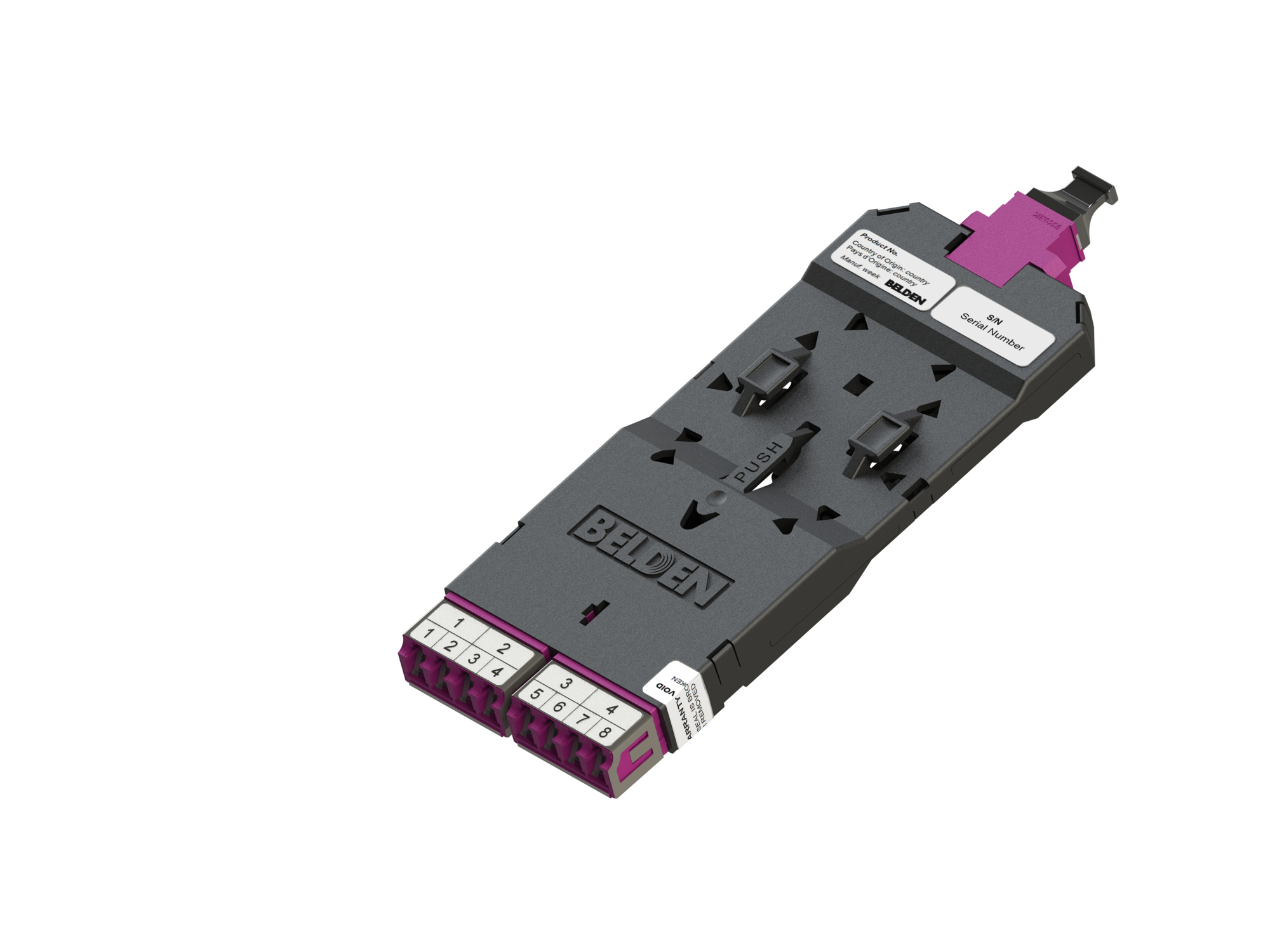

FC4D04LD4F
FX DCX Cassette, OM4, 04 Ports LC Duplex to MPO-12 (Female) Base 8
1 item
FC4D06LDMF
FX DCX Cassette, OM4, 06 Ports LC Duplex to MPO-12 (Female)
1 item

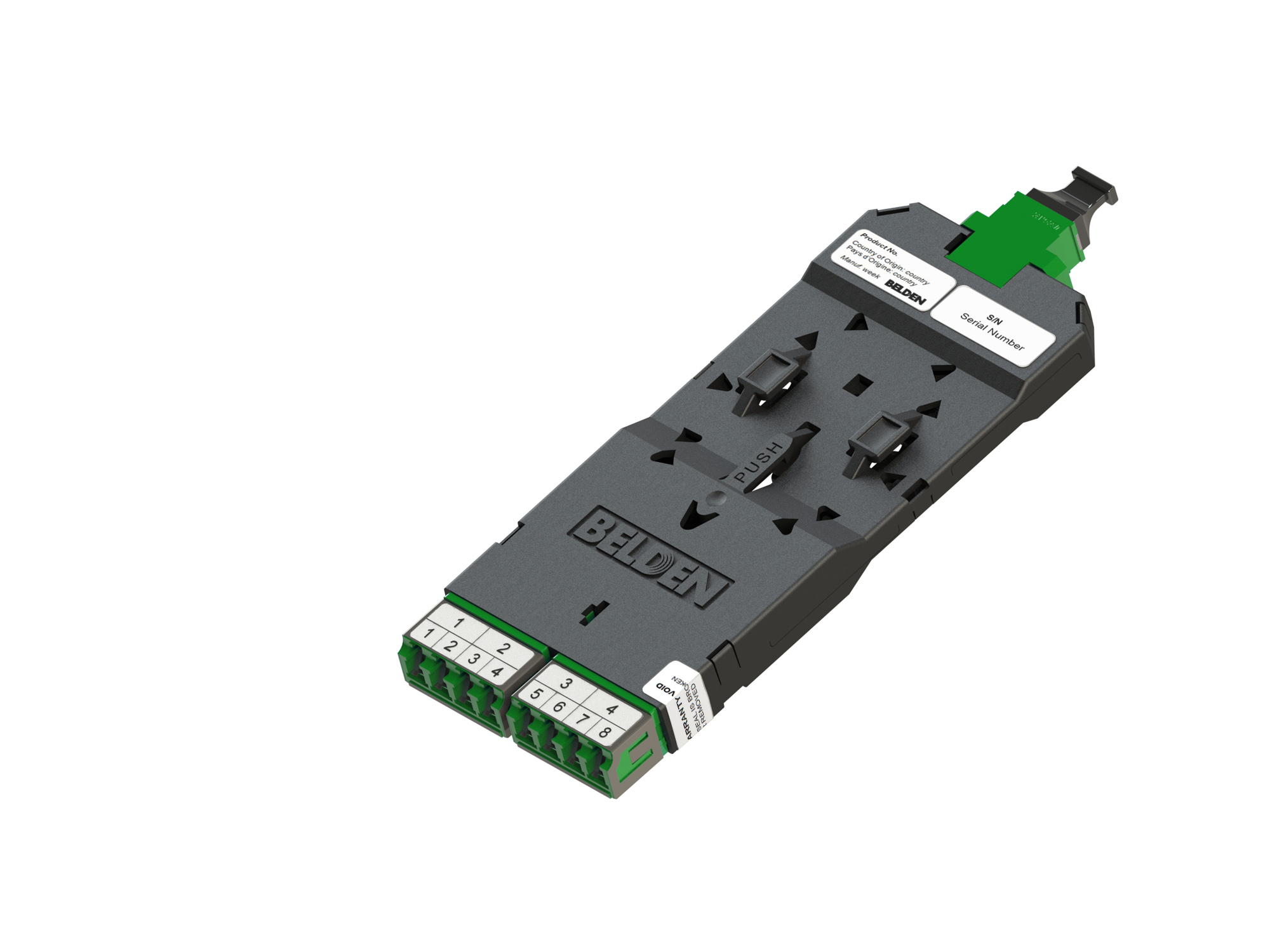

FCSD04LA4F
