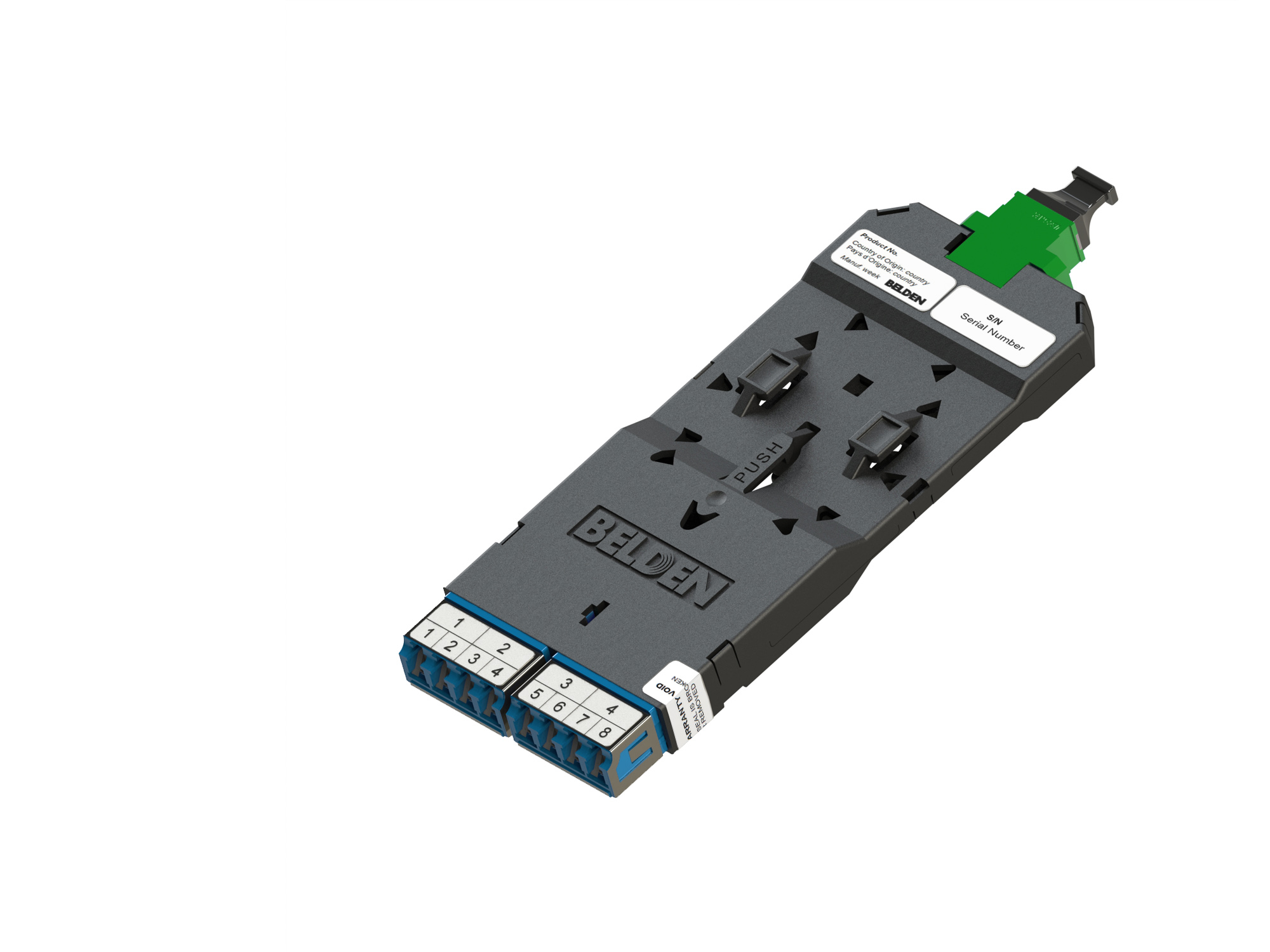

FX DCX Cassette, OS2, 04 Ports LC Duplex to MPO-12 (Female) Base 8
FX DCX Cassette, OS2, 04 Ports LC Duplex to MPO-12 (Female) Base 8, Blue Adapters
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FCSD04LD4F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Order |
|---|---|---|---|
| FCSD04LD4F | Blue | LC Duplex | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Weight | 0.092 lbs |
|---|---|
| Overall Height | 0.448 in |
| Overall Width | 2.260 in |
| Overall Length | 4.795 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -10 to 60°C |
Product Material
Materials
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Blue |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.55 Revision Date: 10-21-2025 |
|---|
