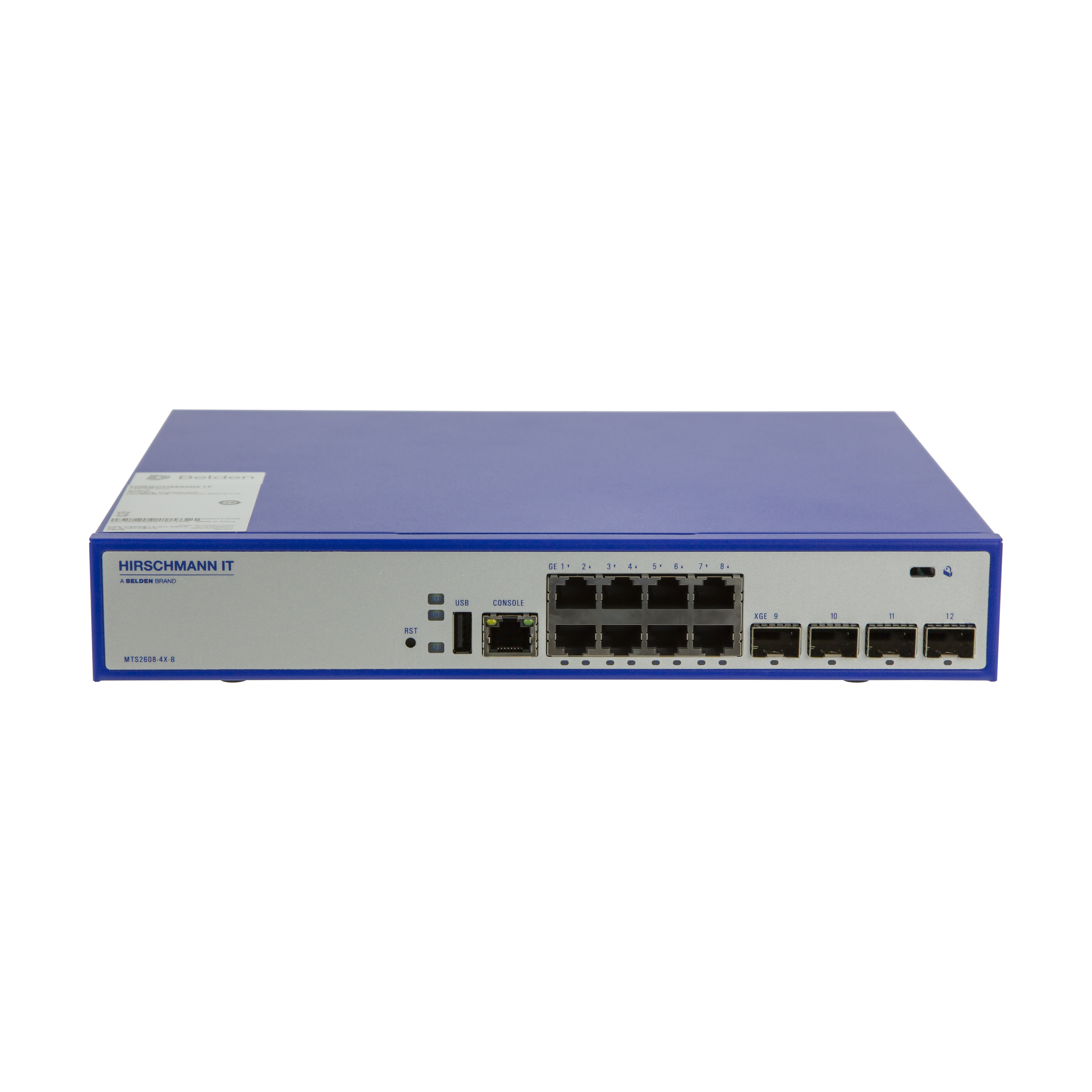

Product Number: MTS2608-4X-B

MTS Layer2 Gigabit Ethernet Switch

1U rack mount, 8 × FE/GE TX, 4 × 1/10G SFP+ slots, fixed single power supply, basic software

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

MTS2608-4X-B is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Order
942999501	Order online

Specifications

Product description

Type	MTS2608-4X-B
Name	MTS2608-4X-B
Description	1U rack mount, 8 × FE/GE TX, 4 × 1/10G SFP+ slots, fixed single power supply, basic software
Port Type and Quantity	8 × FE/GE TX, 4 × 1/10G SFP+ slots, 1 × RJ45 Console port, 1 × USB 2.0, 1 × Reset Button
Heat Radiation Type	Fixed fan

More Interfaces

Power Supply	Fixed single power supply,30W

Power requirements

Operating Voltage	100-240VAC 50-60Hz
Power Consumption	16W

Ambient conditions

Permissible Humidity (Storage/Transport)	5% to 95%
Operating temperature	-10-+55 °C
Minimum Storage Temperature	-40-+70 °C
Relative humidity (non-condensing)	10-90 %
Overall Width	275 mm
Overall Height	44.2 mm
Overall Depth	230 mm
Weight	2.8 kg
Mount Type	Rack mount

Software Specifications

Data link layer protocol and technology	LAN	MAC address learning amount limit; static Mac configuration; black hole MAC
		Dynamic and static ARP; proxy ARP; free ARP
		Ethernet; Ethernet II; VLAN; 802.3x; 802.1p; 802.1Q; 802.3ad
		Q-in-Q and flexible Q-in-Q; VLAN mapping
		STP/RSTP/MST; GVRP; Super VLAN; PVLAN; Voice VLAN; Monitor link; BPDU TUNNEL; PPPOE+
		Multi to one port mirroring; multi to multiport mirroring; RSPAN
Security	Security features	AAA; 802.1X; RADIUS; TACACS+; SSH; port security; user classification; port isolation; UNI/NNI isolation; DHCP snooping; DAI; ARP check; IP source guard; CPU protection
	Attack protection	URPF; LAND attack; SYN Flood attack; Smurf attack; Ping Flood attack; TearDrop attack; Ping of Death attack
Network protocol	Routing protocol	Static router
	Multicast protocol	IGMP PROXY; IGMP filter; MLD v1/v2; IGMP Snooping; MLD v1/v2 Snooping
	IP application	DHCP Client; DNS; Ping; FTP Server; FTP Client; IP Accounting; UDP Helper; NTP
	IPv6	IPv6 basic function: IPv6 ND, IPv6 PMTU, IPv6 ACL, DS-Lite, IPv4/v6 Dual Stack
QoS	Traffic classification	Based on port/MAC address/IP address/IP priority/DSCP priority/TCP or UDP port number/ protocol type etc.
	Traffic policing	CAR
	Congestion management	SP; WRR; SP+WRR
	Congestion avoidance	RED; WRED
Virtualization	Virtualization technology	Stacking, up to 8 devices
Management	Network management	Console port; HTTP; Telnet; SSH management; SNMP v1/v2/v3; RMON 1/2/3/9; SYSLOG; DDMI
	Line management	VCT; UDLD
	Traffic analysis	sFlow traffic analysis
OAM	SLA	Including network delay/network jitter/packet loss rate test
Reliability	Link reliability	ERPS(G.8032) ring network protocol

Mechanical stability

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)	4 kV contact discharge, 8 kV air discharge
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-11 voltagedips,shortinterrupt	0%(20ms), 40%(300ms), 70%(500ms), 0%(5s)

EMC emitted immunity

EN 55032	EN 55032 Class A
EN 61000-3-2	EN 61000-3-2 Class A
EN 61000-3-3	EN 61000-3-3
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Approvals

FCC	CE/FCC Compliant
RoHS Compliant	RoHS (2011/65/EU and 2015/863/EU), GB 26572-2025

Scope of delivery and accessories

Accessories to Order Separately	Network Management Industrial HiVision, RacksNet ,SFPcard
Scope of delivery	Device, console cable, installation package, "*Power cord does not included in the package
