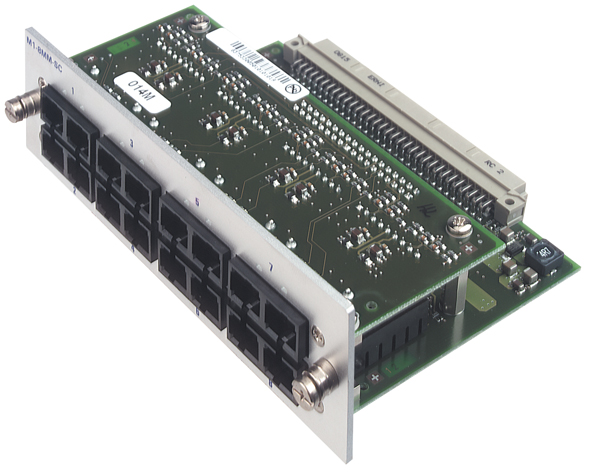

Product Number: M1-8MM-SC

Media module (8 x 100BaseFX Multimode DSC port) for MACH102

Name: Belden M1-8MM-SC
Brand: Hirschmann
SKU: M1-8MM-SC

8 x 100BaseFX Multimode DSC port media module for modular, managed, Industrial Workgroup Switch MACH102

Ships from and sold by A5 IT.

Part numbers

M1-8MM-SC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
943970101	M1-8MM-SC	Order online

Description	8 x 100BaseFX Multimode DSC port media module for modular, managed, Industrial Workgroup Switch MACH102

Multimode fiber (MM) 50/125 μm	0 - 5000 m (Link Budget at 1310 nm = 0 - 8 dB; A=1 dB/km; BLP = 800 MHz*km)
Multimode fiber (MM) 62.5/125 μm	0 - 4000 m (Link Budget at 1310 nm = 0 - 11 dB; A = 1 dB/km; BLP = 500 MHz*km)

Power Consumption	10 W
Power output in BTU (IT)/h	34

MTBF (Telcordia SR-332 Issue 3) @ 25°C	1 224 826 h
Operating temperature	0-50 °C
Minimum Storage Temperature	-20-+85 °C
Relative humidity (non-condensing)	10-95 %
Dimensions (WxHxD)	138 mm x 90 mm x 42mm
Weight	210 g
Mount Type	Media Module
IP Protection Rating	IP20

EN 61000-4-2 electrostatic discharge (ESD)	4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80-2700 MHz)

EN 61000-4-4 fast transients (burst)	2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line
EN 61000-4-6 Conducted Immunity	10 V (150 kHz-80 MHz)

EN 55022	EN 55022 Class A
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Safety of industrial control equipment	cUL 508
Safety of information technology equipment	cUL 60950-1

Guarantee	60 months (please refer to the " https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf ">"terms of guarantee or detailed information)
