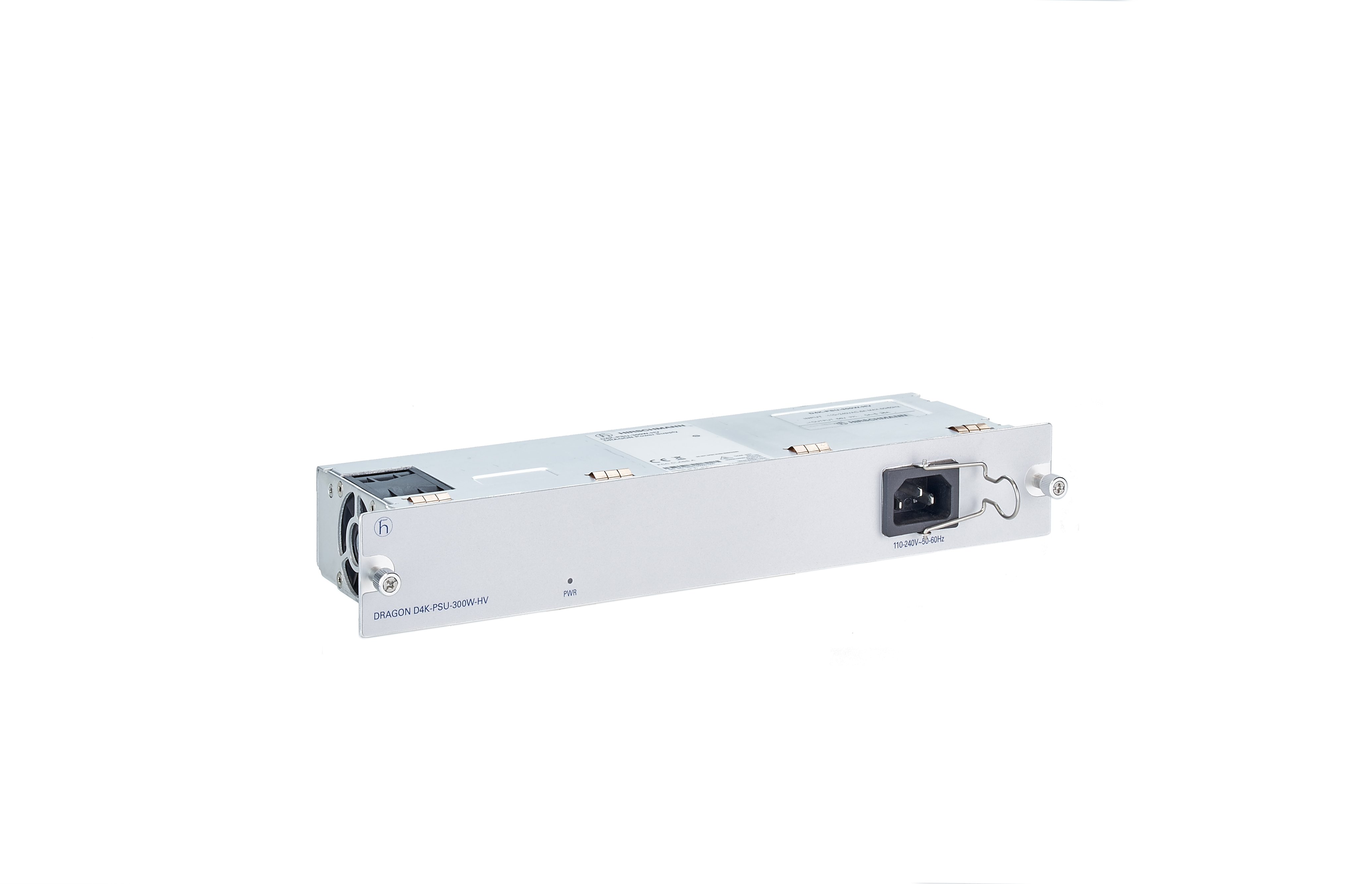

D4K-PSU-300W-HV

Product Number: D4K-PSU-300W-HV

DRAGON MACH4x00 300 Watt high voltage power supply unit; field-replaceable

DRAGON MACH4x00 300 Watt high voltage power supply unit; field-replaceable

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

D4K-PSU-300W-HV is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #TypeOrder
942156001D4K-PSU-300W-HV, PowerSupplyOrder online

Specifications

Product description

TypeD4K-PSU-300W-HV
NameD4K-PSU-300W-HV
DescriptionDRAGON MACH4x00 300 Watt high voltage power supply unit; field-replaceable

Power requirements

Nominal power of voltage supply300 W
Operating Voltage100-240 V AC
Power Consumption6 W

Software

DiagnosticsLEDs (power, software update) at switch chassis

Ambient conditions

MTBF (Telcordia SR-332 Issue 3) @ 25°C840 336 h
Operating temperature0-+60 °C
Minimum Storage Temperature-40-+70 °C
Relative humidity (non-condensing)10-95 %
Dimensions (WxHxD)250 mm x 80 mm x 40 mm
Weight0.85
Mount TypePlug-in device

Approvals

Safety of industrial control equipmentcUL61010-1/-2-201, EN60950-1

Reliability

Guarantee60 months (please refer to the " https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf ">"terms of guarantee or detailed information)

Scope of delivery and accessories

Scope of deliveryDevice

Further Instructions

Product Documentationhttps://www.doc.hirschmann.com
Certificateshttps://www.doc.hirschmann.com/certificates.html

History

Update and RevisionRevision Number: 0.118 Revision Date: 03-03-2026

Resources

Belden D4K-PSU-300W-HV technical datasheetGREYHOUND2000 Standard (English)GREYHOUND2000 Standard (German)GREYHOUND2000 Standard (French)GREYHOUND 105-106 Ethernet SwitchesGREYHOUND 105-106 Ethernet Switches (German)GREYHOUND 103 Ethernet SwitchesGREYHOUND 103 Ethernet Switches (French)GREYHOUND 103 Ethernet Switches (German)GREYHOUND 1040 Modular Gigabit Ethernet SwitchDRAGON MACH4x00Layer 3 Backbone SwitchesMACH1040 Full Gigabit SwitchGREYHOUND 105-106 for Discrete ManufacturersGREYHOUND 105-106 for Discrete Manufacturers (German)HiOS Network Security GuideSensor to Cloud

Related hirschmann managed rack-mount switches

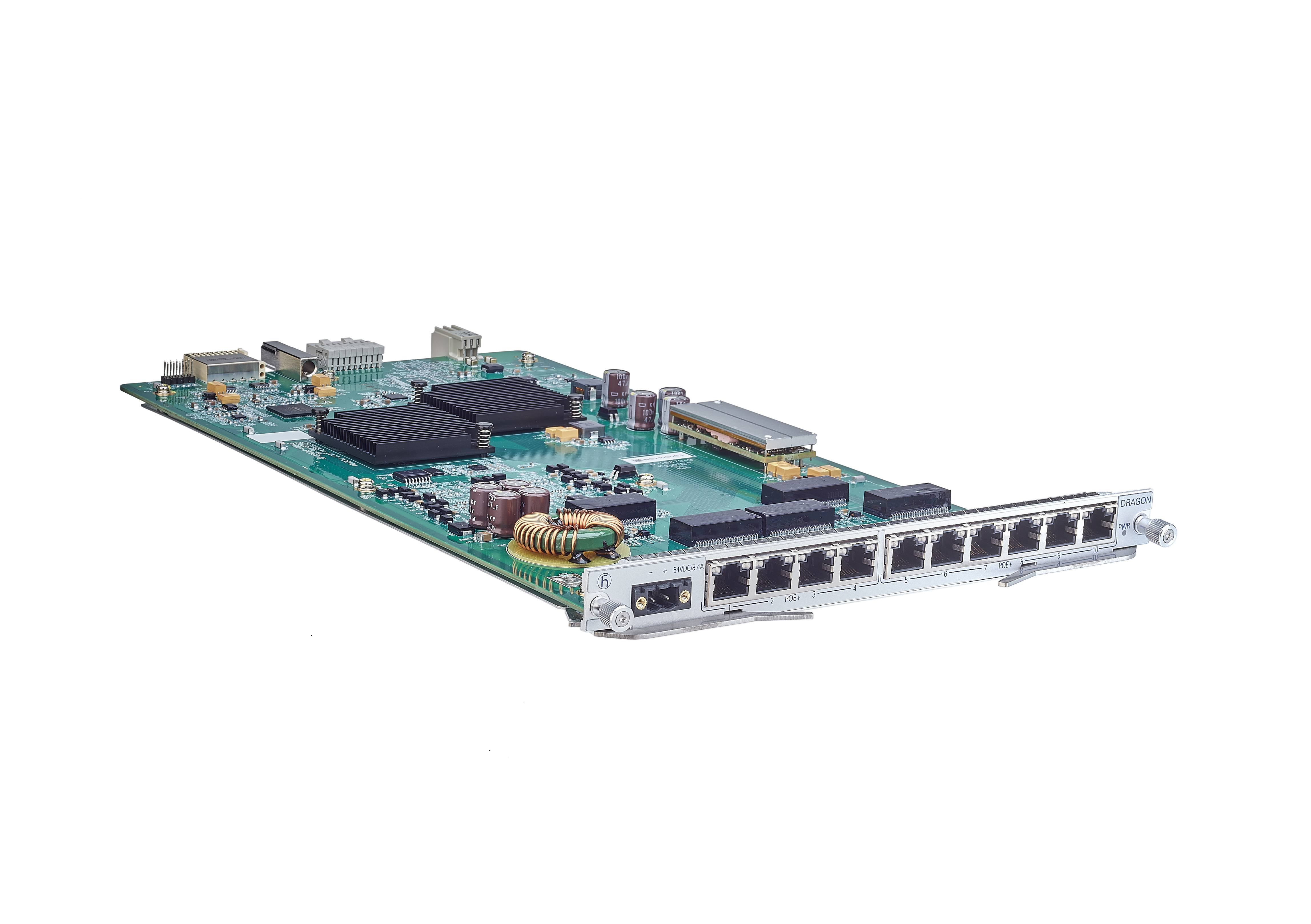

D4K-10TP-RJ45/PoE+, Linecard

D4K-10TP-RJ45/PoE+, Linecard

DRAGON MACH4x00 media module with 10x FE/GE PoE+ ports; field-replaceable

1 item

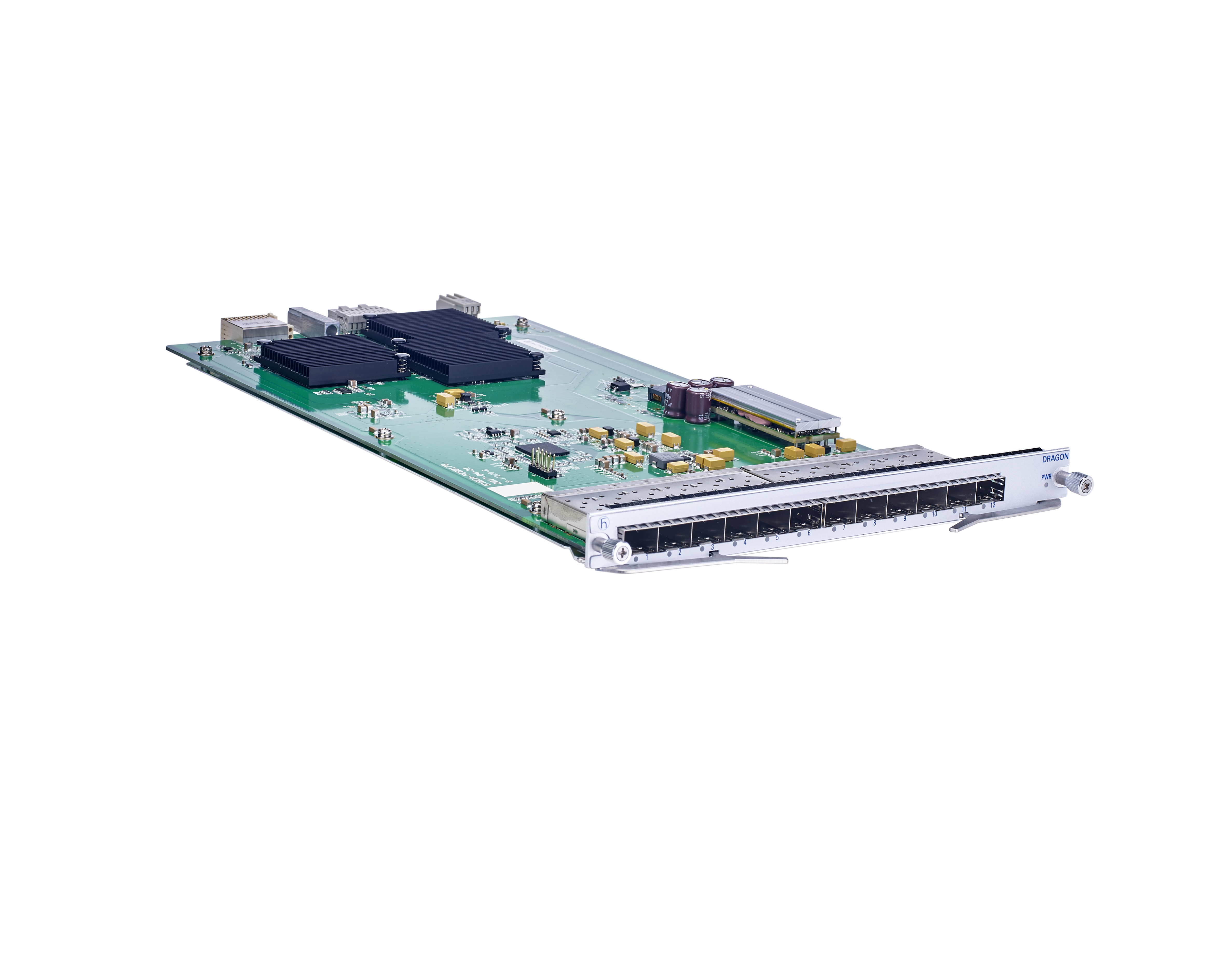

D4K-12SFP

D4K-12SFP

DRAGON MACH4x00 media module with 12 x FE/GE SFP slots; field-replaceable

1 item

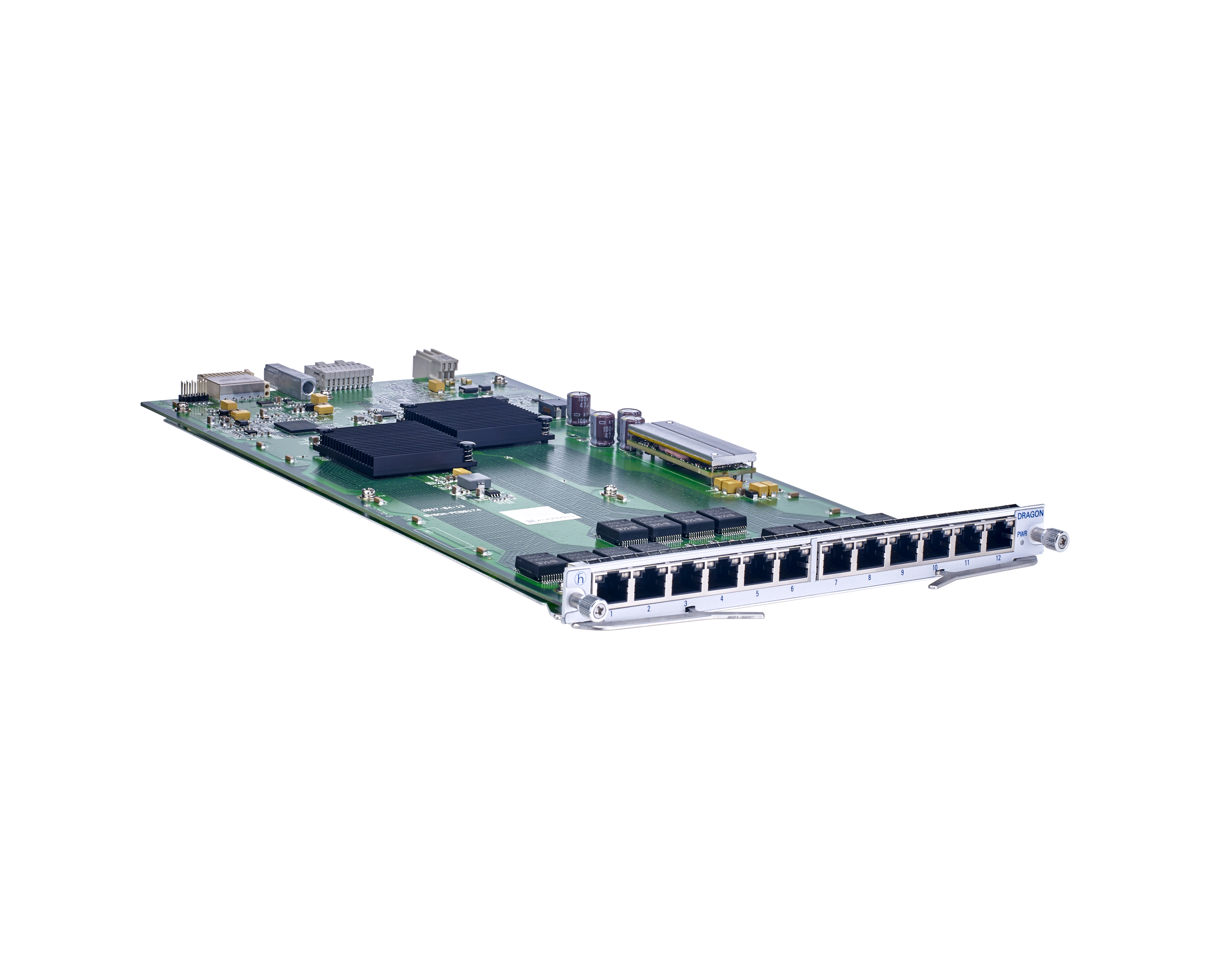

D4K-12TP-RJ45

D4K-12TP-RJ45

DRAGON MACH4x00 media module with 12 x FE/GE TX ports; field-replaceable

1 item

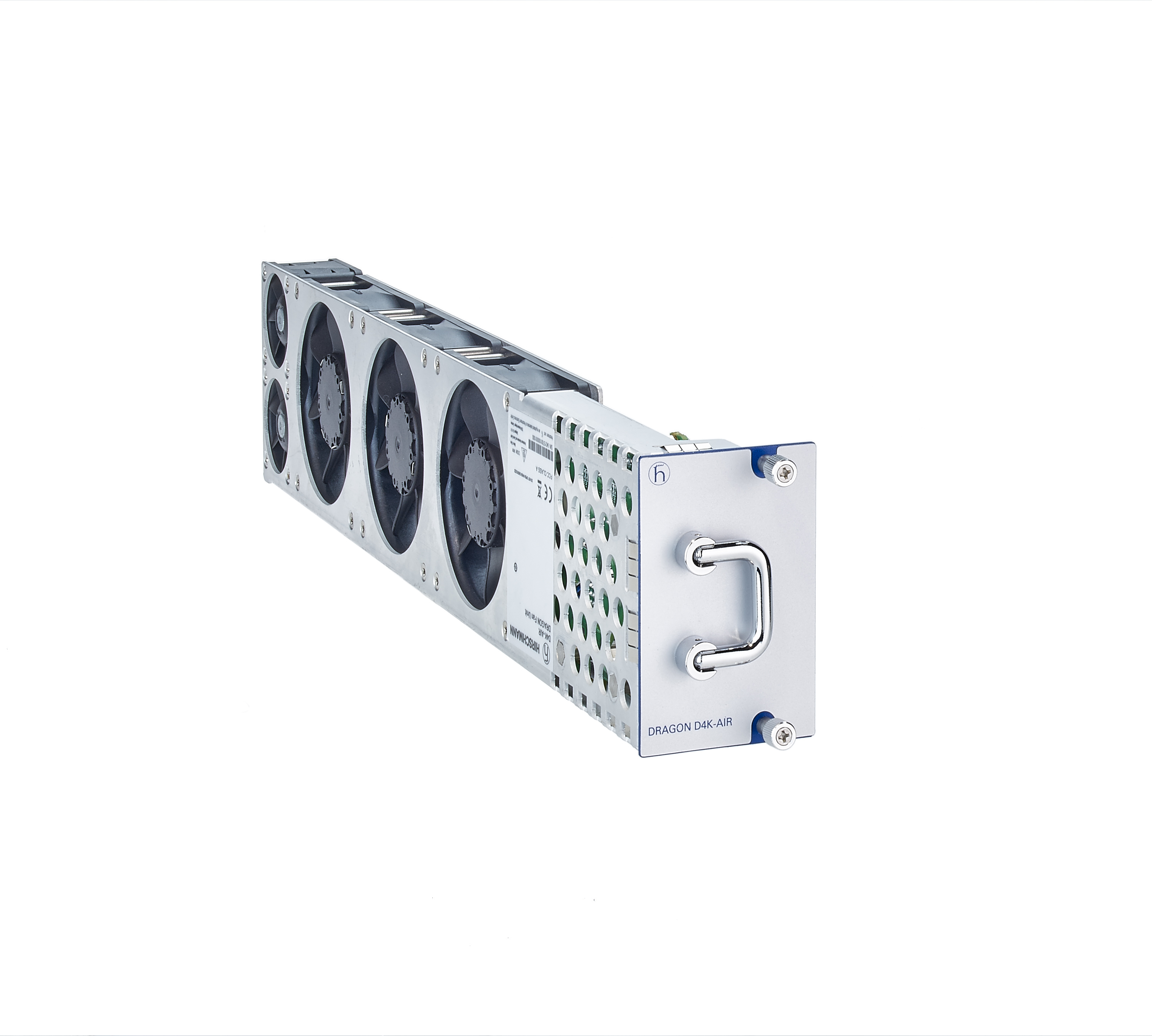

D4K-AIR
