Product Number: GECKO 4TX

4x FE TX, 12-24 V DC, 0-60°C, Lite Managed

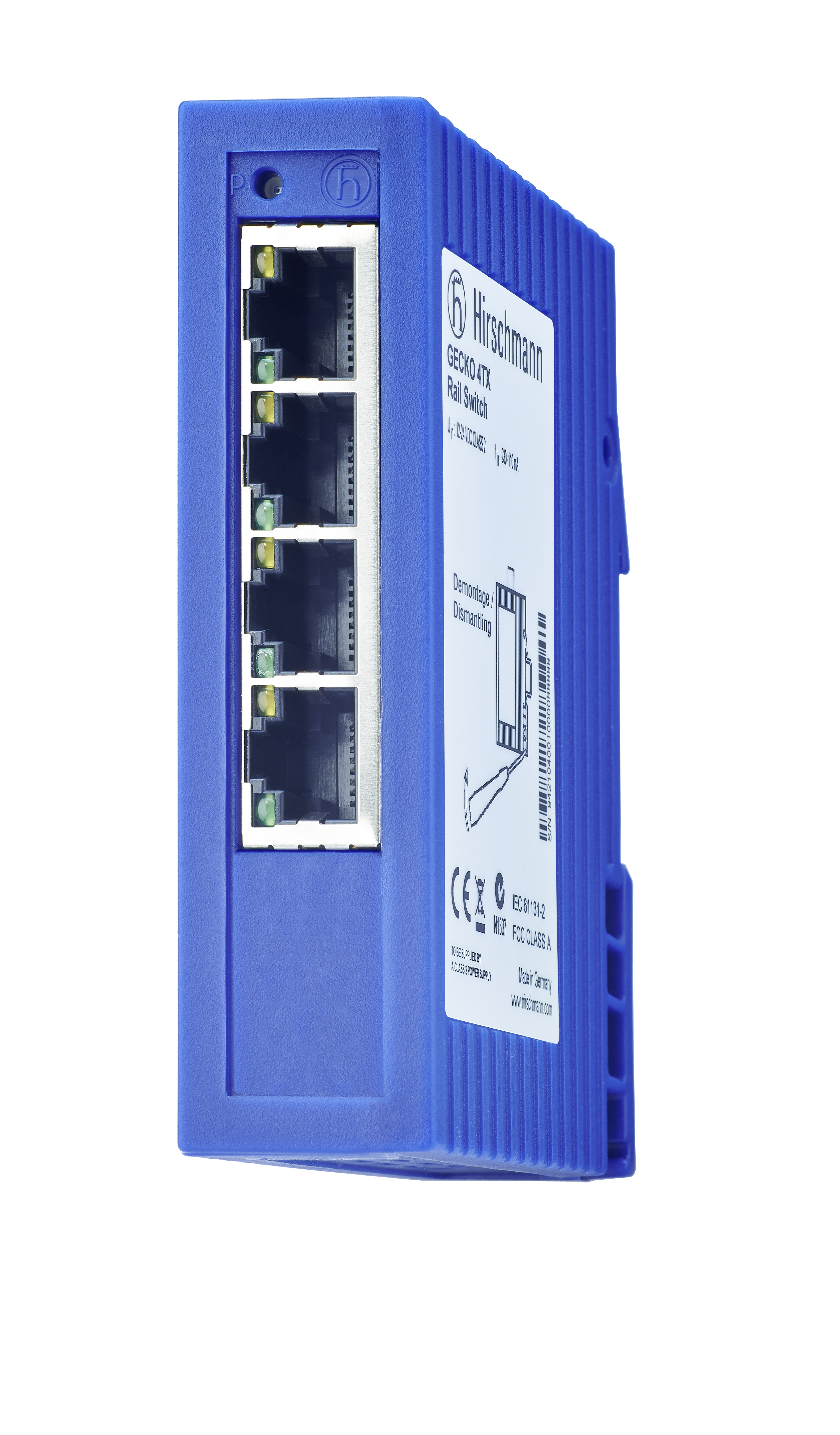

Name: Belden GECKO 4TX
Brand: Hirschmann
SKU: GECKO 4TX

Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet Switch, Store and Forward Switching Mode, fanless design.

Ships from and sold by A5 IT.

Part numbers

GECKO 4TX is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Type	Order
942104003	GECKO 4TX	Order online

Type	GECKO 4TX
Description	Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet Switch, Store and Forward Switching Mode, fanless design.
Port Type and Quantity	4 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity

Power supply/signaling contact	1 x plug-in terminal block, 3-pin, no signaling contact

Twisted pair (TP)	0-100 m

Line - / star topology	any

Switching	TOS/DSCP Prioritization, Prioritization through 4 queues, Static unicast/multicast filter entries (up to 100), VLAN Support
Redundancy	RSTP (IEEE 802.1D-2004)
Management	Web-interface, HTTP(s) config file/firmware transfer, SNMP v1/v2/v3
Diagnostics	Device status indication (LEDs), Log-File, RMON (1) statistics, Simple interface statistics, Topology Discovery according to IEEE 802.1AB (LLDP)
Configuration	DHCP Relay with Option 82, HiDiscovery, BOOTP/DHCP
Security	SNMPv3 (authNoPriv), Possibility to disable each port

MTBF (MIL-HDBK 217F: Gb 25 oC)	56.6 Years
Operating temperature	0-+60 °C
Minimum Storage Temperature	-40-+85 °C
Relative humidity (non-condensing)	5-95 %
Dimensions (WxHxD)	25 mm x 114 mm x 79 mm
Weight	103 g
Mount Type	DIN Rail
IP Protection Rating	IP30

IEC 60068-2-6 vibration	3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration

EN 61000-4-2 electrostatic discharge (ESD)	4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity	10 V (150 kHz-80 MHz)

EN 55032	EN 55032 Class A
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Safety of industrial control equipment	cUL 61010-1

Guarantee	60 months (please refer to the " https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf ">"terms of guarantee or detailed information)

Accessories to Order Separately	Rail power supply RPS 30, RPS 80 EEC or RPS 120 EEC (CC), Mounting Accessories
Scope of delivery	Device, 3-pin terminal block for the supply voltage and the grounding, Safety and general information sheet

Product Documentation	https://www.doc.hirschmann.com
Certificates	https://www.doc.hirschmann.com/certificates.html
Software Download	https://my.belden.com/s/downloads
