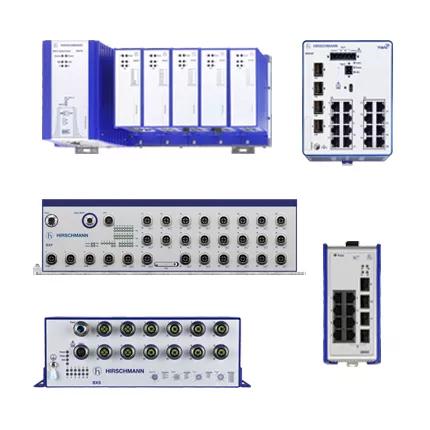

Managed DIN Rail & Compact Switch Families
Belden offers a broad portfolio of ruggedized Managed or Lite Managed Ethernet Switches that are engineered for reliable performance in harsh industrial environments. Layer 2 and Layer 3 options or built-in Single Pair Ethernet (SPE) technology, supporting the transition to future-ready networks. The product portfolio provides management functions and guarantees high availability of complex automation solutions and the option of network monitoring.
Features & Benefits
- Prepare for Future Growth: Increased bandwidth and speed capabilities
- Support Multiple Services on One Network: Solution makes use of TSN technology
- Increased Uptime: Broad support of redundancy mechanisms, such as MRP, HSR and PRP
- Configure the Perfect Fit: Switches support 4 to 28 ports with Layer 2 and Layer 3 capabilities
- Save Space: Supports Ethernet transmission via a single wire pair that is lighter and more compact than traditional Ethernet cables.
34 product families
BTL12-08T1-02TX-L
BEETLE Single Pair Ethernet Lite Managed Switch
1 item
BXP62-20TX-EECC-HV-2A
6 x 1/2.5/10 Gbit/s TX + 14 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, 110 VDC, -40°C to +70 °C, HiOS 2A
1 itemBXP62-20TX-EECC-HV-2A-BP
6 x 1/2.5/10 Gbit/s TX + 14 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, with Bypass relay, 110 VDC, -40°C to +70 °C, HiOS 2A
1 itemBXP62-20TX-EECC-HV-3A
6 x 1/2.5/10 Gbit/s TX + 14 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, 110 VDC, -40°C to +70 °C, HiOS 3A
1 itemBXP62-20TX-EECC-HV-3A-BP
6 x 1/2.5/10 Gbit/s TX + 14 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, with Bypass relay, 110 VDC, -40°C to +70 °C, HiOS 3A
1 item
BXP62-28TX-EECC-HV-2A
6 x 1/2.5/10 Gbit/s TX + 22 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, 110 VDC, -40°C to +70 °C, HiOS 2A
1 itemBXP62-28TX-EECC-HV-2A-BP
6 x 1/2.5/10 Gbit/s TX + 22 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, with Bypass relay, 110 VDC, -40°C to +70 °C, HiOS 2A
1 itemBXP62-28TX-EECC-HV-3A
6 x 1/2.5/10 Gbit/s TX + 22 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, 110 VDC, -40°C to +70 °C, HiOS 3A
1 itemBXP62-28TX-EECC-HV-3A-BP
6 x 1/2.5/10 Gbit/s TX + 22 x 10/100/1000 Mbit/s TX, PoE/PoE+/PoE ++, with Bypass relay, 110 VDC, -40°C to +70 °C, HiOS 3A
1 item
BXS30-12TX-EECC-HV-2A
4xGE TX, 8x FE TX, 72-110 VDC, -40°C to +70 °C, HiOS 2A
1 item
BXS30-12TX-EECC-LV-2A
4xGE TX, 8x FE TX, 24 VDC, -40°C to +70 °C, HiOS 2A
1 item
BXS32-12TX-EECC-HV-2A
4xGE TX, 8x FE TX, 72-110 VDC, -40°C to +70°C, HiOS 2A, PoE+
1 item
BXS32-12TX-EECC-LV-2A
4xGE TX, 8x FE TX, 24-48 VDC, -40°C to +70 °C, HiOS 2A, PoE+
1 item
BXS40-12TX-EECC-HV-2A
12x GE TX, 72-110 VDC, -40°C to +70 °C, HiOS 2A
1 item
BXS40-12TX-EECC-LV-2A
12x GE TX, 24 VDC, -40°C to +70 °C, HiOS 2A
1 item
BXS42-12TX-EECC-HV-2A
12x GE TX, 72-110 VDC, -40°C to +70 °C, HiOS 2A, PoE+
1 item
BXS42-12TX-EECC-LV-2A
12x GE TX, 24-48 VDC, -40°C to +70 °C, HiOS 2A, PoE+
1 item
GECKO 4TX
4x FE TX, 12-24 V DC, 0-60°C, Lite Managed
1 item
GECKO 5TX
5x FE TX, 12-24 V DC, 0-60°C, Lite Managed
1 item
GECKO 8TX
8x FE TX, 12-24 V DC, -40-+60°C, Lite Managed
1 item

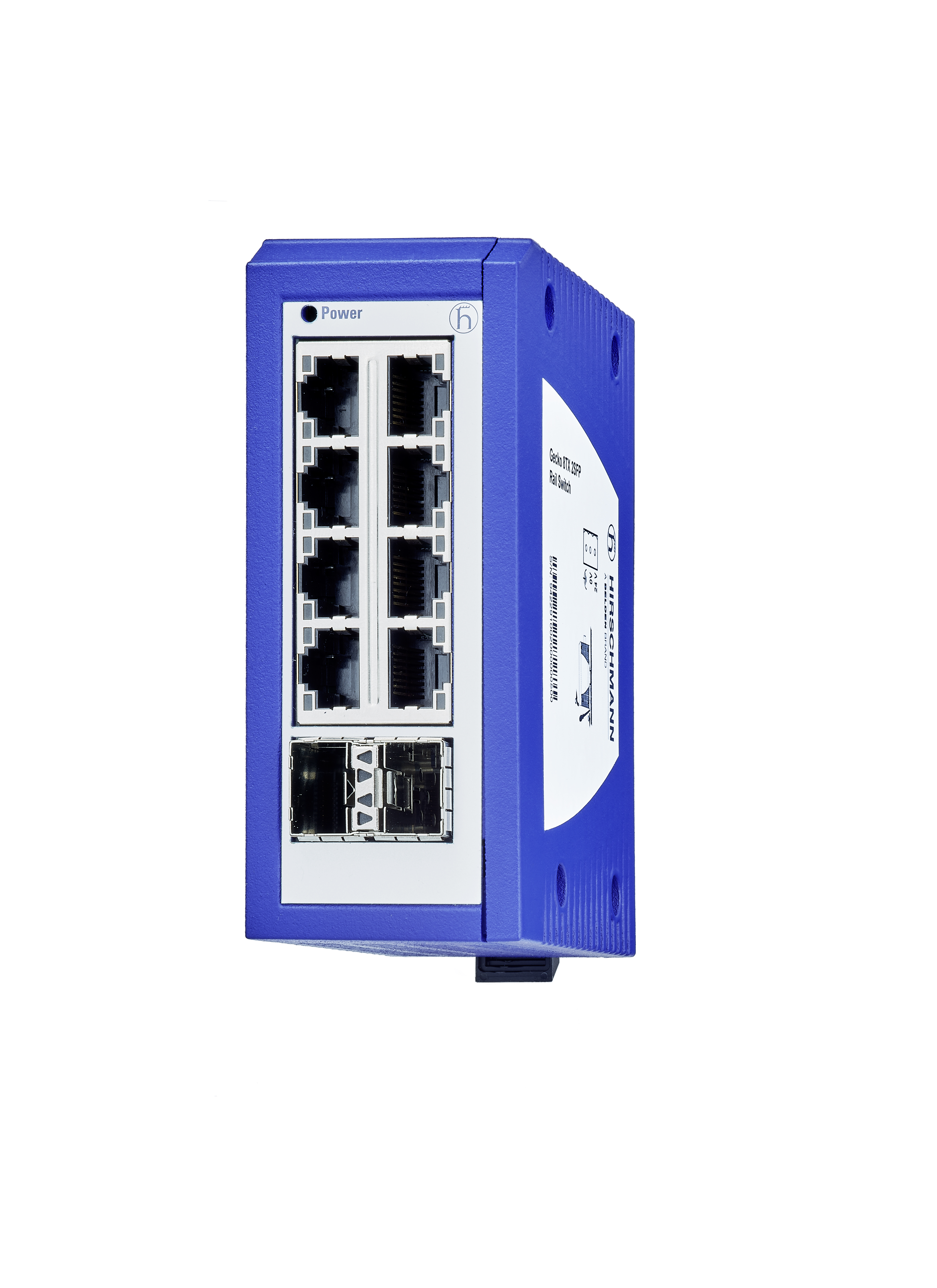

GECKO 8TX/2SFP
8x FE TX, 2x FE/GE SFP 12-24 V DC, -40-+60°C, Lite Managed
1 item
LRS30-7TX/3SFP/1C
7x FE TX, 3x FE/GE SFP, 1x FE/GE Combo, 9.6-32 V DC, -40-+60°C, Lite Managed
1 item
LRS32-7TX/3SFP/1C
7x FE TX, 3x FE/GE SFP, 1x FE/GE Combo, 46-57 V DC, -40-+60°C, Lite Managed, PoE/PoE+ max. 180W
1 item
LRS40-7TX/3SFP/1C
7x FE/GE TX, 3x FE/GE SFP, 1x FE/GE Combo, 9.6-32 V DC, -40-+60°C, Lite Managed
1 item
LRS42-7TX/3SFP/1C
7x FE/GE TX, 3x FE/GE SFP, 1x FE/GE Combo, 46-57 V DC, -40-+60°C, Lite Managed, PoE/PoE+ max. 180W
1 item
BOBCAT configurator
Next Generation Compact Managed Switch
MSM - Media Module for MSP configurator
Media Module for MSP Switches
MSP - MICE Switch Power configurator
Modular Industrial DIN Rail Ethernet MSP30/40 Switches
RED - Redundancy Switch configurator
Entry-level, Fast Ethernet redundancy switches designed for industrial automation applications needing high-end redundancy topologies
RS20/30/40 Managed Switch configurator
These hardened, compact managed industrial DIN rail Ethernet switches provide an optimum degree of flexibility with several thousand variants.

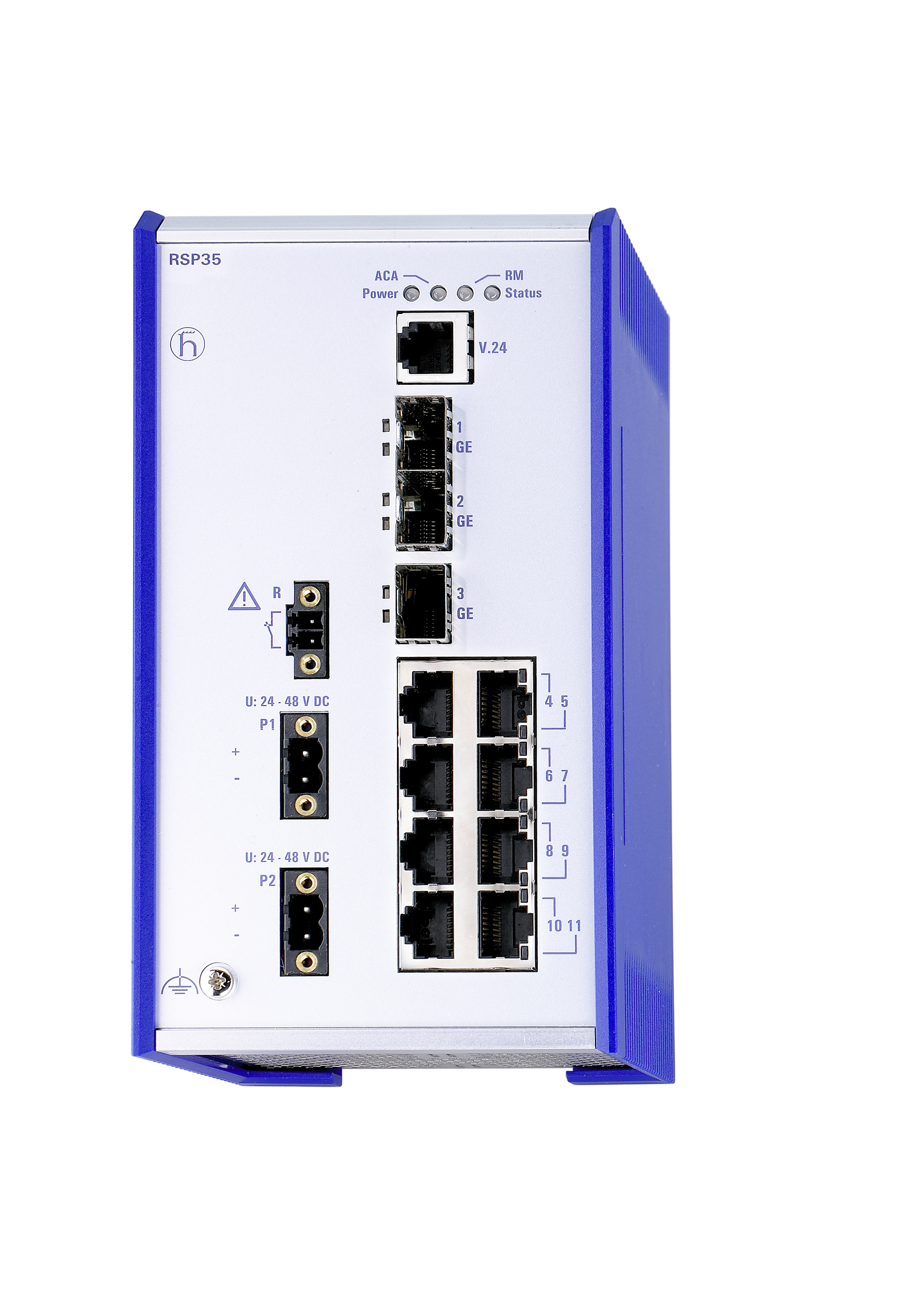

RSP - Rail Switch Power configurator
Hardened, compact managed industrial DIN rail switches with Fast and Gigabit speed options and Enhanced Redundancy options.
RSPE - Rail Switch Power Enhanced configurator
The managed RSPE switches guarantee highly available data communication and precise time synchronization in accordance with IEEE1588v2
RSPM -Rail Switch Power Module configurator
RSPM Configurable Media Modules for RSPE Switches

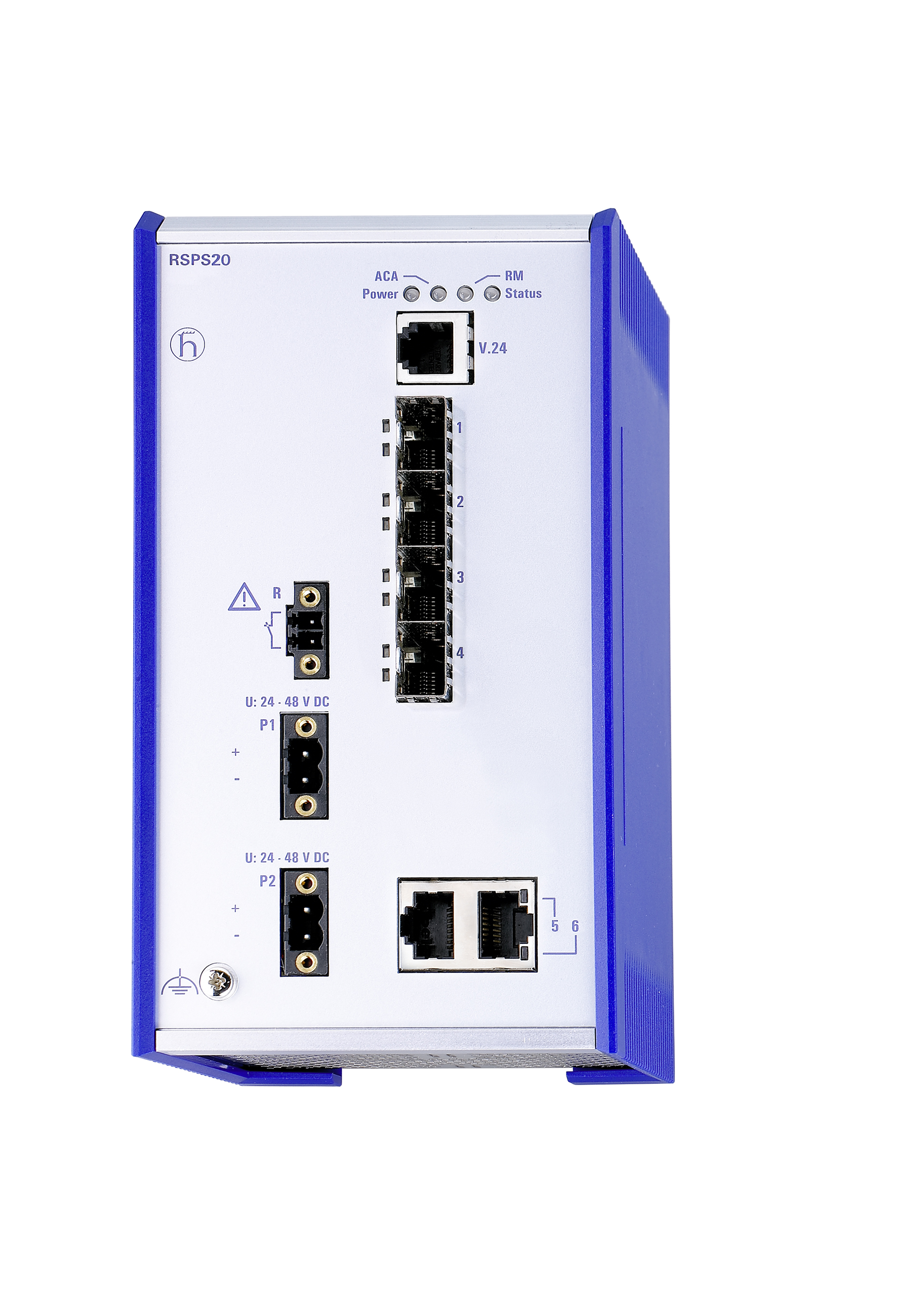

RSPS - Rail Switch Power Smart configurator
Hardened, compact managed industrial DIN rail switches with Fast Ethernet and Enhanced Redundancy.
