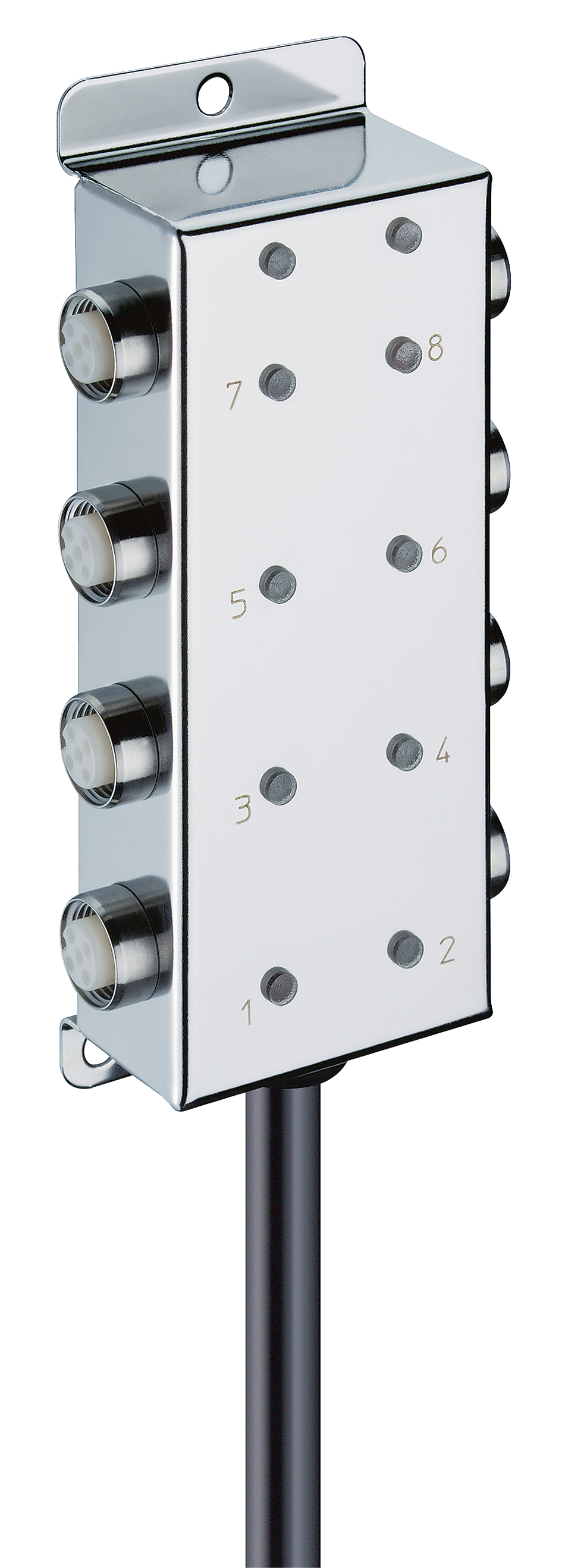

Product Number: ASNBL 8/LED 5-4-320

ASB, 8 ports, LED, stainless steel housing, side connections

Name: Belden ASNBL 8/LED 5-4-320
Brand: Belden
SKU: ASNBL 8/LED 5-4-320

Ships from and sold by A5 IT.

Part numbers

ASNBL 8/LED 5-4-320 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Side 1 Product Sub Family	Classic stainless steel
I/O Connection	M12, 5/4-poles, A-coded
Number of Ports	8
I/O Wiring Configuration	single I/O per port
Control Cable Interface	Open End
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!

Housing Material	stainless steel
Protection Degree / IP Rating**	IP67, IP69k
Potted	Yes
Dimensions (W x H x D)	59 mm x 28 mm x 129 mm
Ambient Temperature (Operation)*	-25 °C to 70 °C (temporary: 80 °C)
Side 1 Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Contact Base Material	CuZn
Contact Bearer Material	PVC
O-Ring Material	EPDM
Fastening Torque (I/O Connection)	M12: 0.5 Nm

Status Indicator (System Supply)	LED green
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	10 V DC to 30 V DC

Input Wiring	2-, 3-, 4-wire
Sensor Type	PNP

Output Wiring	2-, 3-wire

UL	cULus Listed, UL 508
UL-File	E230848
Update and Revision	Revision Number: 0.45 Revision Date: 02-20-2026
CSA	Yes, via UL

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!
