Belden0911 ANC 001
PAAS-R, pre-assembled passive branch with connection to Asi standard flat cable system
PAAS-R, pre-assembled passive branch with connection to Asi standard flat cable system
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
0911 ANC 001 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 10924 | 0911 ANC 001/1,5 M | 1.5 m | Order online |
Specifications
Information
| Product Family | ASi |
|---|---|
| Side 1 Product Sub Family | ASi |
| Item Description | 0911 ANC 001 |
| Control Cable Interface | Open End |
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
General Data
| Housing Material | Plastic, PA |
|---|---|
| Housing Color | Black |
| Protection Degree / IP Rating** | IP65 |
| Potted | No |
| Dimensions (W x H x D) | 55 mm x 29 mm x 64 mm |
| Ambient Temperature (Operation)* | -25 °C to 80 °C |
| Contact Base Material | CuZn |
Power Supply
| Actuator Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
|---|---|
| Actuator Supply Voltage (Range) | 10 V DC to 30 V DC |
Digital Input Channels
| Input Wiring | 2-, 3-, 4-wire |
|---|
Digital Output Channels
| Galvanically Isolated | No |
|---|
Safety & Environmental Compliance
| CE | Yes |
|---|---|
| RoHS Compliant | Yes |
Approvals
| Update and Revision | Revision Number: 0.44 Revision Date: 02-20-2026 |
|---|
Notes
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
|---|
Resources
Related passive distribution modules

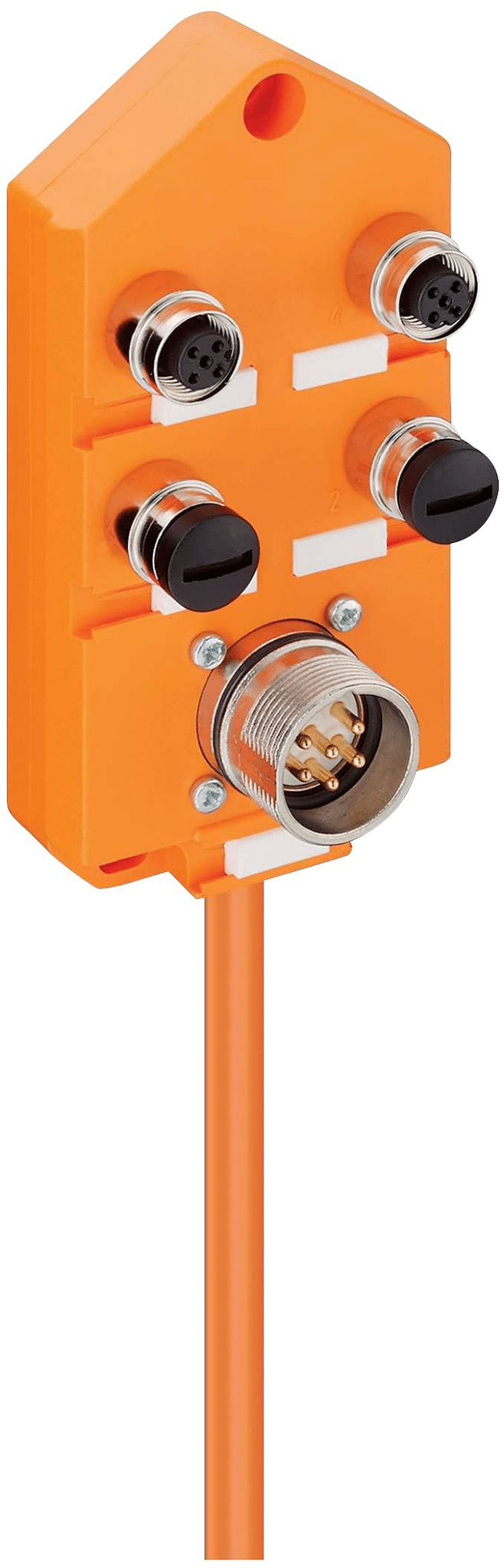

0911 ANC 002
ASi passive module, 4 ports; Connection for AS-Interace standard round cable
1 item

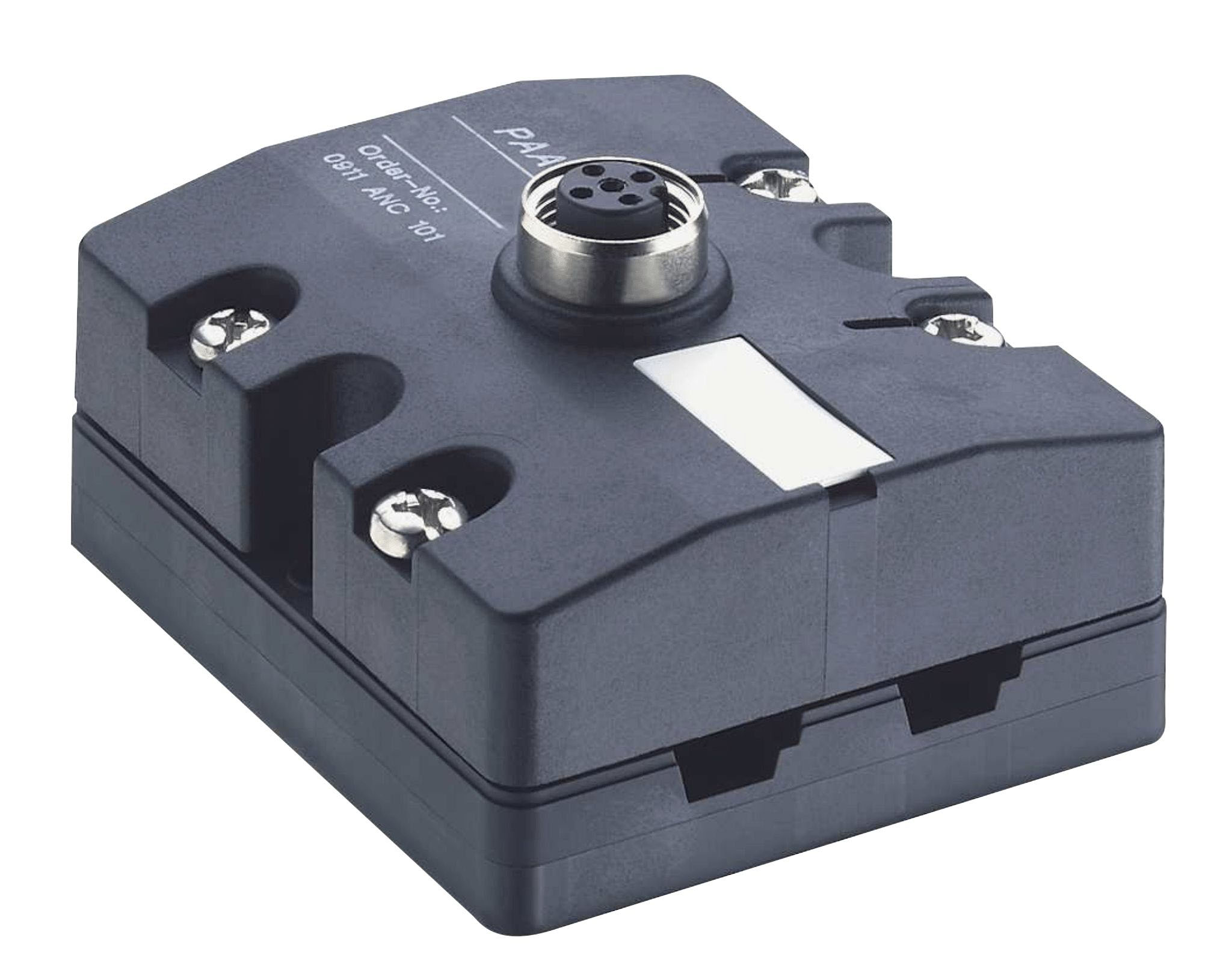

0911 ANC 101
