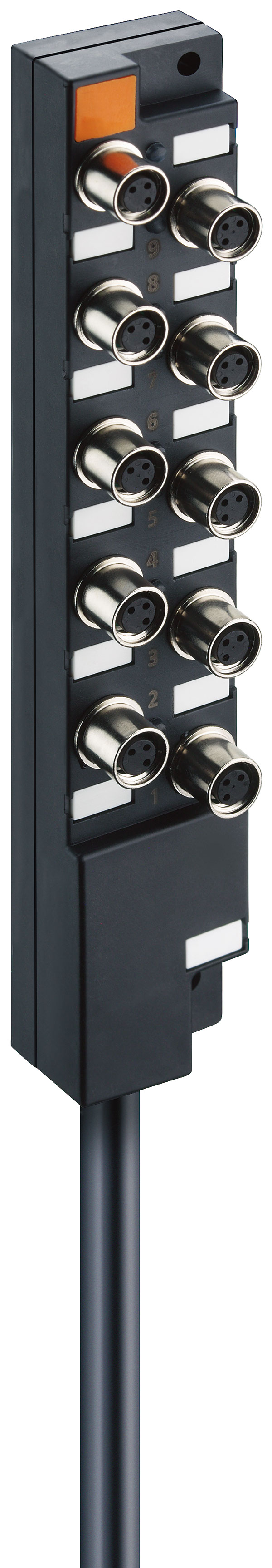

Product Number: ASBM 10/LED 3-346

LioN-S passive, 10 ports, LED

Name: Belden ASBM 10/LED 3-346
Brand: Belden
SKU: ASBM 10/LED 3-346

Ships from and sold by A5 IT.

Part numbers

ASBM 10/LED 3-346 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Side 1 Product Sub Family	LioN-S passive
I/O Connection	M8, 3-poles, A-coded
Number of Ports	10
I/O Wiring Configuration	single I/O per port
Control Cable Interface	Open End
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!

Housing Material	PBT + ASA
Housing Color	Black
Protection Degree / IP Rating**	IP67
Potted	No
Dimensions (W x H x D)	30 mm x 25,5 mm x 170 mm
Ambient Temperature (Operation)*	-25 °C to 70 °C
Side 1 Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Contact Base Material	CuSn
Contact Bearer Material	PA
O-Ring Material	FKM
Fastening Torque (Fixing Screw)	M4: 1 Nm
Fastening Torque (I/O Connection)	M8: 0.3 Nm

Status Indicator (System Supply)	LED green
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	10 V DC to 30 V DC

Input Wiring	2-, 3-, 4-wire
Sensor Type	PNP

Output Wiring	2-, 3-wire
Galvanically Isolated	No

UL	cULus Listed, UL 508
UL-File	E230848
Update and Revision	Revision Number: 0.56 Revision Date: 02-20-2026
CSA	Yes, via UL

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!
