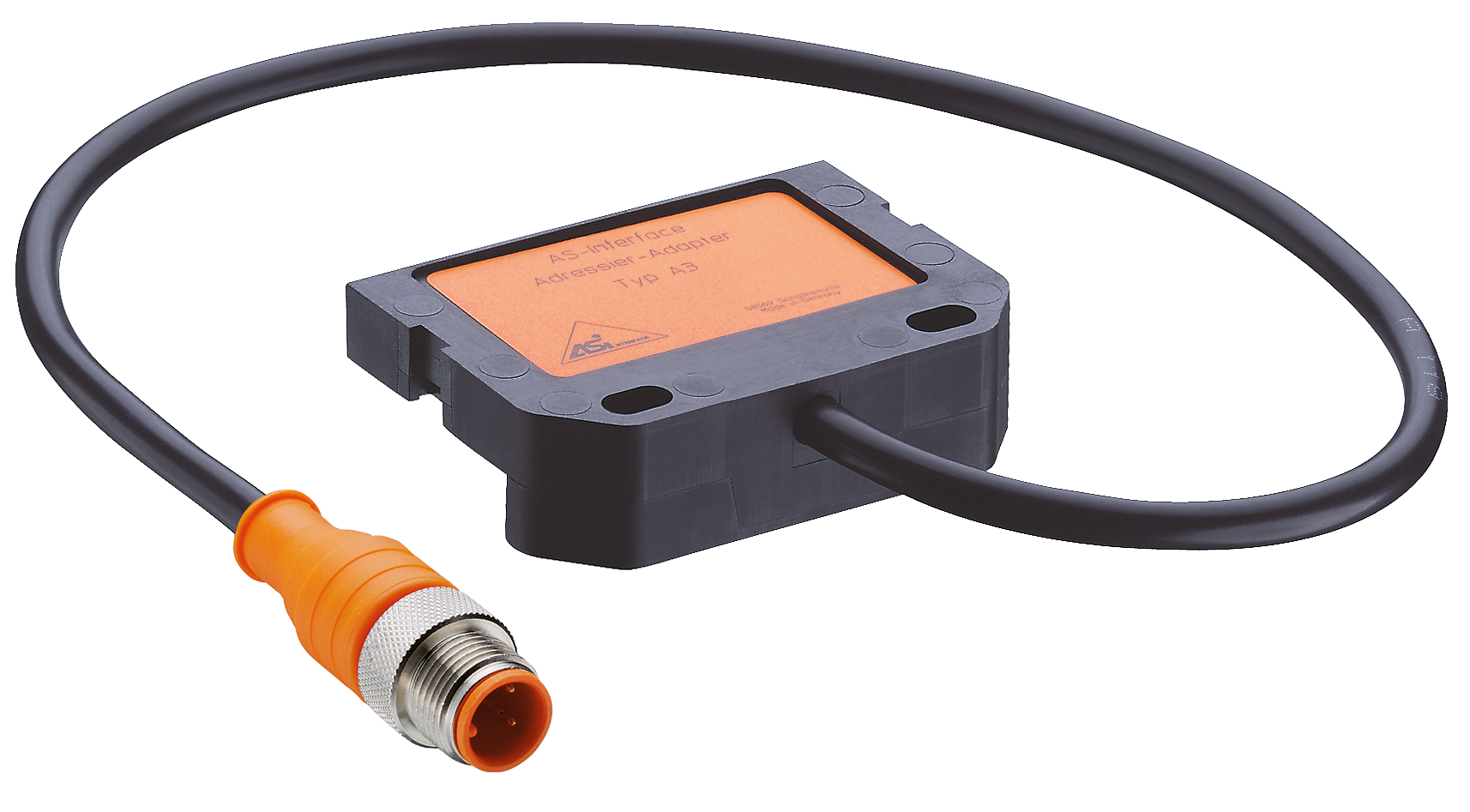

adressing adapter
adressing adapter
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
0913 ATL 002 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 10938 | 0913 ATL 002/0,35 M | Order online |
Specifications
Information
| Product Family | ASi |
|---|---|
| Side 1 Product Sub Family | ASi |
| Control Cable Interface | M12 |
| Update and Revision | Revision Number: 0.42 Revision Date: 02-20-2026 |
General Data
| Housing Material | Plastic, PA |
|---|---|
| Dimensions (W x H x D) | 58 mm x 16 mm x 438 mm |
| Fastening Torque (I/O Connection) | M12: 0,5 Nm |
Power Supply
| Actuator Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
|---|---|
| Actuator Supply Voltage (Range) | 10 V DC to 30 V DC |
Digital Input Channels
| Input Wiring | 2-, 3-, 4-wire |
|---|
Digital Output Channels
| Galvanically Isolated | No |
|---|
Safety & Environmental Compliance
| CE | Yes |
|---|---|
| RoHS Compliant | Yes |
Approvals
| Update and Revision | Revision Number: 0.42 Revision Date: 02-20-2026 |
|---|
