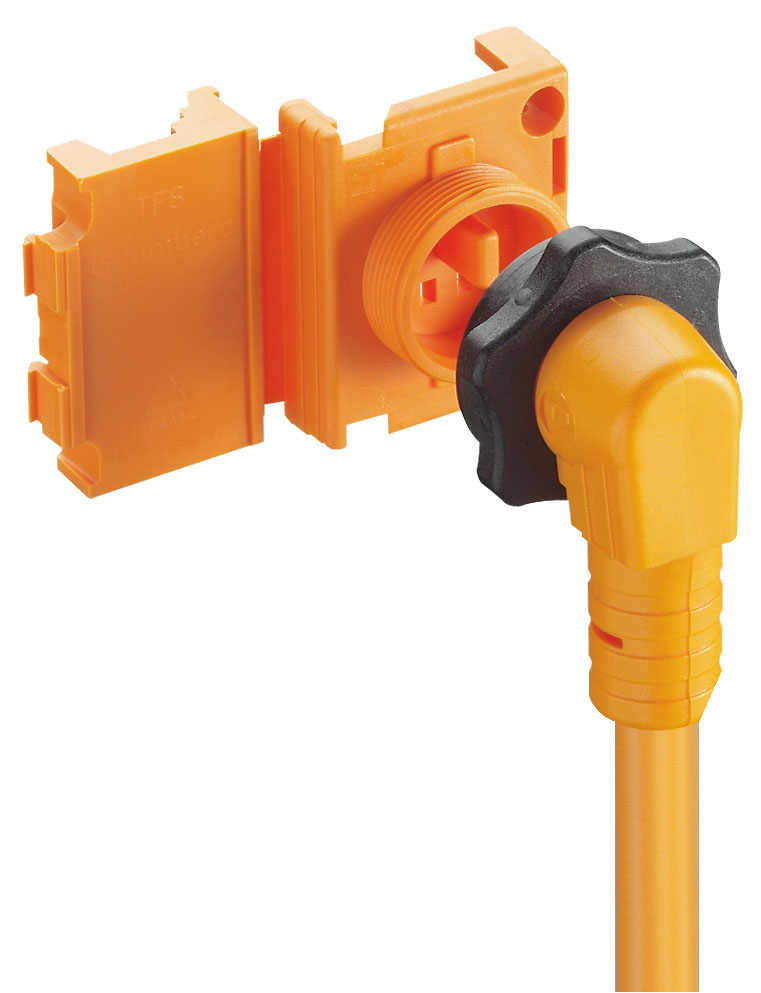

AS-Interface angle connectors; 1 assembled connector
AS-Interface angle connectors; 1 assembled connector
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
0911 ANC 407 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 10932 | 0911 ANC 407/5 M | Order online |
| 12822 | 0911 ANC 407/10 M | Order online |
| 934636303 | 0911 ANC 407/1 M | Order online |
| 10931 | 0911 ANC 407/2 M | Order online |
Specifications
Information
| Product Family | ASi |
|---|---|
| Side 1 Product Sub Family | ASi |
| Control Cable Interface | Open End |
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
Power Supply
| Actuator Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
|---|---|
| Actuator Supply Voltage (Range) | 10 V DC to 30 V DC |
Digital Input Channels
| Input Wiring | 2-, 3-, 4-wire |
|---|
Safety & Environmental Compliance
| CE | Yes |
|---|---|
| RoHS Compliant | Yes |
Approvals
| Update and Revision | Revision Number: 0.45 Revision Date: 02-20-2026 |
|---|
Notes
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
|---|
Resources
Related passive distribution modules
Belden0911 ANC 001
0911 ANC 001
PAAS-R, pre-assembled passive branch with connection to Asi standard flat cable system
1 item
0911 ANC 002
ASi passive module, 4 ports; Connection for AS-Interace standard round cable
1 item
0911 ANC 101
PAAS-M12, passive branch, one actuator/sensor on ASi standard flat cable system
1 item
0911 ANC 401
PAAS, passive branch, connection of two identical ASi standard flat cables
1 item
