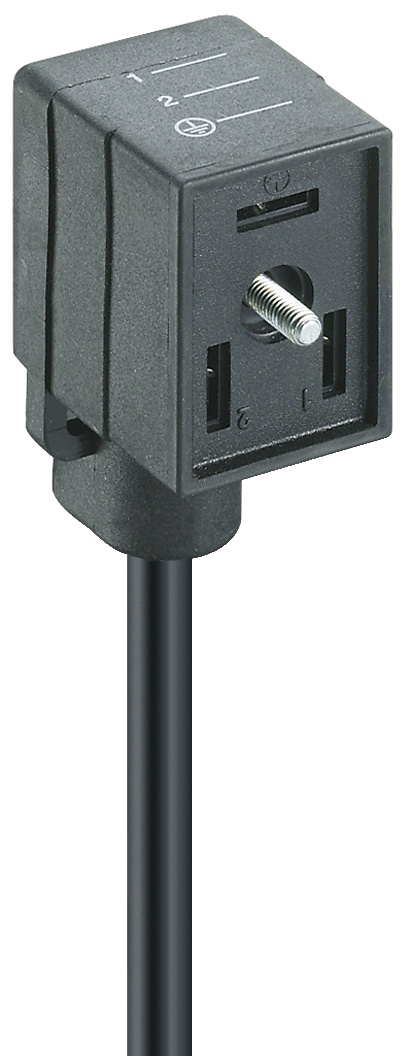

VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE across cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm2
VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE across cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
VB 1D-3-2-205 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 12215 | VB 1D-3-2-205/2 M | 2 m | Order online |
| 12216 | VB 1D-3-2-205/5 M | 5 m | Order online |
| 46936 | VB 1D-3-2-205/10 M | 10 m | Order online |
Specifications
Information
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | VB Industrial Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Angled |
| Number of Pins | 2+PE (PE across cable outlet) |
| Coding, Side 1 | B |
| Shielding Type | Unshielded |
| Attachment Type | Central Screw |
| Voltage Rating | 250 V AC/DC |
| Rated Impulse Voltage | 4.0 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Ambient Temperature (Operation)* | -25 °C - +80 °C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | blue |
| PE | green-yellow |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | TPE |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Steel, Philips combi slot |
Circuitry
| Protection Circuitry | No Circuitry |
|---|---|
| Fastening Torque (Attachment) | (50-60) Ncm |
Cable Data
| Cable Number | 205 |
|---|---|
| Conductor Size | 0.75 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | black |
| Cable Diameter D | ø 5.5 ± 0.2 mm |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | ø 1.80 ± 0.10 mm |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 70 °C |
| Ambient Temperature (Flex Installation) | + 5 °C - + 70 °C |
| Flammability Class (Cable Jacket) | DIN VDE 0472-804 Prüfart B |
| Cable Characteristics | frei von polybromierten Diphenylether, nicht halogenfrei |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | no |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
