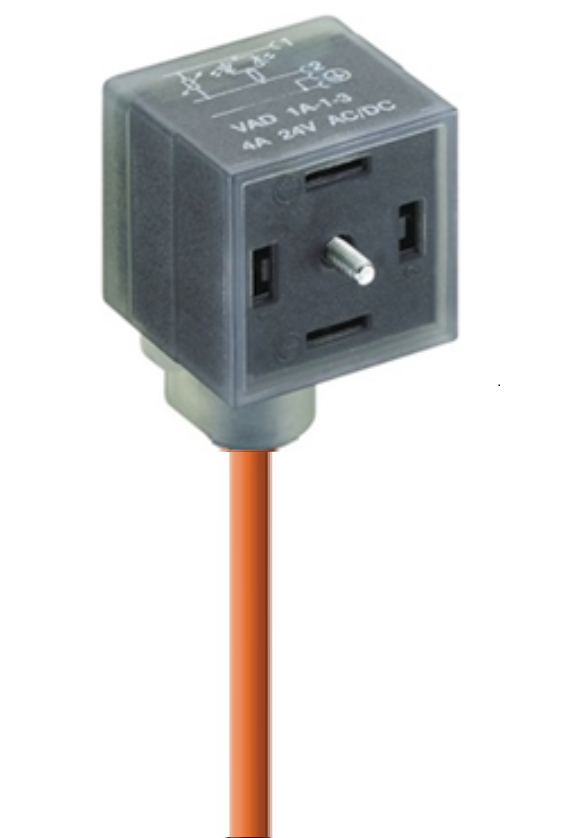

Product Number: VAD 1A-1-3-241

Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 24 V | Cable: Orange (PUR); 0.50 mm2; IEC

Form A - Singled-Ended Female Angled Cordset | #Contacts: 2+2 PE | Varistor (MOV) & yellow LED | 24 V / 4 A | Cable: Orange PUR Jacket; 3x0.50 mm2 (20 AWG); IEC

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

VAD 1A-1-3-241 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Replaced By	Order
12140	VAD 1A-1-3-241/5 M	5 m	Name: GAN22LU-V24-2410500-1UC	Order online
38771	VAD 1A-1-3-241/10 M	10 m	Name: GAN22LU-V24-2411000-1UB	Order online
109705	VAD 1A-1-3-241/1,5 M	1.5 m	Name: GAN22LU-V24-2410150-1UD	Order online

Specifications

Product Life Cycle

Life Cycle	Active - Product is available
Availability	Active
Product Family	Valve Connectors
Side 1 Product Sub Family	VAD
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	2+2 PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	24 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	24 V AC/DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 5 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.50 mm2
Ambient Temperature (Operation)*	- 25 °C - + 80 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper Nickel Alloy (Cu/Ni,Sn)
Contact Bearer Material	Polybutylene terephthalate (PBT
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Transluscent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Circuitry

Protection Circuitry	Varistor (MOV) & yellow LED
Function Indicator	Yellow LED
Protective Circuit	Varistor (MOV)
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Data

Cable Number	241
Conductor Size	0.5 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 mio
Welding Resistance	Welding spark resistant
Conductor Material	Cu
Cable Jacket Material	Polyurethane (PUR)
Cable Jacket Color	Orange
Cable Diameter D	Ø 3.25 mm [ 0.128 " ]
Wire Insulation Material	High-density polyethylene (HDPE)
Insulated Wire Diameter	Ø 1.50 mm [ 0.06 " ]
Ambient Temperature (Fixed Installation)	- 40 °C to + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 20 °C to + 90 °C (UL: + 80 °C)
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
Cable Characteristics	Mainly plasticizer diffusion free; Good microbes and hydrolysis resistance; Exclusion of PVC and silicone; Seatwater resistance; Coldness flexibility
