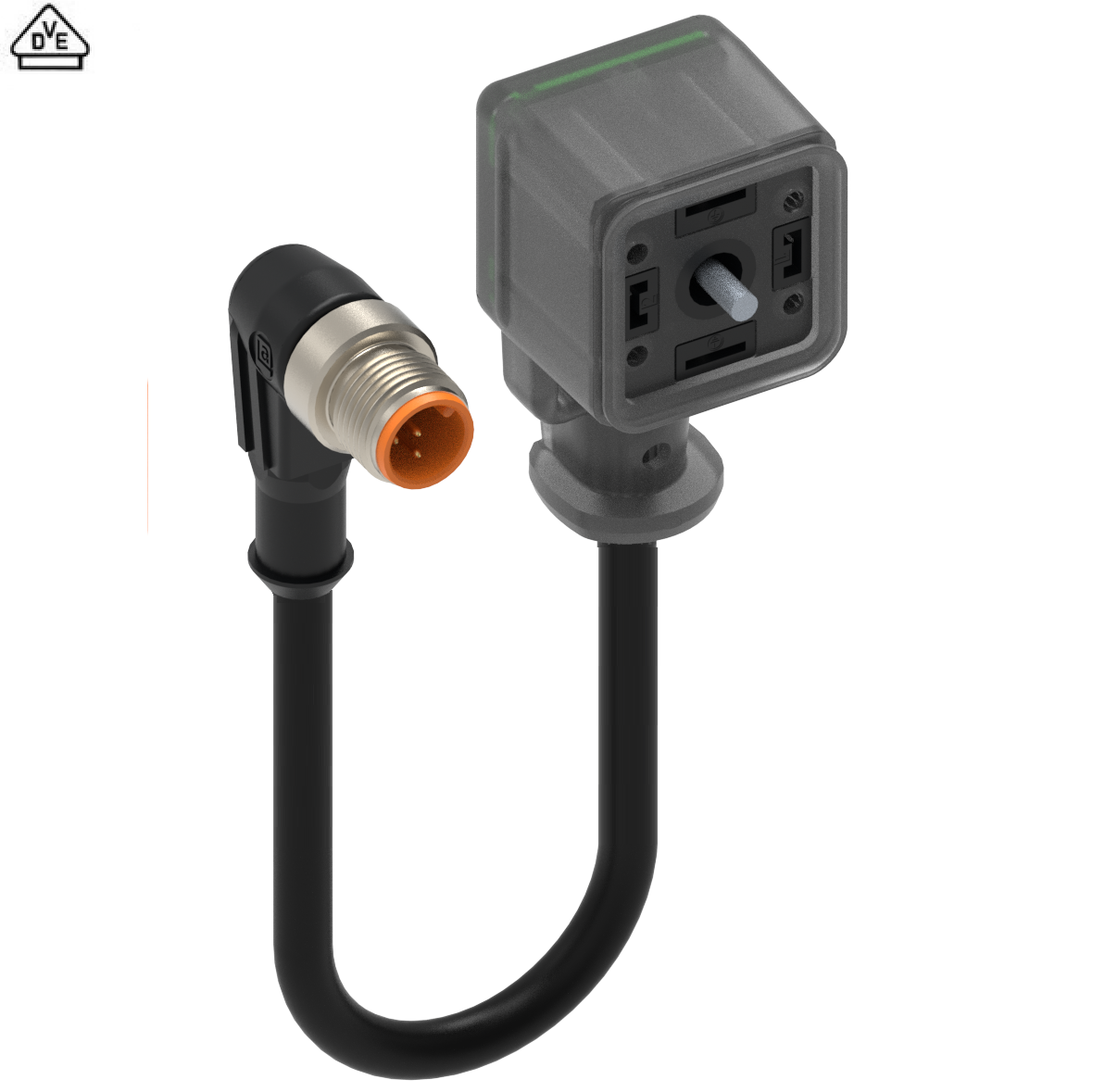

Product Number: RSWT 5-3-GAN22LU-L14-212

M12-Form A | M12- Male 90° | #Contacts: 3 | Form A - Female 90° | #Contacts: 2+2 PE | yellow LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Information

Product Family	Valve Connectors
Connector Type	Cordset, double ended
Shielding Type	Unshielded
Voltage Rating	24 V
Rated Impulse Voltage	4.0 kV (PCBA 2.0 kV)
Operating Voltage	24 V AC/DC
Current Rating	4 A
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	Notice derating
Update and Revision	Revision Number: 0.16 Revision Date: 05-02-2026

Face View Side 1

Pin 3	blue
Pin 4	brown
Pin 5	green-yellow

Face View Side 2

Pin 1	brown
Pin 2	blue
PE1	green-yellow
PE2	green-yellow

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Pin Contact / Male
Connector Design	Molded \| M12 Male \| Angled
Attachment Type	Coupling Screw
Number of Pins	3
Coding, Side 1	A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Cross Section	0.50 mm2
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Side 1 Design Standard	IEC 61076-2-101
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	Copper Alloy (CuSn)
Side 1 Contact Plating	Gold over Copper (Cu/Au)
Contact Bearer Material	Thermoplastic Polyurethane (TPU)
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Grey Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Copper Allloy (CuZn)
Attachment Plating	Nickel (Ni)
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	1. Do not connect or disconnect under load.

Cable Data

Cable Number	212
Conductor Size	0.5 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 1 mio
Conductor Material	Cu
Cable Jacket Material	Polyvinyl Chloride (PVC)
Cable Jacket Color	Black
Cable Diameter D	Ø 5.0 mm \| 0.197"
Wire Insulation Material	Polyvinyl Chloride (PVC)
Insulated Wire Diameter	Ø 1.70 mm \| 0.07"
Ambient Temperature (Fixed Installation)	- 40 °C to + 70 °C
Ambient Temperature (Flex Installation)	+ 5 °C to + 70 °C
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
Cable Characteristics	Flexibility: Good \| Abrasion Resistance: Good \| Chemical Resistance: resists water, oil, acids, and alkalis\| Flame Retardance: Good \| Halogen-Free: No \| Mechanical Durability: Good (resists impact, tear, and flex) \| Environmental Suitability: Indoor, excellent balance of performance, cost, and versatility

Technical Data Side 2

Side 2 Product Sub Family	GAN
Side 2 Type of Contact/Gender	Socket Contact / Female
Connector Design, Side 2	Molded \| Form A \| Angled
Attachment Type, Side 2	Central Screw
Number of Pins, Side 2	2+2 PE
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 50
Ambient Temperature (Operation), Side 2*	- 25 °C - + 85 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67*
Design Standard, Side 2	DIN EN 175301-803-A, ISO 4400
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance, Side 2	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	Copper Alloy (CuZn)
Contact Plating, Side 2	Copper over Tin (Cu/Sn)
Contact Bearer Material, Side 2	Glass-filled Polyamides (PA GF)
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2	Grey Translucent
Flammability Class (Molded Body), Side 2	UL 94 HB
Attachment Material, Side 2	Steel, Philips combi slot
Gasket Material, Side 2	Molded Integrated Gasket
Function Indicator, Side 2	Yellow LED
Protective Circuit, Side 2	No Protective Circuit
Fastening Torque (Attachment), Side 2	Form A: (50-60) Ncm, hand-tight
Accessories to Order Separately, Side 2	934887001 - GAN EPDM gasket and holding clip
Note, Side 2	1. Do not connect or disconnect under load. 2. Extended temperature range of -40°C performed by Belden in mated condition using EPDM gasket accessory.

Approvals

VDE	Yes

Safety & Environmental Compliance

RoHS Compliant	Yes

Resistances

Halogenfree	Yes
Oil Resistance	Good chemical and oil resistance

Notes

Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating	Notice derating
Update and Revision	Revision Number: 0.16 Revision Date: 05-02-2026
