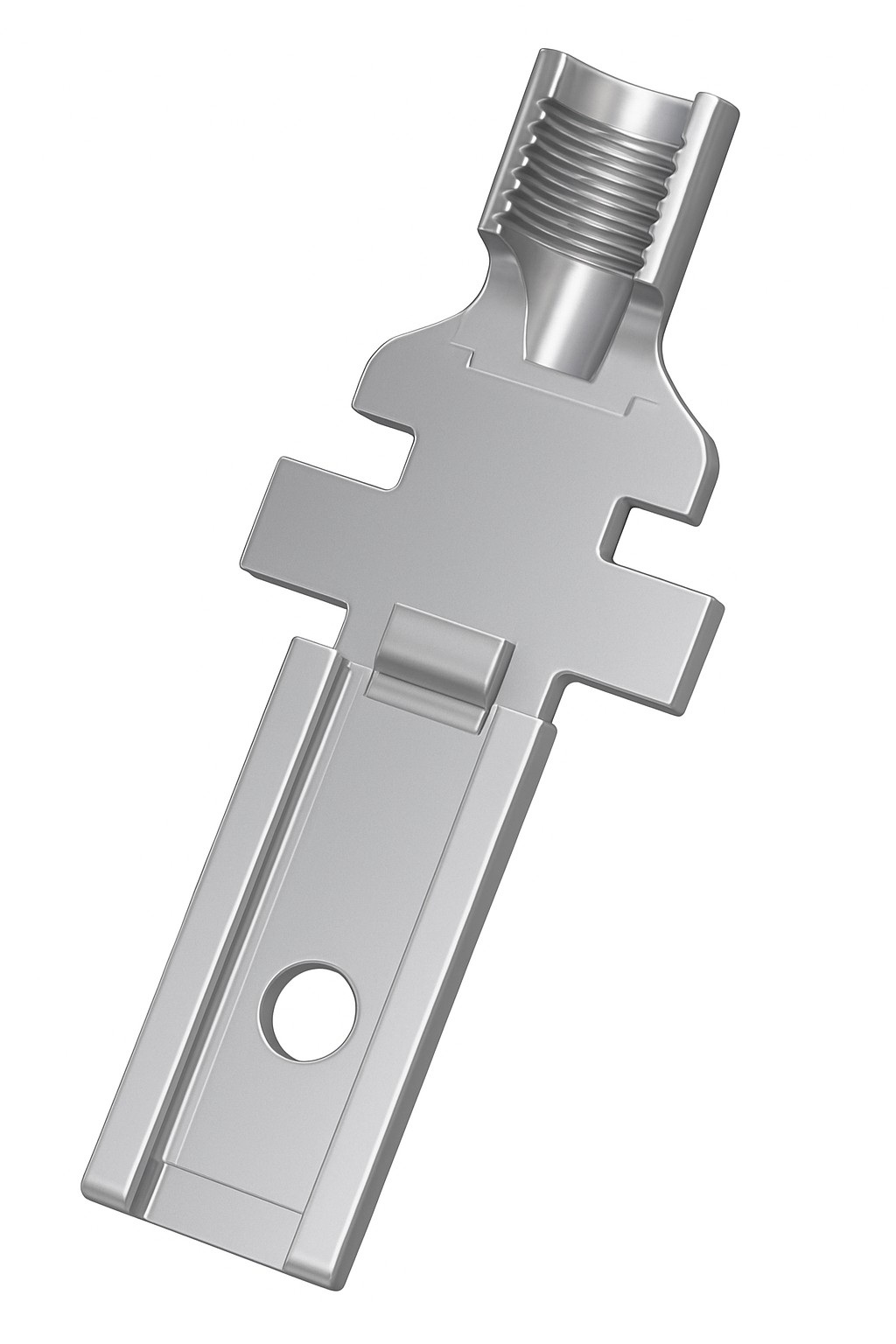

RMCB 480

Product Number: RMCB 480

GSC - Contact| Form A | | 3000 piece coil

Form A | Blade Contact | 0.50 - 1.5 mm2 | Coiled Packaging | 3000 piece coil

Availability
Global
Status
Active
Request a quote

Ships from and sold by A5 IT.

Specifications

Face View

Product FamilyValve Connectors
Side 1 Product Sub FamilyField Attachable Accessories
Connector TypeCrimp contact
Side 1 Type of Contact/GenderBlade Contact / Male
Connector DesignForm A | Accessory
Coding, Side 1A
Shielding TypeUnshielded
Type of ConnectionCrimp
Cross Section0.50 - 1.5 mm2
Ambient Temperature (Operation)*- 40 °C to + 125 °C
Side 1 Design StandardDIN EN 175301-803-A, ISO 4400

Materials

Contact Base MaterialBrass (CuZn)
Side 1 Contact PlatingCopper-Tin Alloy (Cu/Sn)

Safety & Environmental Compliance

REACHCompliant
RoHS CompliantCompliant

Resistances

HalogenfreeYes

Notes

NoteFor use with GSC Connector [ 3000 pieces coiled ]

Resources

Belden RMCB 480 technical datasheetHirschmann GDM Series Valve ConnectorsBelden Industrial Valve ConnectorsIndustrial Valve Connectors (Chinese)
