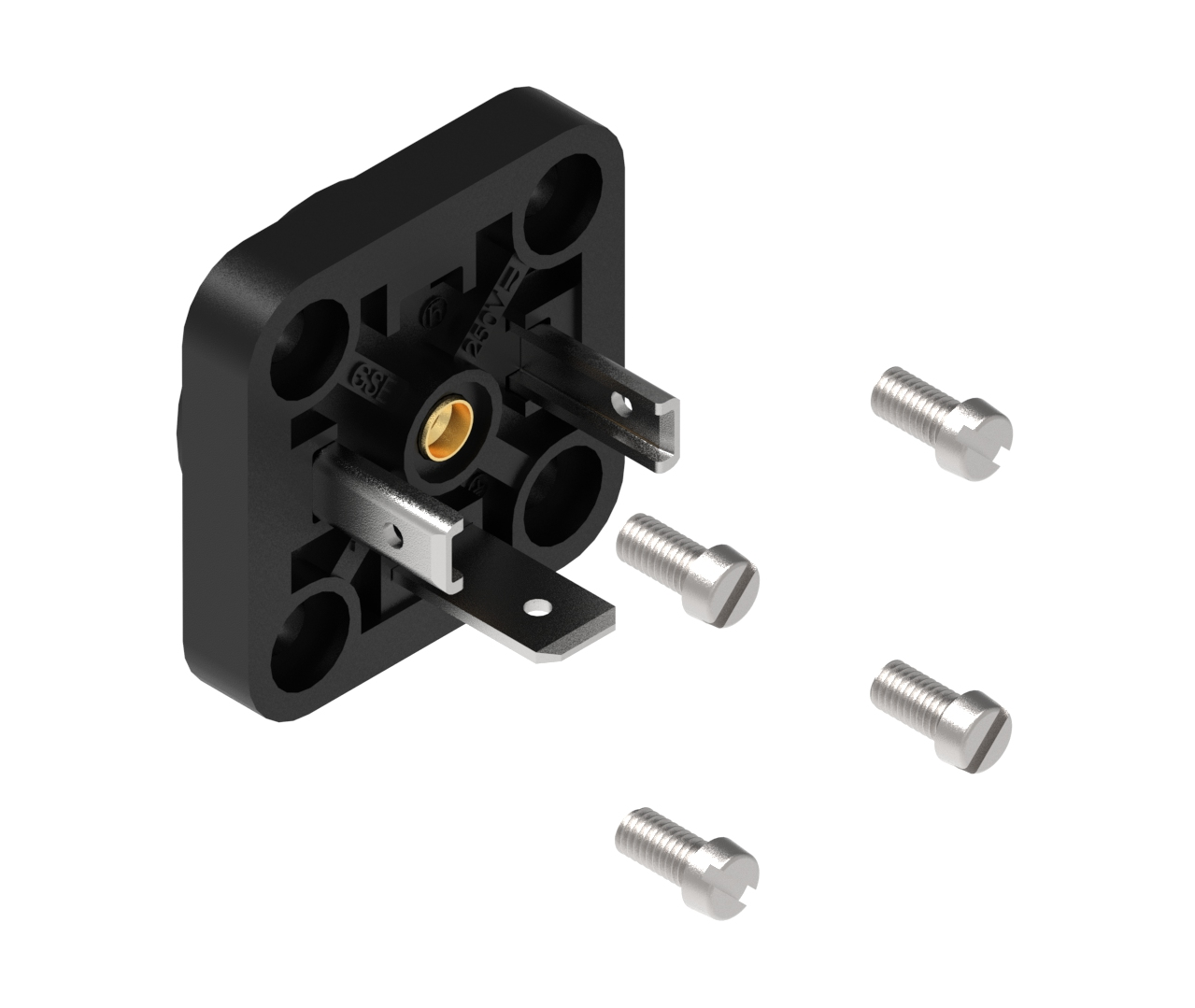

GSE - Male Receptacle for sheet metal installation, Form A, Contacts: 2+PE, 400 V | 16 A
175301-803-A (DIN 43650-A): Male Receptacle for sheet metal installation, Form A, Contacts: 2+PE, 400 V | 16 A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
GSE 2000 N4 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 932886100 | GSE 2000 N4 | Order online |
Specifications
Face View
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | GSE |
| Connector Type | Receptacle |
| Connector Sub Type | Rectangular receptacle with round collar, solder contacts and without oblong holes |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 2+PE |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | 4 screws M 3 x 6 |
| Rated Impulse Voltage | 4.0 kV |
| Operating Voltage | 400 V AC/DC |
| Current Rating | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Solder |
| Cross Section | 0.08 - 1.5 mm2 |
| Ambient Temperature (Operation)* | -40 °C - +125 °C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 175301-803-A, ISO 4400 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Housing Color | black |
Circuitry
| Fastening torque (mounting screw) | (50-60) Ncm |
|---|---|
| Mount Type | M3 (4x) |
| Accessories to Order Separately | (NBR) flat gasket GSE 2000-2, Part Number. 733973002; (EPDM) flat gasket GSE 2000-3,Part Number. 733846003; (FKM) flat gasket GSE 2000-4,Part Number. 735723002 |
Approvals
| VDE | yes |
|---|---|
| SEV | yes |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | *IP Rating test performed by Belden with Belden Connectors only |
| Note | Do not connect or disconnect under load. |
