Product Number: GSA-U 2000 N

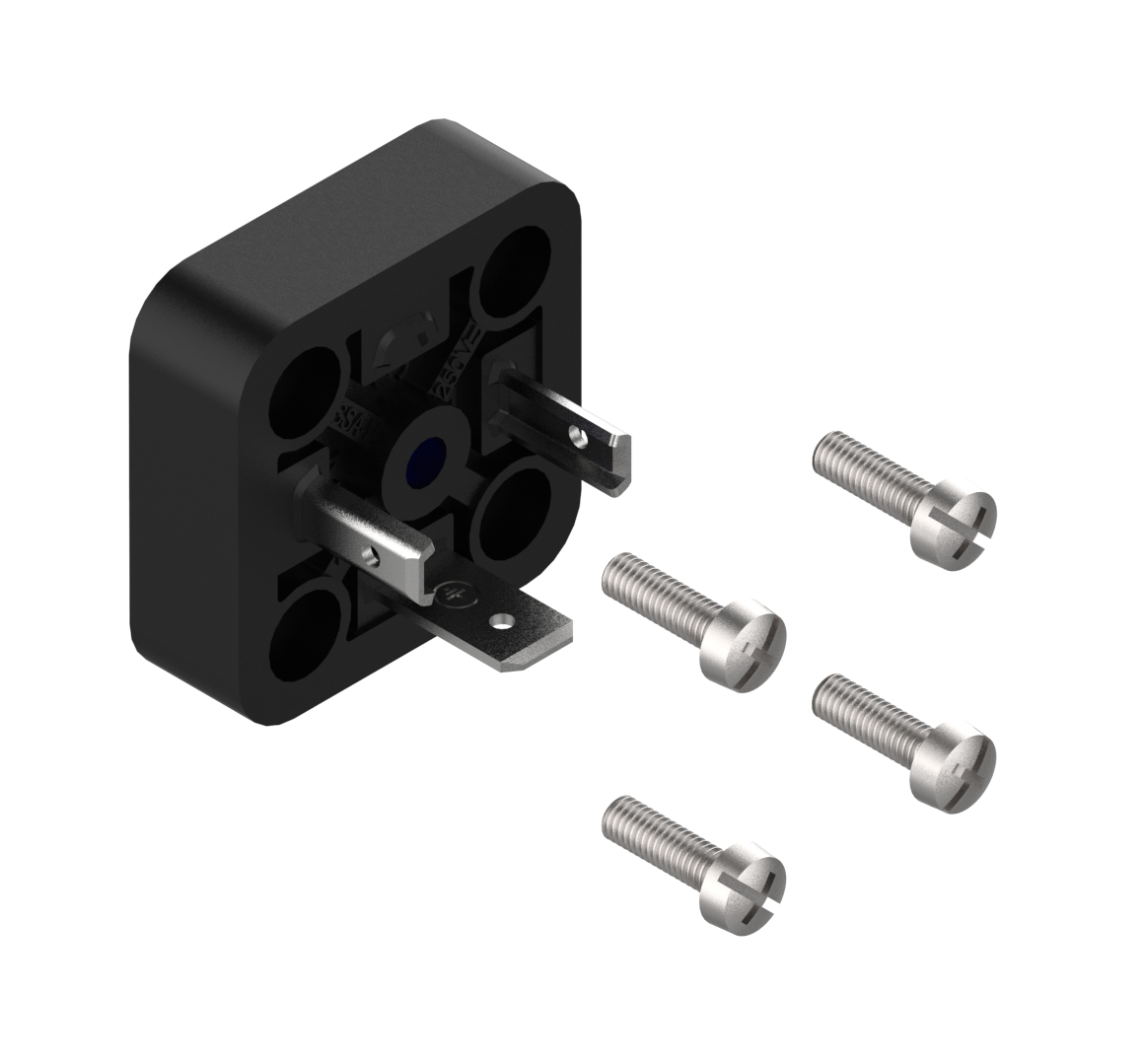

GSA-U - Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type, 400 V | 16 A; cURus 1977

Name: Belden GSA-U 2000 N
Brand: Hirschmann
SKU: GSA-U 2000 N

175301-803-A (DIN 43650-A): Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type, 400 V | 16 A; cURus 1977

Ships from and sold by A5 IT.

Part numbers

GSA-U 2000 N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Packaging	Order
933378100	GSA-U 2000 N LO	S - Bulk Packaging, 200 pieces per carton, unassembled	Order online

Product Family	Valve Connectors
Side 1 Product Sub Family	GSA-U
Connector Type	Receptacle
Connector Sub Type	Rectangular molded receptacle with solder contacts
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	2+PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	4 screws M 3 x 10
Rated Voltage (UL)	300 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	400 V AC/DC
Current Rating	16 A
Rated Current (UL)*	15 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Solder
Cross Section	0.08 - 1.5 mm2
Ambient Temperature (Operation)*	-40 °C - +125 °C
Operating Temperature (UL)	max. + 90 °C
Protection Degree / IP Rating**	IP65 / IP67
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Color	black

Fastening torque (mounting screw)	(50-60) Ncm
Mount Type	M3 (2x)
Accessories to Order Separately	(NBR) flat gasket GSA 200-4, Part Number. 730843002; (EPDM) flat gasket GSA 200-7,Part Number. 730268003

RoHS Compliant	yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.
