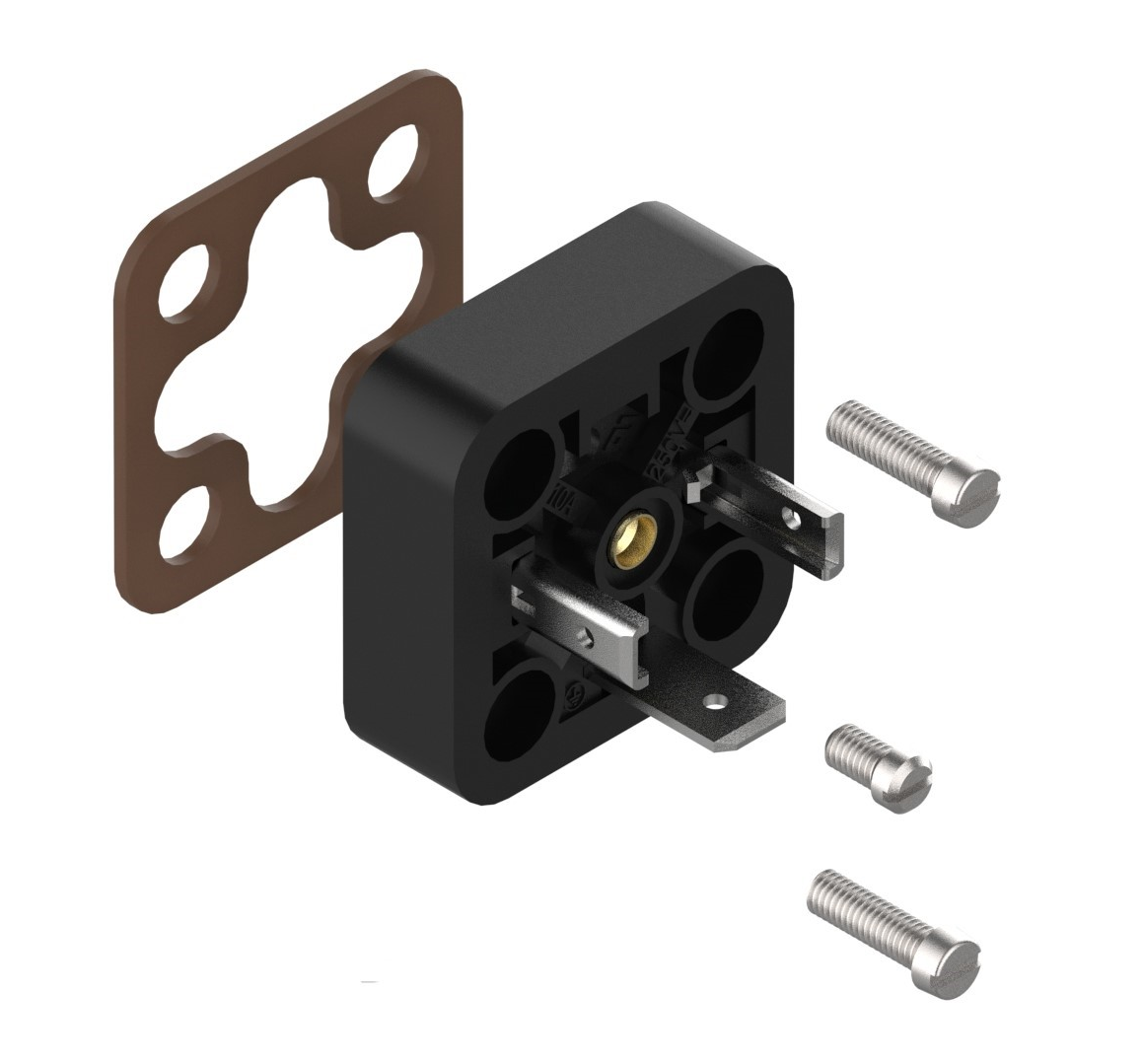

GSA - Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type, 400 V | 16 A, includes EDPM flat gasket ; cURus 1977
175301-803-A (DIN 43650-A): Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type (PE screw type), 400 V | 16 A, includes EDPM flat gasket; cURus 1977
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
GSA 2000N-1BW is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Packaging | Replacement For | Order |
|---|---|---|---|---|
| 36312 | GSA 2000 N- 1BW | Single Pack, 1 piece per package | ID: 932967300 Name: GSA 2000 N + 200-7 | Order online |
Specifications
Face View
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | GSA |
| Connector Type | Receptacle |
| Connector Sub Type | Rectangular receptacle with solder contacts and without oblong holes |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 2+PE |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | 2 screws M 3 x 10 |
| Replacement for | ID: 932967300 Name: GSA 2000 N + 200-7 |
| Rated Voltage (UL) | 300 V |
| Rated Voltage (CSA) | 250 V |
| Rated Impulse Voltage | 4.0 kV |
| Current Rating | 16 A |
| Rated Current (UL)* | 15 A |
| Rated Current (CSA)* | 10 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Solder / PE Screw |
| Cross Section | 0.08 - 1.5 mm2 |
| Ambient Temperature (Operation)* | -40 °C - +125 °C |
| Operating Temperature (UL) | max. + 90 °C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 175301-803-A, ISO 4400 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Color | black |
| Gasket Material | EDPM flat gasket included with packaging |
Circuitry
| Fastening Torque (Contact Screw) | (50-60) Ncm |
|---|---|
| Fastening torque (mounting screw) | (50-60) Ncm |
| Mount Type | M3 (2x) |
Approvals
| UL-File | E95522 |
|---|---|
| UL | UL 1977; UR |
| VDE | yes |
| CSA | yes |
| SEV | yes |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | *IP Rating test performed by Belden with Belden Connectors only |
