Product Number: GSA 20

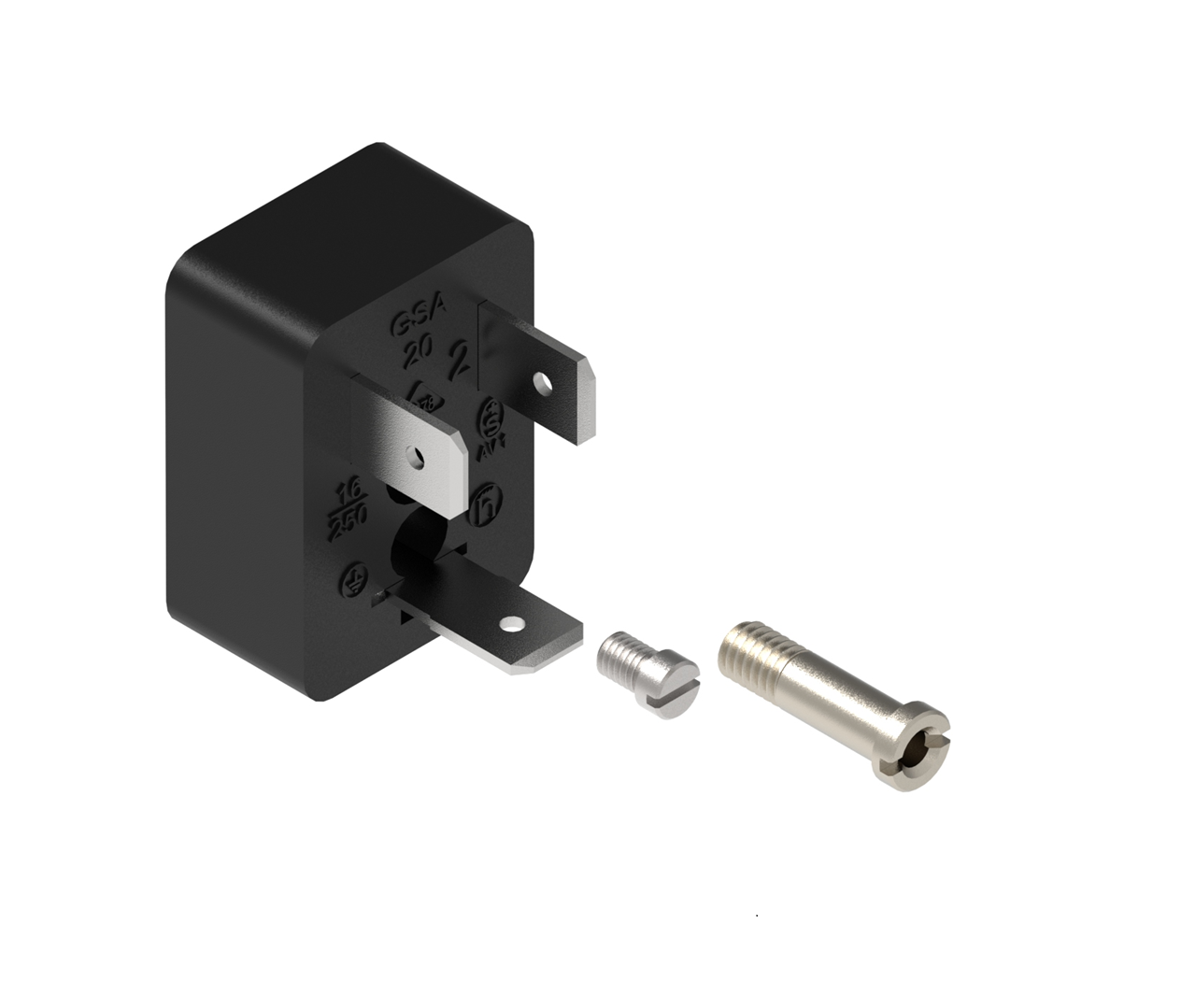

GSA - Male Receptacle Surface Mount, Form B IND, Contacts: 2+PE, 250 V | 16 A; cURus 1977

Name: Belden GSA 20
Brand: Hirschmann
SKU: GSA 20

Industrial Standard: Male Receptacle Surface Mount, Form B, Contacts: 2+PE, 250 V | 16 A; cURus 1977

Ships from and sold by A5 IT.

Part numbers

GSA 20 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Packaging	Order
931352100	GSA 20	S - Bulk Packaging, 200 pieces per carton, unassembled	Order online

Product Family	Valve Connectors
Side 1 Product Sub Family	GSA Industrial Standard
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	2+PE
Coding, Side 1	B
Shielding Type	Unshielded
Attachment Type	1 hollow screw
Voltage Rating	250 V
Rated Voltage (UL)	300 V
Rated Voltage (CSA)	250 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	16 A
Rated Current (UL)*	12 A
Rated Current (CSA)*	10 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Solder / PE Screw
Cross Section	0.08 - 1.5 mm2
Ambient Temperature (Operation)*	-40 °C - +125 °C
Operating Temperature (UL)	max. + 90 °C
Protection Degree / IP Rating**	IP65
Side 1 Design Standard	INDUSTRIAL-B (NEMA)
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Color	black

Fastening Torque (Contact Screw)	(50-60) Ncm
Fastening torque (mounting screw)	(50-60) Ncm
Mount Type	M4 (1x)

RoHS Compliant	yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.
