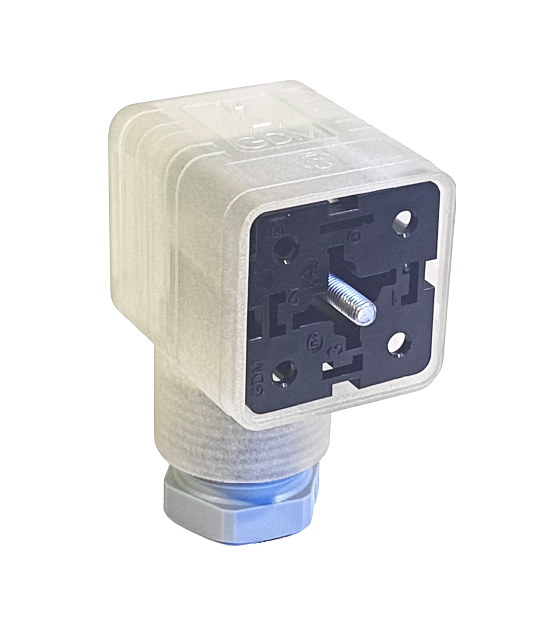

Product Number: GDML 3011 LED 230 RG grey

DIN Valve Connector, Form A, Field Attachable, 3+Ground, PG11, Translucent Housing, 2 LED's for Pressure Switch, 250 V

GDM - 175301-803 (DIN 43650), Form A, Female, 18mm, Translucent Housing, 3+Ground (Protective Earth). screw contacts, PCB for Pressure Switch with 2 LED's, 250 DC, 8A, grey cable gland PG11 thread

Availability: Global
Status: Limited Availability/Passive
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

GDML 3011 LED 230 RG grey is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Central Screw	Gasket	Packaging	Order
933748712	GDML 3011 LED 230 RG grey	1- Steel Screw, Combi Head	0 - Sold Separately	D - Collect packaging 50 pieces, assembled	Order online

Specifications

Technical data

Product Family	Valve Connectors
Side 1 Product Sub Family	GDM Legacy
Connector Type	Field Attachable
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	3+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cable Gland	PG11
Cross Section	0.25 - 1.5 mm2
Suitable Cables	Ø 4.5 – 11 mm
Ambient Temperature (Operation)*	-40 °C - +80 °C
Protection Degree / IP Rating**	IP65
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Color	Translucent
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	PA GF
Cable Gland Gasket	NBR
Cable Gland Color	Grey
Attachment Material	Steel, Philips combi slot
Gasket Material	Sold separately

Circuitry

Fastening Torque (Contact Screw)	(40-50) Ncm for conductor size 0.25 - 1.5 mm2; (30-40) Ncm for conductor size 0.34 mm2; (25-30) Ncm for conductor size 0.25 mm2
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening Torque (Attachment)	(50-60) Ncm

Approvals

VDE	No
SEV	No

Safety & Environmental Compliance

RoHS Compliant	Yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
