Product Number: GDML 2011 LED 24 VR

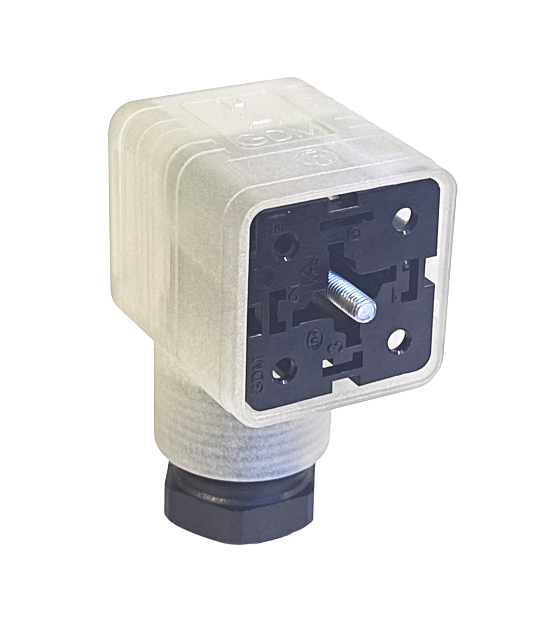

GDM Legacy- 175301-803 (DIN 43650), Form A, 18mm, 2 Pole+Ground (Protective Earth), Translucent Housing, PG11 Black Gland Nut, PCBA with Red LED, and Varistor, 24V | 8 A, Steel Center Screw, Bulk Packaging

Availability: Global
Status: Obsolete
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

GDML 2011 LED 24 VR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Central Screw	Gasket	Packaging	Replaced By	Order
932521002	GDML 2011 LED 24 VR black	1- Steel Screw, Combi Head	0 - Sold Separately	D - Collect packaging 50 pieces, assembled	ID: 934888185 Name: GDM21FB-V2C-10D	Order online

Specifications

Product Life Cycle

Availability	New Model Available
Discontinuation Announcement Date	2024-03-06
Last Order Date	2024-08-02
Last Delivery Date	2024-12-31

Technical data

Product Family	Valve Connectors
Side 1 Product Sub Family	GDM Legacy
Connector Type	Field Attachable
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Replaced by	PF_GDM21FB-V2C-10D
Voltage Rating	24 V
Rated Impulse Voltage	4.0 kV (PCBA 2.0 kV)
Operating Voltage	24 V AC/DC
Current Rating	8 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw
Cable Gland	PG11
Cross Section	0.25 - 1.5 mm2
Suitable Cables	Ø 4.5 - 11 mm
Ambient Temperature (Operation)*	-25°C to +80°C
Protection Degree / IP Rating**	IP65
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	PA GF
Housing Color	Translucent
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	PA GF
Cable Gland Gasket	NBR
Cable Gland Color	Black
Attachment Material	Steel, Philips combi slot
Gasket Material	Sold separately

Circuitry

Function Indicator	Red LED
Protective Circuit	Varistor
Fastening Torque (Contact Screw)	(50-60) Ncm
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening Torque (Attachment)	(50-60) Ncm

Approvals

VDE	Yes
SEV	Yes

Safety & Environmental Compliance

RoHS Compliant	Yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product
