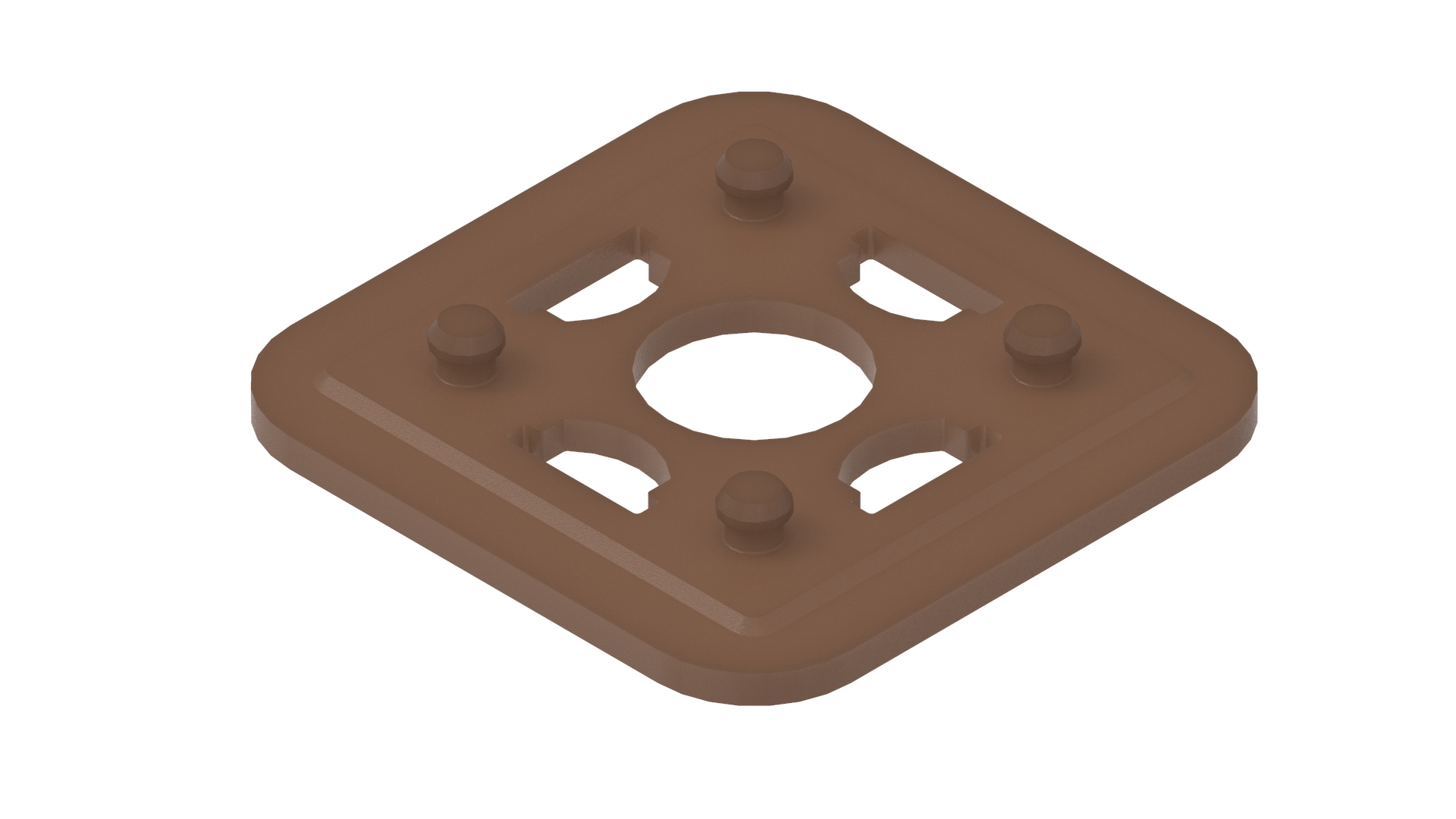

GDMF-6, Accessory, Captive Gasket for Form A Female connectors
GDM - 175301-803 (DIN 43650), Form A, Gasket, 18mm, Captive , for use with select Form A field attachable females, EPDM, brown
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
GDMF-6 EPDM BN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Packaging | Order |
|---|---|---|---|
| 735677004 | flat gasket GDMF EPDM bn packed (100 St) | Collect packaging, bag of 50 pieces | Order online |
Specifications
Face View
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | Field Attachable Accessories |
| Connector Type | Gasket |
| Connector Design | Captive |
| Coding, Side 1 | A |
| Attachment Type | Captive |
| Ambient Temperature (Operation)* | -40° C ... +125° C |
Materials
| Gasket Material | EPDM - brown |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes |
|---|
Notes
| Note | Compatiability may be limited by connector body design. See selection guide under downloads for more info. |
|---|
