Product Number: GDME 2020 V0 black

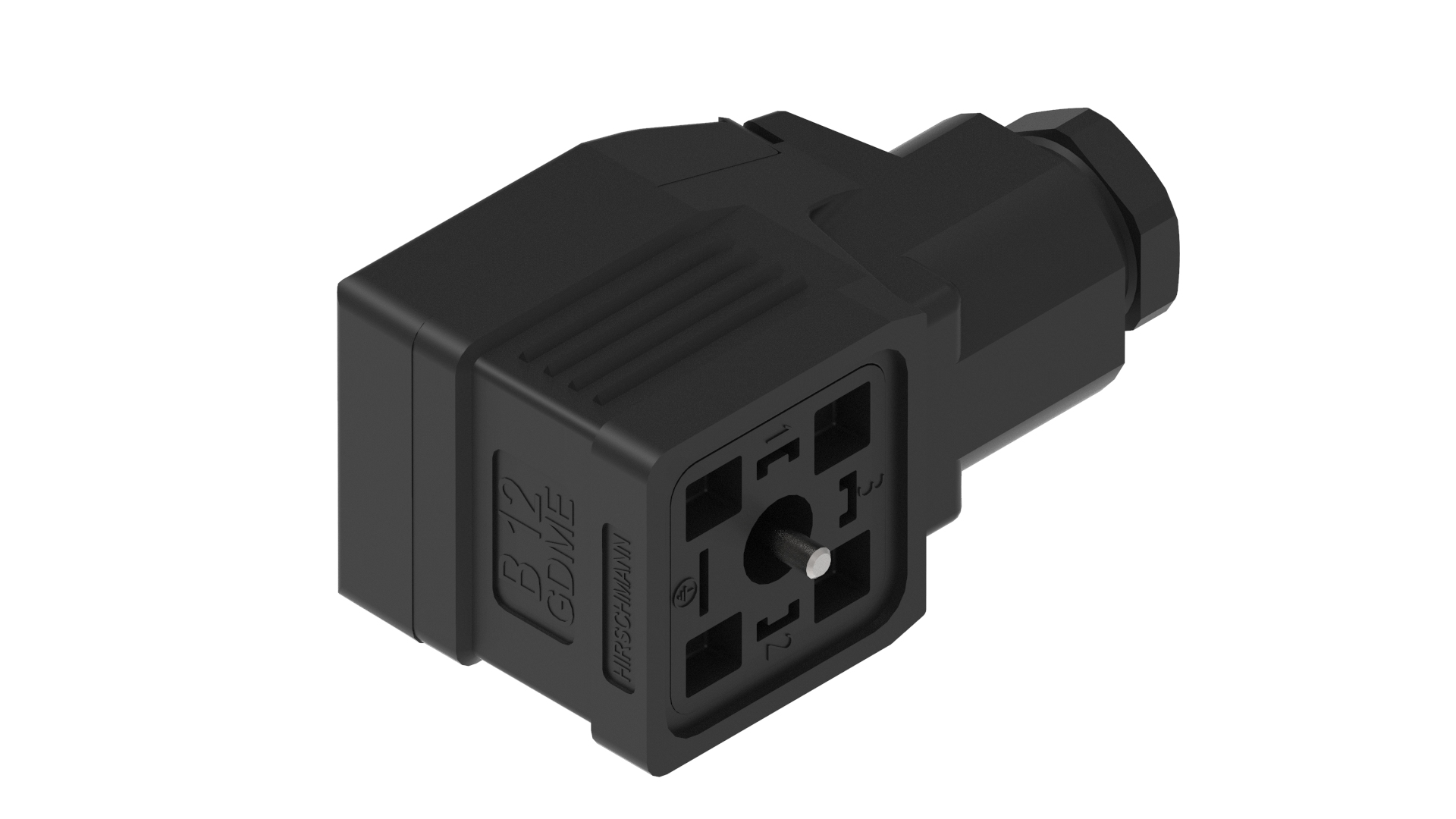

Heavy Duty: DIN Valve Connector, Form A, Field Attachable, 2+Ground, M20x1.5, Black Housing, without circuitry, 230 V DC / 400 V AC AC/DC, UL 2238, DNV Maritime

GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE), black housing and with black lid, screw type, M20x1; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

GDME 2020 V0 black is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Central Screw	Gasket	Packaging	Order
934455200	GDME 2020 V0 black	1- Steel Screw, Combi Head	0 - Sold Separately	D - Collect packaging 50 pieces, assembled	Order online

Specifications

Information

Item Description	GDME 2020 V0 BLACK
Note Derating	Notice Derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load.

Product Life Cycle

Availability	Active
Product Family	Valve Connector
Side 1 Product Sub Family	GDME Heavy Duty
Connector Type	Field Attachable
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2+PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Rated Voltage (UL)	300 V without optional inserts
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V DC / 400 V AC without optional inserts
Current Rating	16 A
Rated Current (UL)*	10 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw
Cable Gland	M20 x 1.5
Cross Section	0.50 - 1.5 mm2 [ 20 AWG - 16 AWG ]
Strain-Relief	Bracket
Suitable Cables	Ø 7 - 13 mm
Ambient Temperature (Operation)*	-40°C to +85°C
Protection Degree / IP Rating**	IP65, mated
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA 66 GF
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Housing Material	PA 66 GF
Housing Color	Black
Flammability Class (Housing)	UL 94 V-0
Cable Gland Material	PA 66 GF
Cable Gland Gasket	NBR
Cable Gland Color	Black
Strain-Relief Material	PA 6 GF
Attachment Material	Central Screw, M3 x 40, 4.8 , Fe/Zn B
Cover Material	PA 66 GF, Black
Flammability Class (Cover)	UL 94 V-0
Gasket Material	Sold Separately

Circuitry

Fastening Torque (Contact Screw)	M3: (30-35) Ncm
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening torque (strain relief screw)	(50-60) Ncm
Fastening Torque (Attachment)	M3 (50-60) Ncm

Approvals

UL-File	UL 2238, E315587
VDE	Yes [VDE-Reg.-Nr.: 1978]
DNV	YES, TAA000032V

Safety & Environmental Compliance

RoHS Compliant	Yes

Notes

Note Derating	Notice Derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect or disconnect under load.
