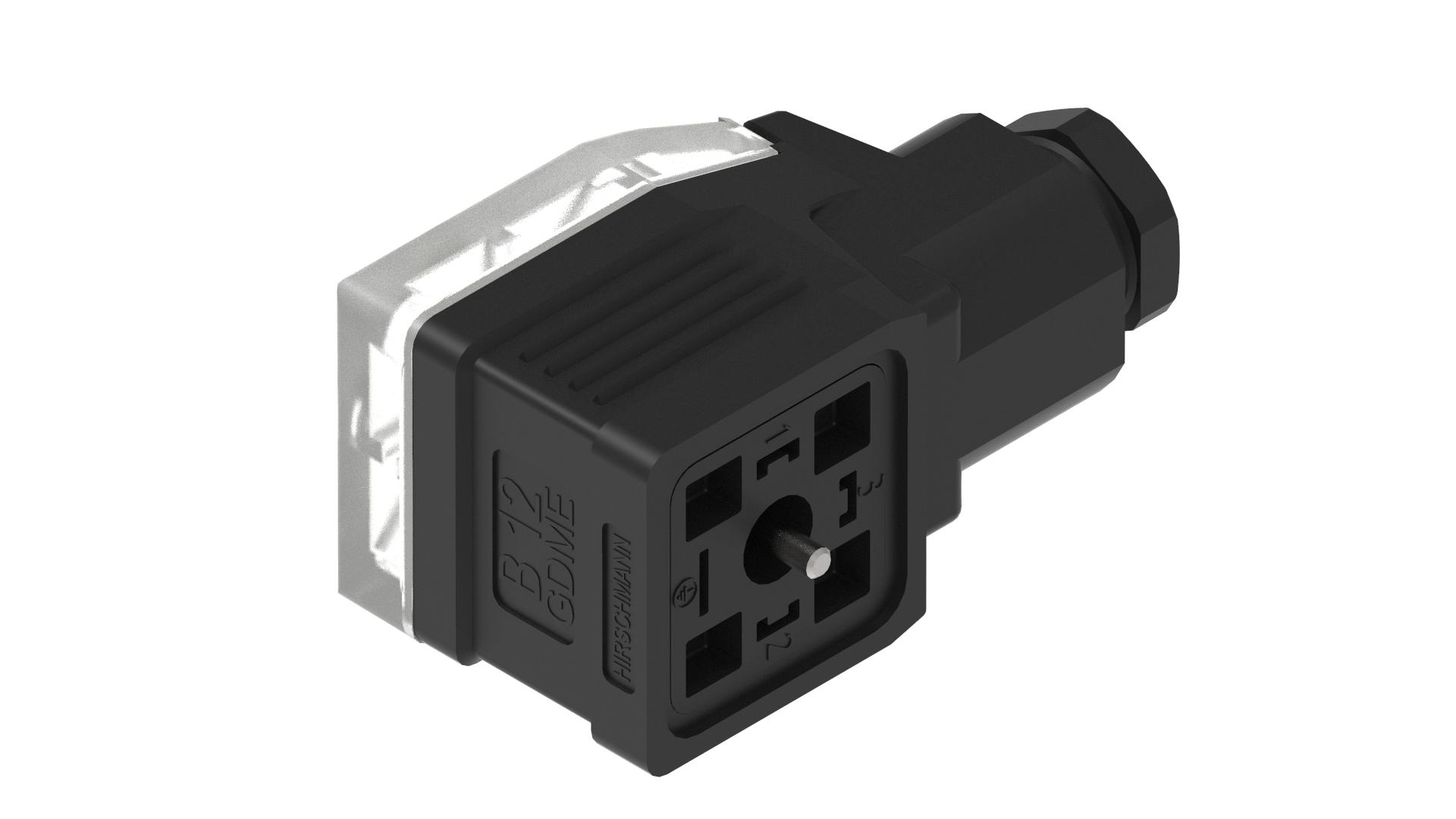

GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing with transparent cover, screw type, PG11; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A
Heavy Duty Form A, 18mm - Female Angled | #Contacts: 2+Ground (PE), Screw Type | No Protective Circuit (sold seperately) | 400 V / 16 A | Black Housing, Black PG 11 Cable Gland | Included: Central Screw | Bulk Packaging
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
GDME 2011 black is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Central Screw | Gasket | Packaging | Order |
|---|---|---|---|---|---|
| 933029100 | GDME 2011 black | 1 - Central Screw Steel, combi head | 0 - Sold Seperately | D - Collect packaging 50 pieces, assembled | Order online |
Specifications
Information
| Item Description | GDME 2011 black |
|---|---|
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Product Life Cycle
| Availability | Active |
|---|---|
| Product Family | Valve Connectors |
| Side 1 Product Sub Family | GDME Heavy Duty |
| Connector Type | Field attachable |
| Connector Sub Type | Form A |
| Side 1 Type of Contact/Gender | Socket Contacts / Female |
| Connector Design | Angled (90°) Body |
| Number of Pins | 2+PE (PE across cable outlet) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Central Screw, M 3 x 40 |
| Voltage Rating | 400 V |
| Rated Impulse Voltage | 4.0 kV |
| Operating Voltage | 230 V DC / 400 V AC |
| Current Rating | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Screw terminal |
| Cable Gland | PG11 |
| Cross Section | 0.25 - 1.5 mm2 |
| Strain-Relief | Bracket |
| Suitable Cables | Ø 4.5 - 11 mm |
| Ambient Temperature (Operation)* | - 40 °C to + 80 °C [ Connector ] - 30 °C to + 80 °C [ when mated with NBR gasket] - 15 °C to + 80 °C [ when mated with FKM gasket] - 40 °C to + 80 °C [ when mated with EPDM or MPQ gasket] |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 175301-803-A, ISO 4400 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Tin Alloy (Cu/Sn) |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Housing Color | Black with translucent cover |
| Flammability Class (Housing) | UL 94 V-0 |
| Cable Gland Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Cable Gland Gasket | Nitrile Butadiene Rubber (NBR) |
| Cable Gland Color | Black |
| Flammability Class (Cable Gland) | UL 94 HB |
| Strain-Relief Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Attachment Material | Steel Fastener (4.8 , Fe/Zn B) |
| Cover Material | PA GF |
| Flammability Class (Cover) | UL 94 HB |
| Gasket Material | Sold separately |
Circuitry
| Protection Circuitry | No Protective Circuit (Sold Seperately) |
|---|---|
| Function Indicator | Yellow LED |
| Fastening Torque (Contact Screw) | M3: (25-30) Ncm |
| Fastening Torque (Cable Gland) | (150-200) Ncm |
| Fastening torque (strain relief screw) | (50-60) Ncm |
| Fastening Torque (Attachment) | (50-60) Ncm |
Approvals
| VDE | VDE-Reg.-Nr.: E349 |
|---|---|
| SEV | Yes |
Safety & Environmental Compliance
| REACH | Yes |
|---|---|
| RoHS Compliant | Compliant |
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
