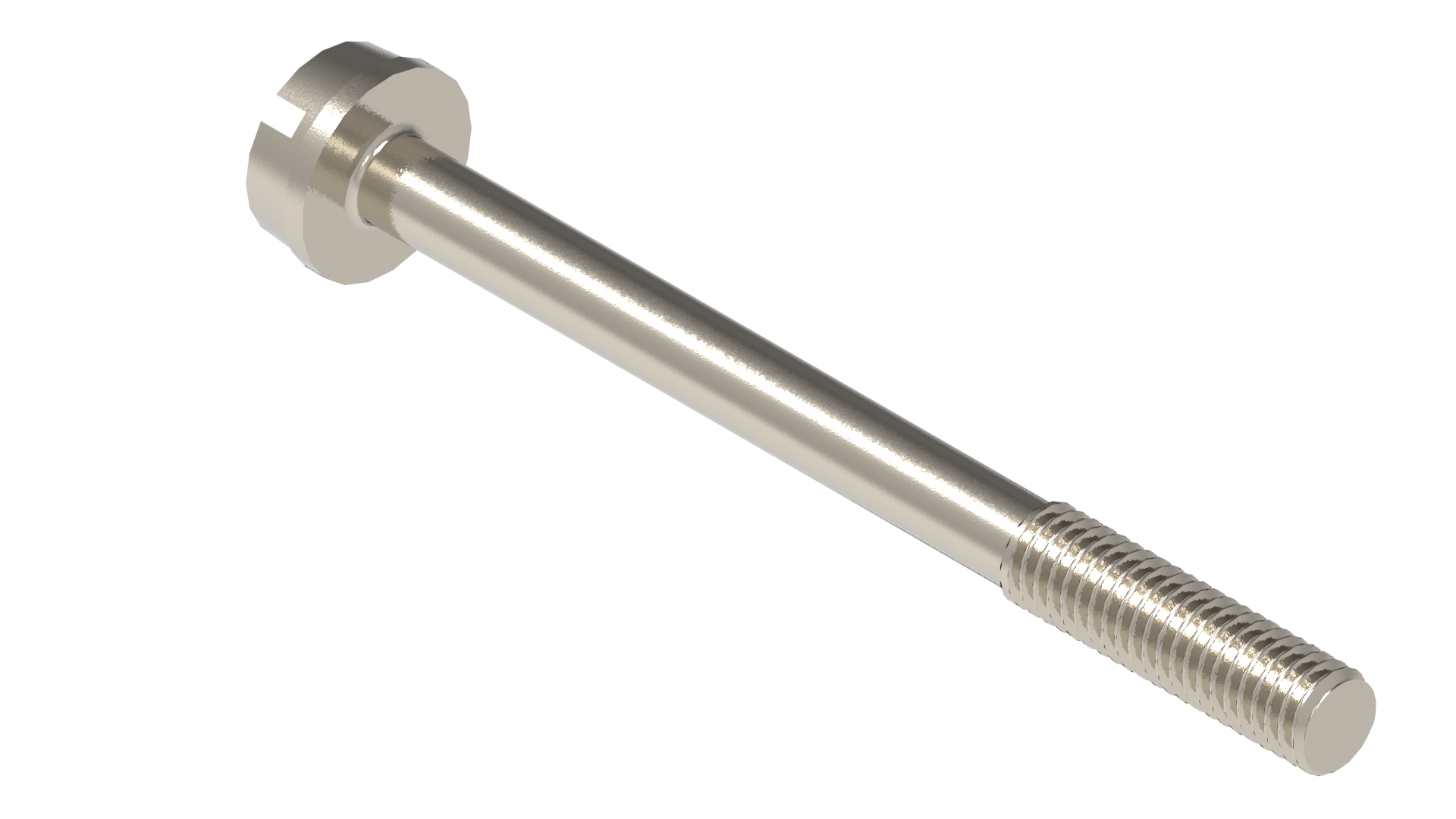

GDM 3011 RF-1, Accessory, mounting screw for field attachable female
GDM - 175301-803 (DIN 43650), Form A, Gasket, 18mm, Phillips Head, Stainless Steel, for use with select Form A field attachable females
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
GDM 3011 RF-1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Packaging | Order |
|---|---|---|---|
| 734363001 | GDM 3011 RF-1 (VPE 100) | Collect packaging, bag of 100 pieces | Order online |
Specifications
Face View
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | Field Attachable Accessories |
| Connector Type | Mounting Screw |
| Connector Design | Phillips Head |
| Coding, Side 1 | A |
| Attachment Type | M 3 x 35 |
| Ambient Temperature (Operation)* | -55° C ... +125° C |
Materials
| Attachment Material | Stainless Steel, 316 - Silver |
|---|
Circuitry
| Fastening Torque (Contact Screw) | 50 - 60 Ncm |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes |
|---|
Notes
| Note | For use with most GDM series connectors |
|---|
