Form A, 18mm - Female 90° | #Contacts: 2+Ground (PE), Screw Type | No Protective Circuit | 250 V | Grey Housing, Grey PG11 Cable Gland | Included: Central Screw | Bulk Packaging | cURus
Form A, 18mm - Female Angled | #Contacts: 2+Ground (PE), Screw Type | No Protective Circuit | 250 V / 16A | Grey Housing, Grey PG11 Cable Gland | Included: Central Screw | Bulk Packaging | UL 1977; cURus
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers

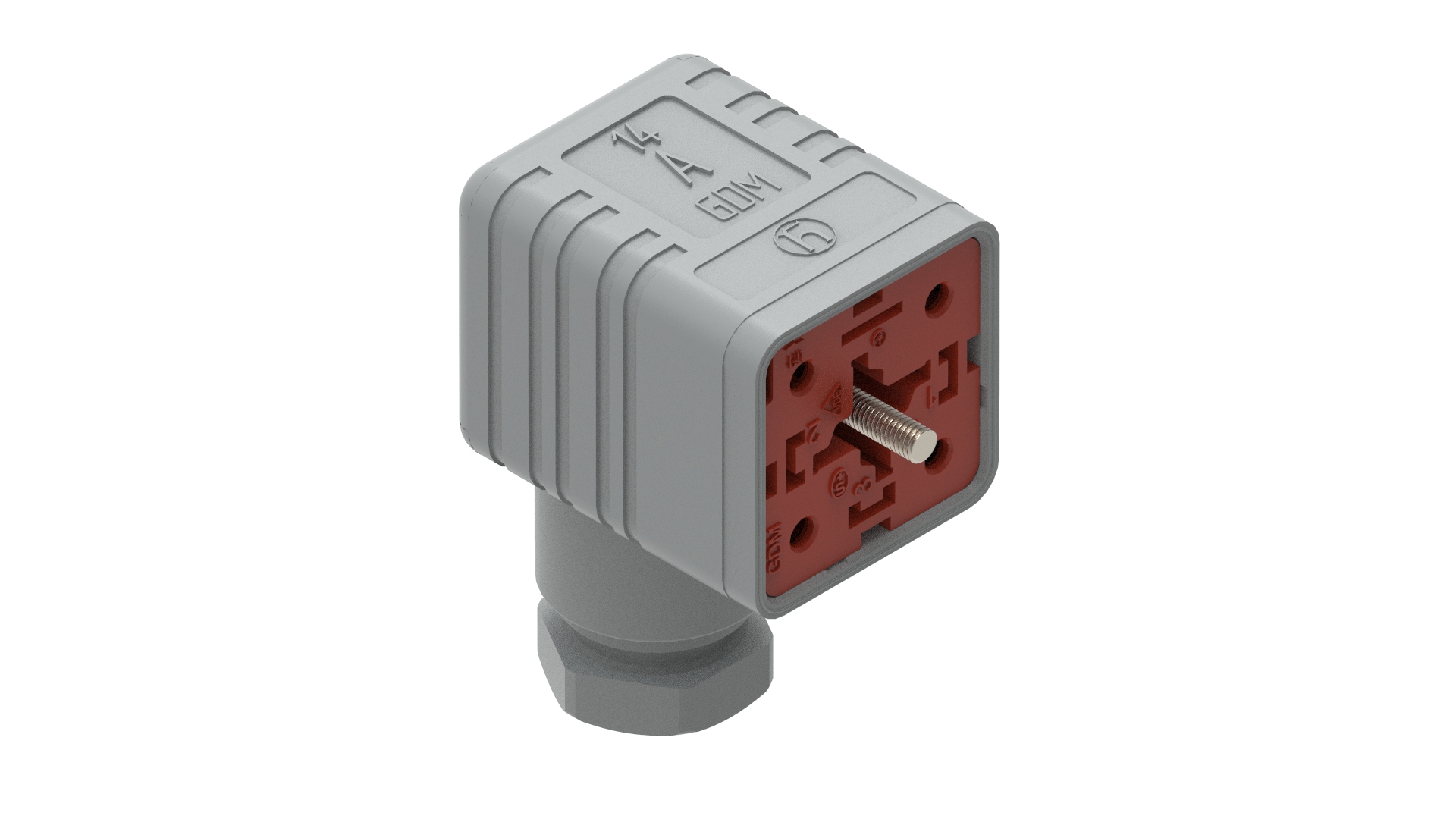

GDM 2011 J grey is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Central Screw | Gasket | Packaging | Order |
|---|---|---|---|---|---|
| 932106106 | GDM 2011 J grey | 1- SteelScrew, Combi Head | 0 - Sold Seperately | F - Collect packaging 200 pieces, assembled | Order online |
Specifications
Technical data
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | GDM Legacy |
| Connector Type | Field Attachable |
| Connector Sub Type | Form A |
| Side 1 Type of Contact/Gender | Socket Contacts / Female |
| Connector Design | Form A | Female | 3 Pole (2+PE) | 90° |
| Number of Pins | 2+PE (PE across cable outlet) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Central Screw, M 3 x 35 |
| Voltage Rating | 250 V |
| Rated Impulse Voltage | 4.0 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Screw terminal |
| Cable Gland | PG11 |
| Cross Section | 0.25 - 1.5 mm2 |
| Suitable Cables | Ø 6 - 9 mm |
| Ambient Temperature (Operation)* | - 40 °C to + 125 °C [ Connector ] - 30 °C to + 90 °C [ when mated with NBR gasket] - 15 °C to + 125 °C [ when mated with FKM gasket] - 40 °C to + 125 °C [ when mated with EPDM or MPQ gasket] |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 175301-803-A, ISO 4400 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Tin Alloy (Cu/Sn) |
| Contact Bearer Color | Brown |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Housing Color | Grey |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Cable Gland Gasket | Nitrile Butadiene Rubber (NBR) |
| Cable Gland Color | Grey |
| Flammability Class (Cable Gland) | UL 94 HB |
| Attachment Material | Steel Fastener (4.8 , Fe/Zn B) |
| Gasket Material | Sold separately |
Circuitry
| Protection Circuitry | No Protective Circuit |
|---|---|
| Protective Circuit | No Protective Circuit |
| Fastening Torque (Contact Screw) | (40-50) Ncm for conductor size 0.25 - 1.5 mm2; (30-40) Ncm for conductor size 0.34 mm2; (25-30) Ncm for conductor size 0.25 mm2 |
| Fastening Torque (Cable Gland) | (250-375) Ncm |
| Fastening Torque (Attachment) | (50-60) Ncm |
Approvals
| UL-File | E95522 |
|---|---|
| UL | UL 1977; UR |
| VDE | VDE-Reg.-Nr.: E349 |
| CSA | Yes |
| SEV | Yes |
Safety & Environmental Compliance
| REACH | Compliant |
|---|---|
| RoHS Compliant | Compliant |
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
