Obsolete | Alternative: GDM21F6-V21-10D

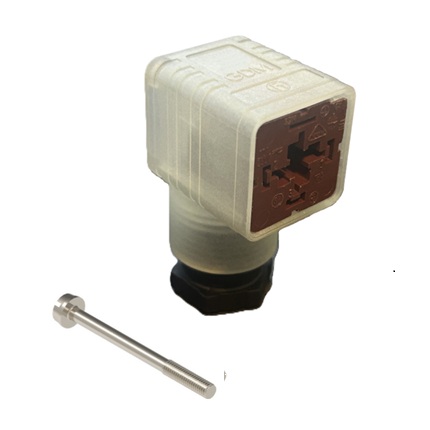

Form A, 18mm - Female Angled | #Contacts: 2+Ground (PE), Screw Type | Varistor (MOV) & Neon Lamp | 120 V / 10 A | Translucent Housing, Black PG9 Cable Gland | Included: Central Screw | Bulk Packaging
- Availability
- Global
- Status
- Obsolete
- Orderable items
- 1
Part numbers
GDM 2009 110 NEON V220 MA2A ME is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Central Screw | Gasket | Packaging | Replaced By | Order |
|---|---|---|---|---|---|---|
| 927801143 | DISCONTINUED R/B 934888035 | 1 - Central Screw Steel, combi head | 0 - Sold Separately | D - Collect packaging 50 pieces, assembled | ID: 934888035 Name: GDM21F6-V21-10D | Order online |
Specifications
Product Life Cycle
| Availability | Obsolete with alternative |
|---|---|
| Discontinuation Announcement Date | 2025-11-12 |
| Last Order Date | 2025-11-12 |
| Last Delivery Date | 2025-11-12 |
Technical data
| Product Family | Valve Connectors |
|---|---|
| Side 1 Product Sub Family | GDM Legacy |
| Connector Type | Field Attachable |
| Connector Sub Type | Form A |
| Side 1 Type of Contact/Gender | Socket Contacts / Female |
| Connector Design | Form A | Female | 2+PE | 90° |
| Number of Pins | 2+PE (PE across cable outlet) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Central Screw, M 3 x 35 |
| Replaced by | ID: 934888035 Name: GDM21F6-V21-10D |
| Voltage Rating | 120 V |
| Operating Voltage | 110 V AC/DC |
| Current Rating | 10 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Screw terminal |
| Cable Gland | PG9 |
| Thread Size | PG 9 |
| Cross Section | 0.25 - 1.5 mm2 |
| Suitable Cables | Ø 4.5 - 7.5 mm |
| Ambient Temperature (Operation)* | -25°C to +80°C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 175301-803-A, ISO 4400 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Tin Alloy (Cu/Sn) |
| Contact Bearer Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Contact Bearer Color | Brown |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Housing Color | Translucent |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | Glass-Fiber Reinforced Polyamide (PA GF) |
| Cable Gland Gasket | Nitrile Butadiene Rubber (NBR), 269604000 |
| Cable Gland Color | Black |
| Flammability Class (Cable Gland) | UL 94 HB |
| Attachment Material | Steel Fastener (4.8 , Fe/Zn B) |
| Gasket Material | Sold separately |
Circuitry
| Protection Circuitry | Varistor (MOV) & Neon Lamp |
|---|---|
| Function Indicator | Glow Lamp |
| Protective Circuit | Varistor (MOV) V220MA2A |
| Fastening Torque (Contact Screw) | (50-60) Ncm |
| Fastening Torque (Cable Gland) | (250-375) Ncm |
| Fastening Torque (Attachment) | (50-60) Ncm |
| Mount Type | central screw M 3x35 |
Safety & Environmental Compliance
| REACH | Compliant |
|---|---|
| RoHS Compliant | Compliant |
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product |
