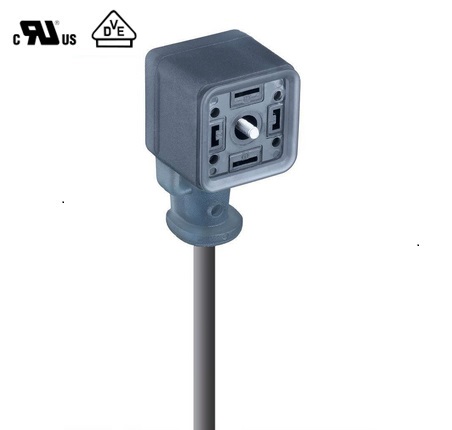

Product Number: GAN22LU-V21-603

Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 120 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus

Name: Belden GAN22LU-V21-603
Brand: Hirschmann
SKU: GAN22LU-V21-603

Ships from and sold by A5 IT.

Part numbers

GAN22LU-V21-603 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Replacement For	Order
934889117	GAN22LU-V21-6030200-1UC	2 m	ID: 934562051 Name: GAN-DRFE7X-FS0200C1-XC607-AD	Order online
934889118	GAN22LU-V21-6030500-1UC	5 m	ID: 934562052 Name: GAN-DRFE7X-FS0500C1-XC607-AC	Order online

Life Cycle	Active - Product is available
Availability	Active
Product Family	Valve Connectors
Side 1 Product Sub Family	GAN - cURus 2238
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	2+2 PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	120 V
Rated Impulse Voltage	4.0 kV (PCBA 2.0 kV)
Operating Voltage	110 V AC/DC
Current Rating	10 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.75 mm2
Ambient Temperature (Operation)*	- 25 °C - + 85 °C [Extended Temperature - 40 °C - + 105 °C with additional gasket accessory, 934887001]
Protection Degree / IP Rating**	IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Tin over Copper (Cu/Sn)
Contact Bearer Material	Glass-filled Polybutylene Terephthalate (PBT-GF)
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Grey translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Protection Circuitry	Varistor (MOV) & yellow LED
Function Indicator	Yellow LED
Protective Circuit	Varistor (MOV) & Function Indicator (LED)
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Number	603
Conductor Size	0.75 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 5 mio
Conductor Material	Cu
Cable Jacket Material	Polyurethane (PUR)
Cable Jacket Color	Grey
Cable Diameter D	Ø 5.8 mm [ 0.228 " ]
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	Ø 1.92 mm [ 0.08 " ]
Ambient Temperature (Fixed Installation)	- 40 °C to + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 20 °C to + 90 °C (UL: + 80 °C)
UL Cable Type	AWM: 20549 or 21198
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, CSA FT2; VDE 0472 Teil 804 Prüfart B
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; good chemical and oil resistance; Exclusion of PVC and Silicone; free of lacquer wetting disturbing substances; Coldness flexibility

RoHS Compliant	Yes

Halogenfree	Yes
Oil Resistance	IEC 60811-404 , VDE 0472; VDE 0250

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	1. Do not connect or disconnect under load. 2. Extended temperature range of -40°C performed by Belden in mated condition using EPDM gasket accessory and mating Hirschmann connector. Results may vary outside of these conditions such as 3rd party mating connector.
