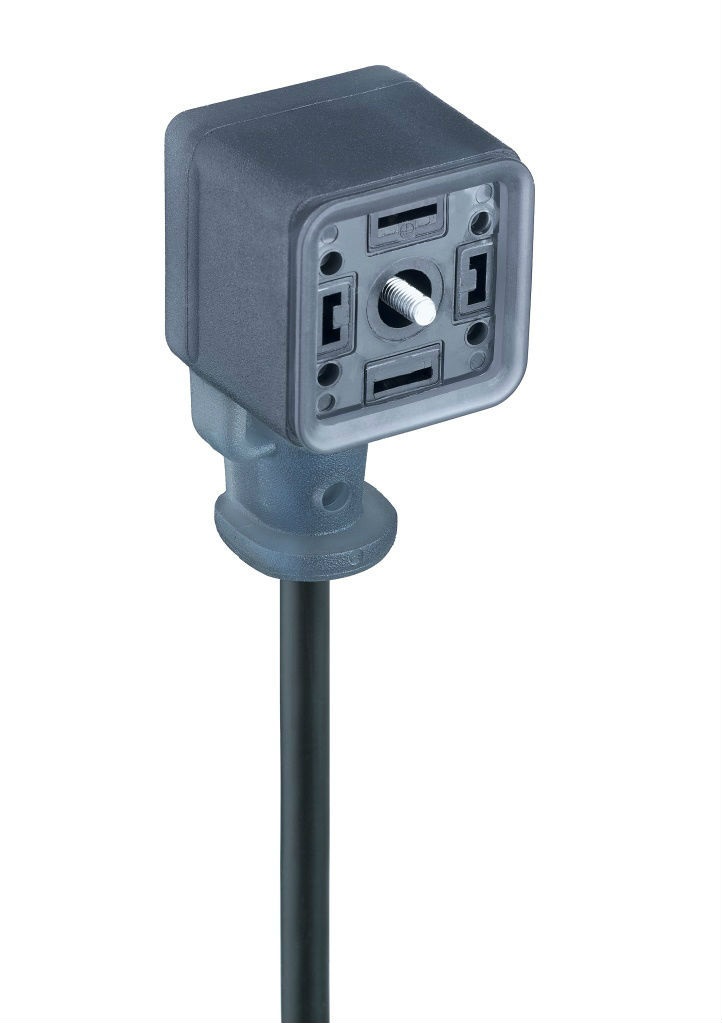

Product Number: GAN22LU-V21-212

Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 120 V | Cable: Black (PVC); 0.50 mm2; IEC

Form A - Singled-Ended Female Angled Cordset | #Contacts: 2+2 PE | Varistor (MOV) & yellow LED | 120 V / 6 A | Cable: Black PVC Jacket; 3x0.50 mm2 (20 AWG); IEC

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

GAN22LU-V21-212 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
7641	GAN22LU-V21-2120200-1UC	2 m	Order online
7642	GAN22LU-V21-2120500-1UC	5 m	Order online

Specifications

Product Life Cycle

Life Cycle	Active - Product is available
Availability	Active
Product Family	Valve Connectors
Side 1 Product Sub Family	GAN
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	2+2 PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	120 V
Rated Impulse Voltage	4.0 kV (PCBA 2.0 kV)
Operating Voltage	110 V AC/DC
Current Rating	6 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.50 mm2
Ambient Temperature (Operation)*	- 25 °C - + 85 °C [Extended Temperature - 40 °C - + 105 °C with additional gasket accessory, 934887001]
Protection Degree / IP Rating**	IP65, IP67*
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Face View

Pin 1	brown
Pin 2	blue
PE1	green-yellow
PE2	green-yellow

Materials

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Tin over Copper (Cu/Sn)
Contact Bearer Material	Glass-filled Polybutylene Terephthalate (PBT-GF)
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Grey translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Circuitry

Protection Circuitry	Varistor (MOV) & yellow LED
Function Indicator	Yellow LED
Protective Circuit	Varistor (MOV) & Function Indicator (LED)
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Data

Cable Number	212
Conductor Size	0.5 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor Material	Cu
Cable Jacket Material	Polyvinyl Chloride (PVC)
Cable Jacket Color	Black
Cable Diameter D	Ø 5.0 mm [ 0.197 " ]
Wire Insulation Material	Polyvinyl Chloride (PVC)
Insulated Wire Diameter	Ø 1.70 mm [ 0.07 " ]
Ambient Temperature (Fixed Installation)	- 40 °C to + 70 °C
Ambient Temperature (Flex Installation)	+ 5 °C to + 70 °C
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
Cable Characteristics	Free of lacquer wetting disturbing substances; Exclusion of silicone
