Discontinued – Recommended Replacement: RSRK 301-838

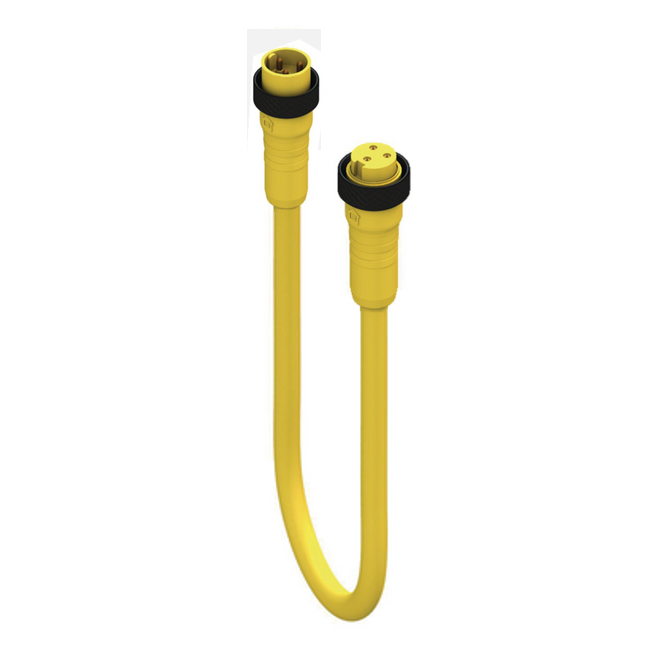

Double-Ended Cordset | 7/8"- Male Straight | #Contacts: 3 | 7/8"- Female Straight | #Contacts: 3 | 600 V / 10 A | Cable: TPE Yellow; 3x16 AWG; US | UL 2238; cURus
- Availability
- Global
- Status
- Discontinued
- Orderable items
- 6
Part numbers
RSRK 301-738 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 500003049 | DISCONTINUED | 3 ft | Order online |
| 500002718 | DISCONTINUED | 6 ft | Order online |
| 500002769 | DISCONTINUED | 12 ft | Order online |
| 500002810 | DISCONTINUED | 15 ft | Order online |
| 500002716 | DISCONTINUED | 20 ft | Order online |
| 500002717 | DISCONTINUED | 30 ft | Order online |
Specifications
Information
| Connector Type | Cordset, double ended |
|---|---|
| Shielding Type | Unshielded |
| Voltage Rating | 600 V |
| Current Rating | 10 A |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating | * Notice derating |
Face View Side 1
| Pin 1 | green |
|---|---|
| Pin 2 | black |
| Pin 3 | white |
Face View Side 2
| Pin 1 | green |
|---|---|
| Pin 2 | black |
| Pin 3 | white |
Technical Data Side 1
| Side 1 Product Sub Family | MINI 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Attachment Type | Female Thread, Coupling Nut |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | Copper Alloy (CuZn) |
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
| Fastening Torque (Attachment) | 7/8'': 70 Ncm, hand-tight |
Cable Data
| Cable Number | 738 |
|---|---|
| Conductor Size | 16 AWG |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 9.91 mm (0.390") |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 3.05 mm (0.120") |
| Ambient Temperature (Fixed Installation) | - 50 °C to +105 °C |
| Ambient Temperature (Flex Installation) | - 10°C to +105 °C |
| UL Cable Type | UL: SEOOW; CSA: STOOW |
| Flammability Class (Cable Jacket) | FT-2 |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: outdoor, oily, wet, or rough environments |
Technical Data Side 2
| Side 2 Product Sub Family | MINI 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | Molded | 7/8" Female | Straight |
| Attachment Type, Side 2 | Female Thread, Coupling Nut |
| Number of Pins, Side 2 | 3 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C to + 90°C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | Copper Alloy (CuZn) |
| Contact Plating, Side 2 | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2 | Yellow |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2 | Yellow |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | Aluminum (Al) |
| Attachment Plating, Side 2 | Anodized Black |
| Fastening Torque (Attachment), Side 2 | 7/8'': 70 Ncm, hand-tight |
| Note, Side 2 | Do not connect / disconnect under load. |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Yes |
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|---|
| Note Derating | * Notice derating |
