Obsolete | No Alternative

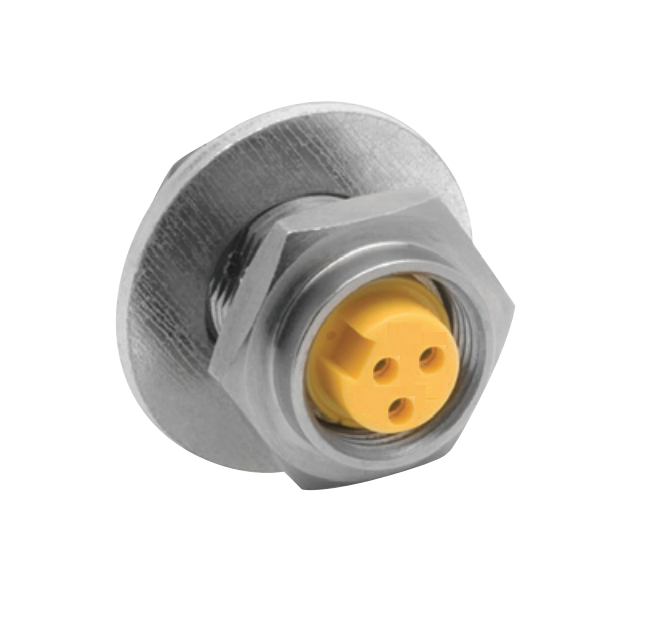

7/8" Power Receptacle: Male to Female, 3-pin, Panel Feed Through
- Availability
- Global
- Status
- Obsolete
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | 7/8" |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Male to Female |
| Connector Design | Front Mount, 7/8 - 16UNF-2A panel tap size |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Fixed, External Thread to Internal Thread |
| Voltage Rating | 600 V |
| Rated Voltage (UL) | 600 V |
| Current Rating | 8 A |
| Rated Current (UL)* | 8 A |
| Ambient Temperature (Operation)* | -25 °C to +90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Au over Ag |
| Contact Bearer Material | TPU |
| Contact Bearer Color | YE |
| Housing Material | Al, clear anodized |
| O-Ring Material | FKM, panel side |
| Attachment Type, Side 2 | 7/8", Zn, Zn Plated, Lock Nut |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice Derating |
|---|---|
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
| Note | Do not connect / disconnect under load |
Resources
Related lumberg automation circular connectors 7/8", 1", 1 1/8" series
0906 UAC 302
Obsolete | No Alternative
1 itemObsolete
0906 UAC 303
Obsolete | No Alternative
Obsolete
0906 UAC 304
Obsolete | No Alternative
1 itemObsolete

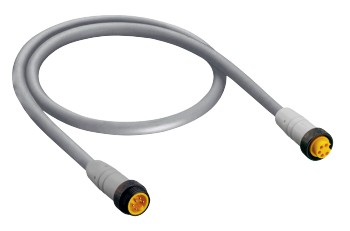

0935 613 301
