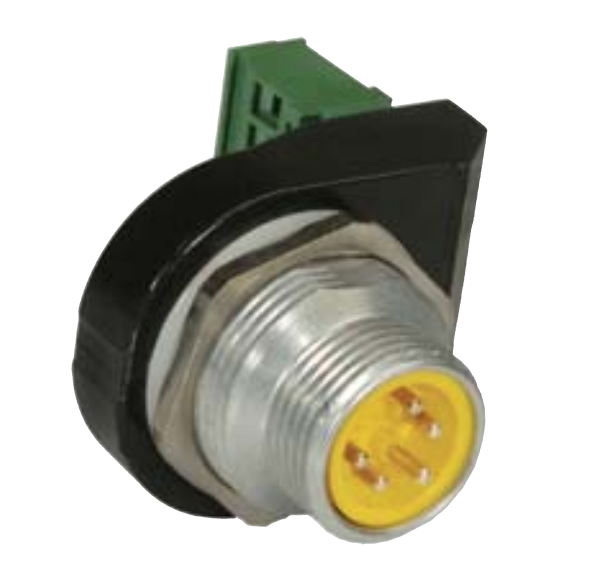

7/8" Power Receptacle: Male to Terminal Block, 5-pin, PG21
7/8" Power Receptacle: Male, straight, 5-pin, front mount, PG21 Panel Hole to Terminal Black 6 Pin, 300 V, 8 A
- Availability
- Global
- Status
- Active
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | 7/8" |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Front Mount, PG21 panel tap size |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Fixed, External Thread |
| Voltage Rating | 300 V |
| Rated Voltage (UL) | 300 V |
| Rated Current (UL)* | 5.6 A |
| Ambient Temperature (Operation)* | -25 °C to +90 °C |
Materials
| Side 1 Contact Plating | Au over Ag |
|---|---|
| Contact Bearer Material | TPU |
| Contact Bearer Color | YE |
| Housing Material | Al, clear anodized |
| O-Ring Material | TPU, WH |
| Attachment Type, Side 2 | PG21, Zn, Zn Plated, Lock Nut |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice Derating |
|---|---|
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
| Note | Recommended Mating Terminal Block: MC 100-508-06 180° wire exit; Do not connect / disconnect under load |
