Obsolete | Replacement: RS 1201M-S4678

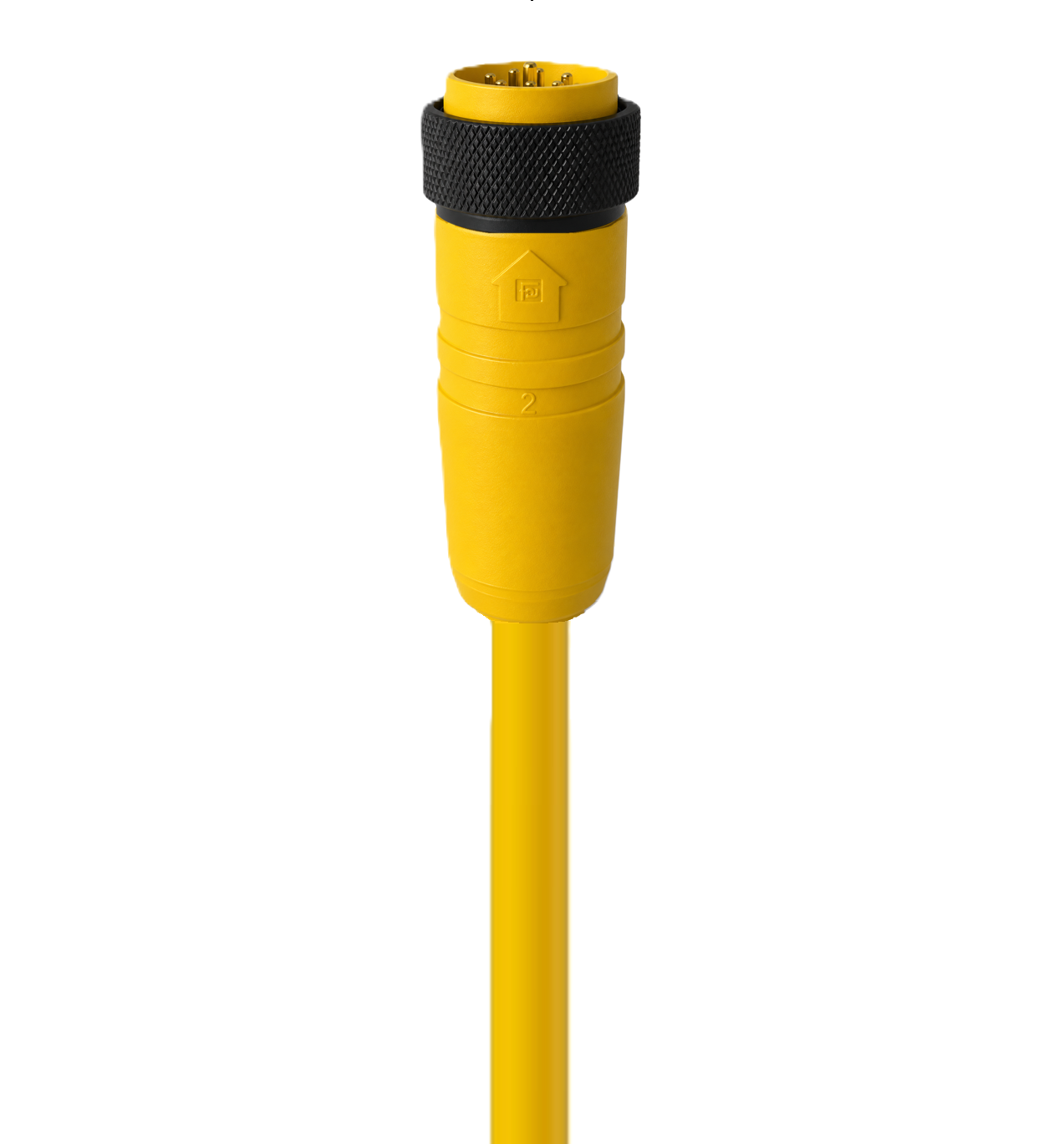

MINI C | Single-Ended Cordset | 1-1/8 Male Straight, 12-pin → Open End | Cable Yellow TPE; 16 AWG | 600 V / 5 A
- Availability
- Global
- Status
- Discontinued
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 1-1/8" |
| Connector Type | Cordset, single ended |
| Connector Sub Type | Single-ended; Male Cordset w/ Female Threaded Nut |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 1-1/8" Male | Straight |
| Number of Pins | 12 (11+PE) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Female Thread, Coupling Nut |
| Voltage Rating | 600 V |
| Rated Voltage (UL) | 600 V |
| Operating Voltage | 540 V AC/DC |
| Current Rating | 5 A |
| Rated Current (UL)* | Power 5 A | Signal 5 A |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
Face View
| Pin 1 | orange |
|---|---|
| Pin 2 | blue |
| Pin 3 | white/black |
| Pin 4 | red/black |
| Pin 5 | green/black |
| Pin 6 | orange/black |
| Pin 7 | blue/black |
| Pin 8 | black/white |
| Pin 9 | green |
| Pin 10 | red |
| Pin 11 | white |
| Pin 12 | black |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 724 |
|---|---|
| Conductor Size | 16 AWG |
| Number of Wires | 12 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 17.53 mm | 0.690" |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 3.05 mm | 0.120" |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 40 °C to + 105 °C |
| Ambient Temperature (Flex Installation) | - 5 °C to + 105 °C |
| Ambient Temperature (Fixed Installation short-term 100h) | - 40 °C to + 105 °C |
| Ambient Temperature (Drag Chain Inst) | - 5 °C to + 105 °C |
| UL Cable Type | UL: SEOOW; CSA: STOOW |
| Flammability Class (Cable Jacket) | FT1, VW-1 |
| Cable Characteristics | Flexibility: Good | Abrasion Resistance: Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and many solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact; tear; and flex) | Environmental Suitability: indoor / controlled environments |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| REACH | Compliant |
|---|---|
| RoHS Compliant | Yes |
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Yes |
| UV Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
