Product Number: RKF 50-677

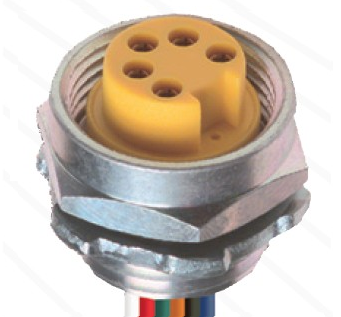

7/8" Power Receptacle: Female, straight, 5-pin, front mount, 600 V, 8 A, with 16 AWG pigtal wires

Name: Belden RKF 50-677
Brand: Lumberg Automation
SKU: RKF 50-677

7/8" Power Receptacle: Female, straight, 5-pin, front mount, 1/2" 14-NPT panel tap, 600 V (UL), 8 A (UL), 16 AWG, US Color Code

Ships from and sold by A5 IT.

Part numbers

RKF 50-677 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Product Family	Power Connector
Side 1 Product Sub Family	7/8"
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Female
Connector Design	Front Mount, 1/2-14 NPT panel tap size
Number of Pins	5
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Fixed, Internal Thread
Voltage Rating	600 V
Rated Voltage (UL)	600 V
Current Rating	8 A
Rated Current (UL)*	8 A
Ambient Temperature (Operation)*	-40 °C to +90 °C
Protection Degree / IP Rating**	IP65, IP67

UL-File	E315587
UL	UL recognized

RoHS Compliant	Yes

Note Derating	Notice Derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product
Note	Do not connect / disconnect under load
