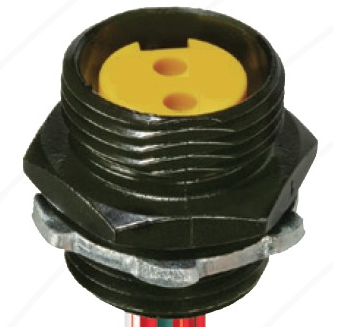

7/8" Power Receptacle: Female, straight, 2-pin, front mount, 600 V, 12 A, with 16 AWG pigtal wires
7/8" Power Receptacle: Female, straight, 2-pin, front mount, 1/2" 14-NPT panel tap, 600 V (UL), 12 A (UL), 16 AWG, US Color Code
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RKF 201-678 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 500000215 | RKF 201-678/1F | 1 ft | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | 7/8" |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Front Mount, 1/2-14 NPT panel tap size |
| Number of Pins | 2 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Fixed, External Thread |
| Voltage Rating | 600 V |
| Rated Voltage (UL) | 600 V |
| Current Rating | 12 A |
| Rated Current (UL)* | 12 A |
| Ambient Temperature (Operation)* | -40 °C to +90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Au over Ag |
| Contact Bearer Material | TPU |
| Contact Bearer Color | YE |
| Housing Material | Zn die cast with black E-Coating |
| O-Ring Material | FKM, panel side |
| Attachment Type, Side 2 | 1/2-14 NPT, Steel, Lock Nut |
Cable Data
| Conductor Size | 16 AWG |
|---|---|
| Number of Wires | 2 |
| Conductor Material | Cu |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | Ø 3.07 mm |
| UL Cable Type | 1015/1230 |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL recognized |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice Derating |
|---|---|
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
| Note | Do not connect / disconnect under load |
