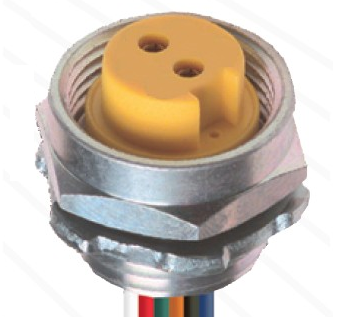

Product Number: RKF 20-603

7/8" Power Receptacle: Female, straight, 2-pin, front mount, 300 V, 12 A, with 18 AWG pigtal wires

Name: Belden RKF 20-603
Brand: Lumberg Automation
SKU: RKF 20-603

7/8" Power Receptacle: Female, straight, 2-pin, front mount, 1/2" 14-NPT panel tap, 300 V (UL), 12 A (UL), 18 AWG, IEC Color Code

Ships from and sold by A5 IT.

Part numbers

RKF 20-603 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
500000293	RKF 20-603/0.3M	0.3 m	Order online
500002217	RKF 20-603/1M	1 m	Order online

Product Family	Power Connector
Side 1 Product Sub Family	7/8"
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Female
Connector Design	Front Mount, 1/2-14 NPT panel tap size
Number of Pins	2
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Fixed, Internal Thread
Voltage Rating	300 V
Rated Voltage (UL)	300 V
Current Rating	12 A
Rated Current (UL)*	12 A
Ambient Temperature (Operation)*	-40 °C to +90 °C
Protection Degree / IP Rating**	IP65, IP67

UL-File	E315587
UL	UL recognized

RoHS Compliant	Yes

Note Derating	Notice Derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product
Note	Do not connect / disconnect under load
