Obsolete | Replacement: RK 100M-752

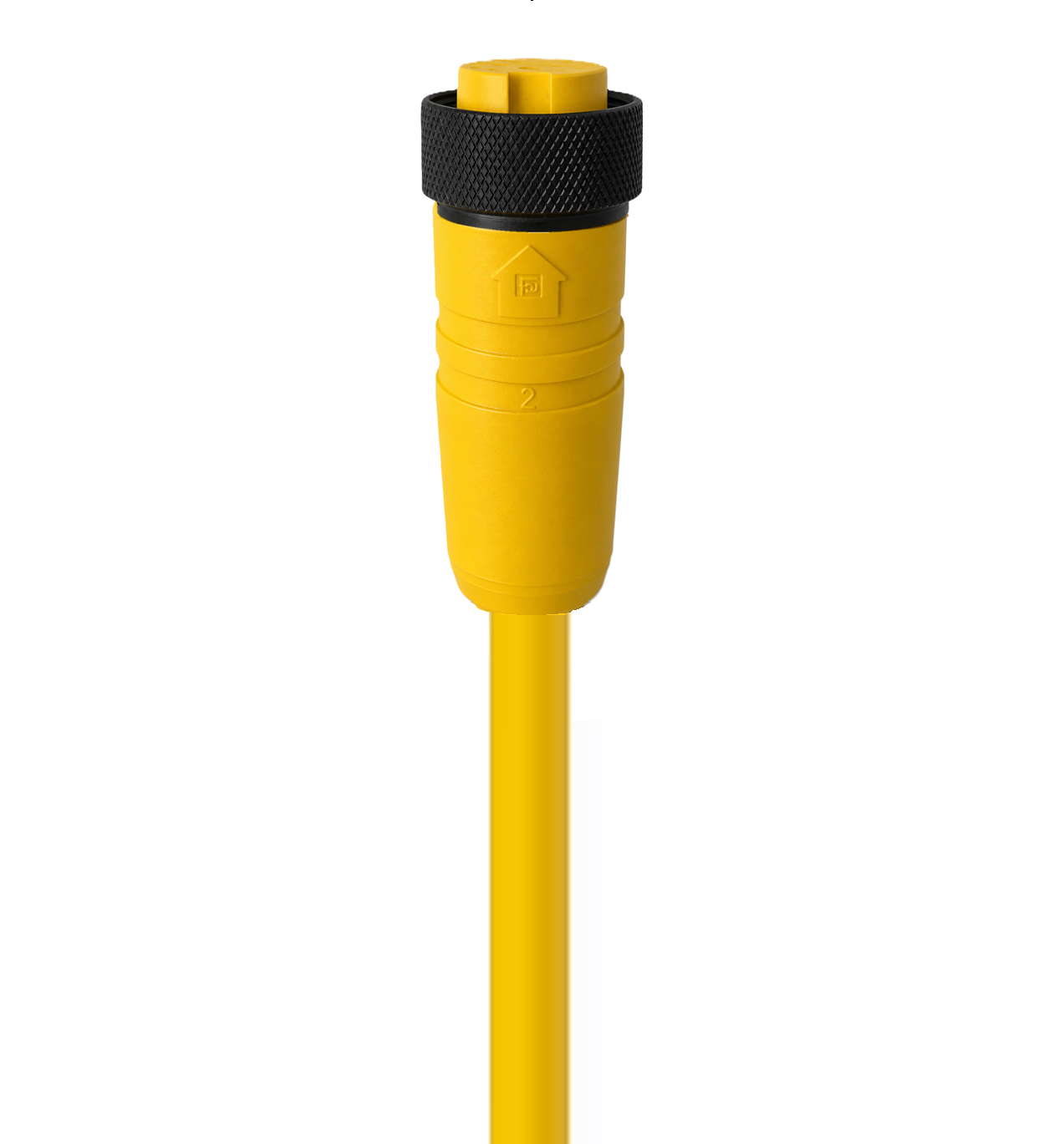

MINI C | Single-Ended Cordset | 1-1/8 Female Straight, 10-socket → Open End | Cable Yellow PUR; 18 AWG | 300 V / 7 A
- Availability
- Global
- Status
- Discontinued
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 1-1/8" |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Socket Contact / Female |
| Connector Design | Molded | 1-1/8" Female | Straight |
| Number of Pins | 10 (9+PE) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Female Thread, Coupling Nut |
| Voltage Rating | 300 V |
| Rated Voltage (UL) | 300 V |
| Operating Voltage | 300 V AC/DC |
| Current Rating | 7 A |
| Rated Current (UL)* | Power 7 A | Signal 7 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
Face View
| Pin 1 | orange |
|---|---|
| Pin 2 | blue |
| Pin 3 | white/black |
| Pin 4 | red/black |
| Pin 5 | green/black |
| Pin 6 | orange/black |
| Pin 7 | red |
| Pin 8 | green |
| Pin 9 | black |
| Pin 10 | white |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 652 |
|---|---|
| Conductor Size | 18 AWG |
| Number of Wires | 10 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Polyurethane (PUR) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 8.64 mm | 0.340” |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 1.73 mm | 0.068" |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 40 °C to + 80 °C |
| Ambient Temperature (Flex Installation) | - 5° C to + 80° C |
| Ambient Temperature (Fixed Installation short-term 100h) | - 40 °C to + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 5° C to + 80° C |
| UL Cable Type | AWM Style 20233 |
| Flammability Class (Cable Jacket) | VW-1, FT1 |
| Cable Characteristics | See downloads tab for details |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes |
|---|---|
| Oil Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
